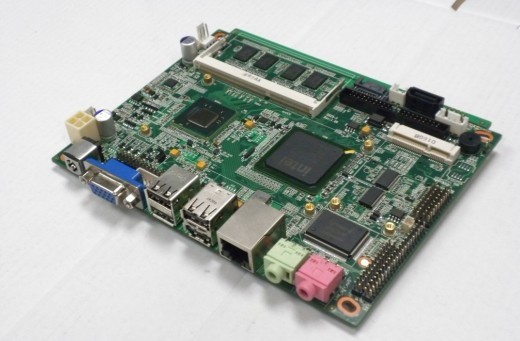

Huizhou Dayawan Fox Etech Limited >> FOX-D525-3.5 Intel Desktop Atom D525 Motherboard with High Config Multipurpose Computer Motherboard (FD525)

FOX-D525-3.5 Intel Desktop Atom D525 Motherboard with High Config Multipurpose Computer Motherboard (FD525)

FOX-D525-3.5 Intel Desktop Atom D525 Motherboard with High Config Multipurpose Computer Motherboard (FD525)
Supplier: Huizhou Dayawan Fox Etech Limited
Price: US $ 144/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: ITX-D525-3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lvds: Onboard 18 Bit Lvds Port
Integrated Graphics: Integrated Graphics
Main Chipset: Intel
Maximum Memory Capacity: 4G
Structure: Mini-ITX
Memory: DDR3
SATA Interface: SATA2.0
Printed Circuit Board: Six Layer
Main Board Structure: Integrated
Audio Effects: Not HiFi

Product Description

1. Intel Atom D525 Motherboard2. Intel Atom D525 + ICH8 Chipset3. Intel GMA 31504. Ultra-thin interface5.3.5inch 11.5*15cm

FOX-D525-3.5 Cheap Intel Desktop Atom D525 Motherboard with High Config Multipurpose Computer Motherboard

FOX- D525-3.5 Mini INTEL ATOM D525 Motherboard Specification
CPUINTEL  ATOM  D525(Dual  Core  1.8G,
512KB  Cache  Memory, 45NM  BGA)
RAM  Onboard  1333  DDR3  2GB
  With  SODIMM  Sockets, Supporting  4GB
ChipsetAtom  D525  +  ICH8  High-speed  chipset
Graphics  Card  TypIntel  GMA  3150
Audio  card   Realtek  ALC662  6  sound  channelhigh  fidelity
Network  Card1  *  Realtek  RTL8111EL  PCI-E
Expansion  Slot1  *  Mini  PCI-SATA
1  *  Mini  PCI-E  1*SIM
2*SATA    1X44P  IDE
Onboard  LVDS
Ports
Onboard  18  Bit  LVDS  Port
  Rear  Panel
  I/O  Ports
1  *12V-DC,
1  *  VGA,
4  *  USB  2.0/1.1,
1*1000M  RJ45  ,
2  *  Audio  I  /  O
  Built  In
  I/O  Ports
1*30  needles  LVDS,
6  *  RS232,
1  *  GPIO,
1*VGA,
1*LPT,
1  *  AUDIO
BIOS Award  8MB  DIP  Flash  ROM
Weight0.4KG
Power  SupplyDC  Power  Jack  +12V  DC-In
Power  Consumption+5V  0.5A, +12V  1.0A
Working  Temperature  -20° C-70° C  (-4° F-158° F)
Relative  Humidity(RH)10%-90%(non-condensing)
SizeMini  ITX  Form  Factor(11.5cm*15.5cm)  3.5inch


Huizhou Dayawan Fox Etech Limited build in 2006, specialize in producing and selling Thin Client, Mini PC, All-In-One Computer, Embedded Computer, Industrial Motherboard and etc.

Our company's operating philosophy is "more refined, more powerful. "We always adhere to this quality policy, "the quality get market opportunities, services to win customer satisfaction, innovation promote business progress, a truth-seeking creat companies brilliant. " Pursue the eternal customer principles "credibility first, quality first and service-oriented. "

We insist on Market-oriented, technology- fundamental. In recent years, our companies get big radiation increasing in the domestic business scope, won the praise of customers, with significant achievements in the industry. Building long-term customer relations with many Middle East\European and South American companies. Rely on technological progress, we change the pressure of competition as a driving force, whick make the company's new products, new processes emerge time by time.

With the idea of "quality, service, price, " and the spirit of fighting innovation, FOX Etech LIMITED continuous self- transcendence, our company become bigger and stronger, we will provide quality services to more customers. Your satisfaction is our pursuit! We look forward to working with you to become a long-term win-win partnership!
