Foxgolden High Brightness Stadium Project P20 LED Display

Name: Foxgolden High Brightness Stadium Project P20 LED Display
Brand: china-manufacturer-directory.com
SKU: 700932075
Availability: InStock
Rating: 4.6 (87 reviews)

Price:	US $ 600-1000/Square Meter
Trade Terms:	FOB
Min Order:	1/Square Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Manufacture and advantage ( our factory is specialised in stadium and Gym LED screen )

1. Key technology: 8 years experience LED lamp encapsulation
2. High quality: 5 years warranty with UL, CE, RoHS, ISO9001: 2000
3. After-sale service: Response customer within 1hour, solve problem within 24hours

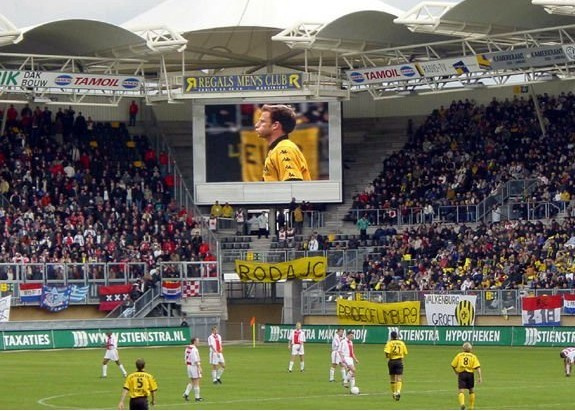

Football stadium perimeter LED screen display, composition ( 2R1G1B, ) football stadium, basketball stadium, skating venue etc.
Pixel pitch evalable for the same project in our factory ( P10-P12-P16-P20-P25-P31.25-P40 )

With different price please contact to get the lates price

Parameter

Module: P20 outdoor ful color		Pixel type	Optional Real pixel/Virtual pixel
Pixel pitch	20mm	refresh frequency	480HZ
Module Size	320mm ×160mm	Horizontal View Angel	> 120 degree
Module Pixel	16×8	Working Environment	Temp:-20°c~+60°c humidity: 10%-90%
lattice density	2500dots/sq.m	Working voltage	AC100~120V AC 220~240V
Pixel form( Optional)	2Red, 1Green, 1Blue	Life time	100000 hours Mini
The optimum viewing distance	20mm	Gray scale	Display colors ≥16.7M ;12 bit/color
Cabinet dimension	1280X960mm	Color display	1.07 billion
Cabinet resolution	64x48dots	Brightness	6500cd/sqm
Cabinet weight	60 kg	Blind LED lamp rate	<0.0001
Drive mode	Constant current; static scan	Waterproof Class	IP65
Max power consumption	850W/sqm	Warranty	2 Year

Prod Model:	FOX-DIP-P20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	320mm ×160mm
Module Pixel:	16×8
Lattice Density:	2500dots/Sqm
The Optimum Viewing Distance:	>=20m
Refresh Frequency:	480Hz
Horizontal View Angel:	> 120 Degree
Working Environment:	Temp:-20°c~+60°c Humidity: 10%-90%
Max Power Consumption:	850W/Sqm
Brightness:	6500CD/Sqm
Life Time:	100000 Hours Mini
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	2R, 1G, 1B
Certification:	UL
Pixel Pitch:	20mm
Display Function:	Video Display
Scanning Mode:	1/8 Scan
Pixel Density:	1024 dot / m²
Average Power Consumption:	350W / m²
Application:	Stadium

Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
