Fp-8000q 800W Digital Switching Power Amplifier/Extreme Audio Power Amplifier

Name: Fp-8000q 800W Digital Switching Power Amplifier/Extreme Audio Power Amplifier
Brand: china-manufacturer-directory.com
SKU: 756341485
Availability: InStock
Rating: 4.6 (114 reviews)

Supplier:	Guangzhou YunQiang Electronics Co., Ltd.
Price:	US $ 390-530/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FP-8000Q
Markets:	North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	12kg
Circuit:	Switch Power Supply Amplifier
Circuit Protection:	Fully and Perfect
Fp Series:	Fp10000q Amplifier
Type:	Professional Amplifier
Usage:	Club, Stage, Shool, Church
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Output Number:	4
Element Number:	Push-Pull Amplifier
Sound Channel:	4.0
Voltage:	90V~240V
Conductive Mode:	Td

Product Description

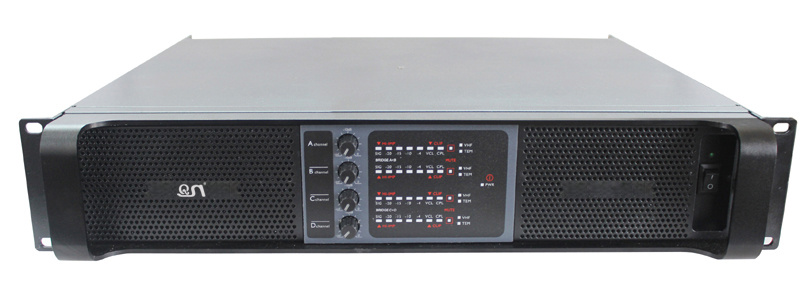

FP-8000Q 800W Digital switching power amplifier/Extreme audio power amplifier

1pc sample accepted

welcome OEM, warranty 2 year

We have newest CE,ROHS,FCC for FP-10000Q and FP-8000Q

800W 4 Channel Stereo Switch Power Supply Amplifier

Channel number: 4CH

8Ohm stereo, 800W

4Ohm stereo, 1400W

2Ohm stereo, 1600W

8Ohm bridge: 2800W

4Ohm bridge: 3200W

Gain: 35dB VPL:101V

THD+N: <0.1%

THD: <0.05%

S/N ratio: >112dB

Crossover: >70dB

Frequency: 6.8Hz-34KHz

Input impedance: 20Kohm

Gain selecrable: 23,26,32,35,38,41,44dB

Input connector: XLR

Output connector: Neutrik speakon

output bridge modeL A+B-CH: A is input source, A+B, C+D -CH: A,C is input source

Cooling: 2 fans, front to rear airflow, temperature control

Size: 483*88*398mm
Net weight:12Kg

Gross weight: 15kg

Back panel:

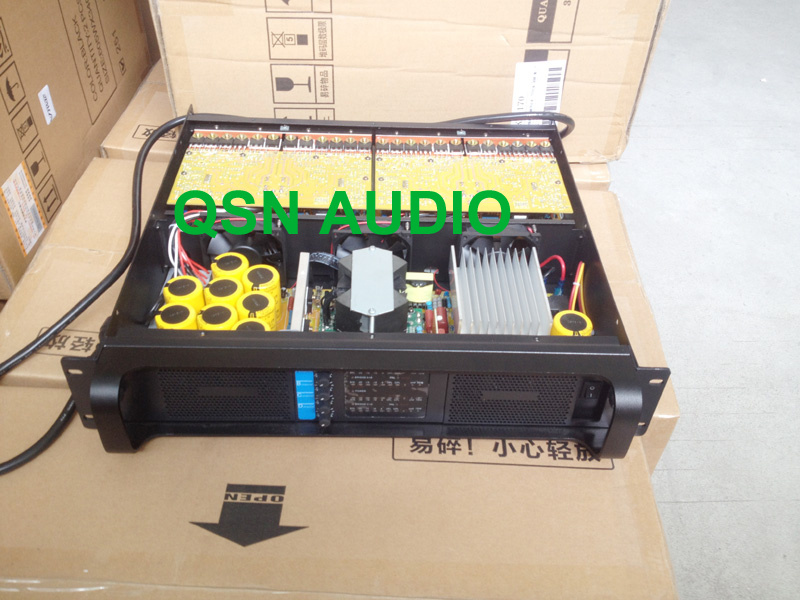

Inside Picture:

MODEL	FP-10000Q	FP-8000Q
Output Power	20-20kHz, 1W with 1 khz	20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)	1350WX4	800WX4
4ΩStereo Power(RMS)	2100WX4	1400WX4
2ΩStereo Power(RMS)	2500WX4	1600WX4
8ΩBridged Power(RMS)	4200WX2	2800WX2
4ΩBridged Power(RMS)	5000WX2	3200WX4
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM,AutoRamp,short cricuit,DC voltage,turn-on/off transient,current,inrush
Operating voltage	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	560×180×500mm
Net weight(kg)	12	12
Gross weight(kg)	15	15

Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,

The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.

Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.

To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.

Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.

Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.

And we have newest CE, FCC, RoHS, report which is on March, 2015.
