Product Specifications
| Prod Model: |
FR-90 Two Roller Cold Rolling Machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable For: |
Copper,Aluminum and Alloy Pipe |
| Raw Diameter: |
30-90mm |
| Raw Thickness: |
2.5-12mm |
| Range Of Length: |
3-16m |
| Finished Diameter: |
25-63mm |
| Finished Thickness: |
1-8mm |
| Effective Traveling: |
904mm |
| Traveling Times: |
65-99piece/Min |
| Range Of Sending Length: |
3-12m |
| Main Motor Power: |
160kw |
Product Description

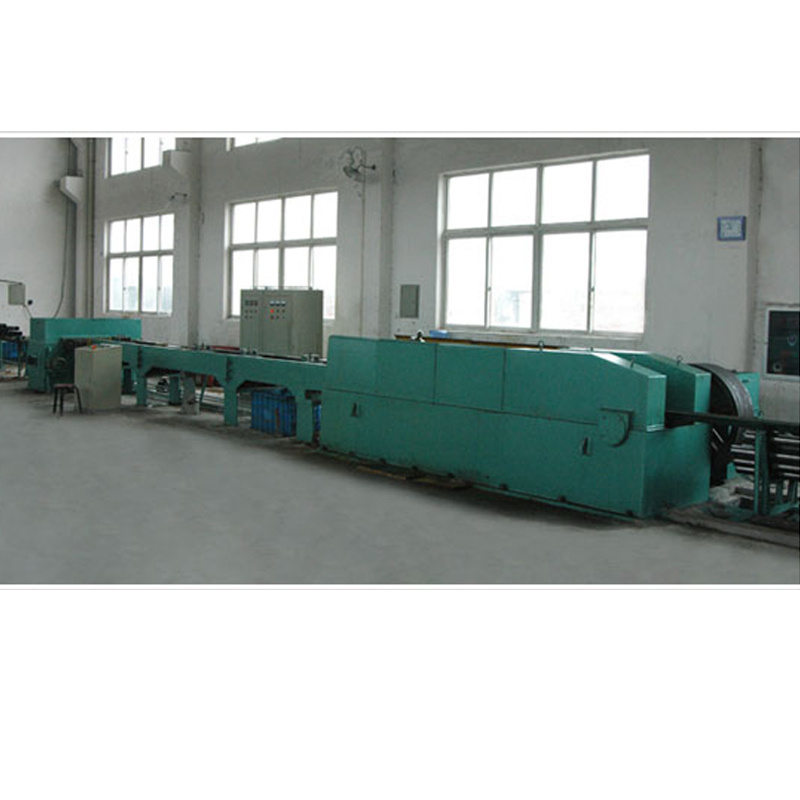

FR-90 Two Roller Cold Rolling Machine
FR-90 Two Roller Cold Rolling Machine is designed and developed by our company based on our many-year experiences of production and exploitation.
Our company is Fang-Rong Precision Machine Industry Co., Ltd. Fang-Rong Precision Machine Industry Co., Ltd. Is founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines and received a number of patents. Now, Fang Rong is developing and selling various machines.
Features:
Cold Rolling Machine suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
In the normal condition of the machine, cold rolling machine suitable for the ferrous metal wire and non-ferrous wire, it can rolling the steel, hexagonal and other shaped wire, which is the professional equipment for rolling (Bronze. Stainless steel. Iron. Silver. Aluminum)pipe.
1. FR-90 Two Roller Cold Rolling Machine for pipe
2. Stable performance, precision
3. Practical value, high quality
|
Suitable for |
Copper,aluminum and alloy pipe |
|
Raw diameter |
30-90mm |
|
Raw thickness |
2.5-12mm |
|
Range of length |
3-16m |
|
Finished diameter |
25-63mm |
|
Finished thickness |
1-8mm |
|
Effective traveling |
904mm |
|
Traveling times |
65-99piece/min |
|
Range of sending length |
3-12m |
|
Pipe rotation angle |
42°±5° |
|
Roller diameter |
370mm |
|
Roller rotation angle |
308.46° |
|
Main motor power |
160KW |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
