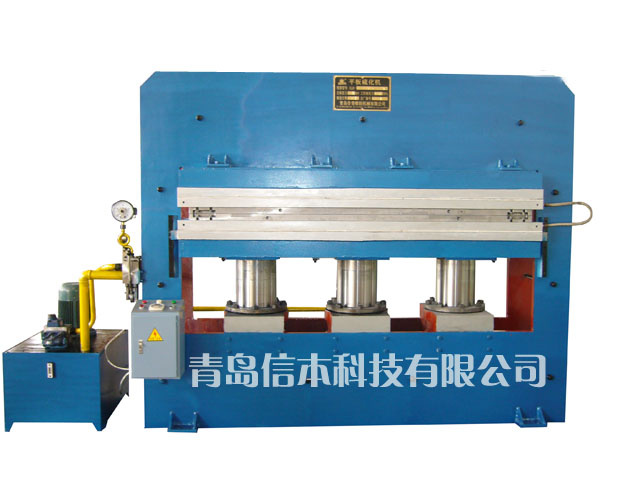

Frame Type Plate Vulcanizer (XLB-DQ SERIES)
Product Specifications
| Prod Model: |
XLB-DQ SERIES |
Product Description
Features:
The machine applies to vulcanize all kinds of rubber and plastic model products as well as non-model products.
The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends to make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate, platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.
Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder by control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.
Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.
The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.
| The main technical parameter: |
| Model | | XLB-DQ | XLB-DQ | XLB-DQ | XLB-DQ | XLB-DQ | XLB-DQ |
| Total pressure(KN) | | 3.15 | 5.6 | 7.5 | 10 | 18 | 28 |
| Plate size(mm) | | 1200X1200 | 1300X2000 | 1200X2500 | 1500X2000 | 2000X3000 | 1400X5700 |
| Plate distance(mm) | | 200 | 400 | 400 | 400 | 400 | 400 |
| Working layer number | | 2 | 1 | 1 | 1 | 1 | 1 |
| Piston stroke(mm) | | 400 | 400 | 400 | 400 | 400 | 400 |
| Plate pressure(Mpa/m2) | | 22 | 21.5 | 25 | 33.5 | 30 | 35 |
| Main motor power(kw) | | 3 | 8 | 9.5 | 11 | 26 | 55 |
| Outside dimension(mm) | L | 1685 | 2000 | 2560 | 2810 | 2900 | 5700 |
| W | 1320 | 1860 | 1700 | 1550 | 3200 | 2450 |
| H | 2450 | 2500 | 2780 | 3325 | 2860 | 4150 |
| Weight(kg) | | 9500 | 17000 | 20000 | 24000 | 66000 | 110000 |
Qingdao Xinben Technology Co., Ltd., is a modern high-tech enterprise which is integrated with development & research, design, manufacturing, selling, and service. Established in 1986 and developed from Qingdao Eighth Rubber Factory, the company has developed into a private enterprise with certain scale and ability (covering area 20000 square meters, building area 12000 square meters) after years of accumulation and development. The company owns the high-quality professional working team, various high precision large CNC manufacturing equipments and perfect product testing system, etc.
To develop high-tech products, we have cooperated with Beijing Institute of Machinery, Qingdao Science & Technology University, Northeast Electric Power Institute and some experts of rubber machinery industry in Taiwan. High-tech information, computer network, advanced software can make the enterprise's designed ability of science and technology more quick and complete.
The main produces are rubber machine, including plate vulcanizing machine, opened mixing mill, internal mixer, plate vulcanizing unit, rubber cutter, rubber crusher, rubber and plastic foam forming machine, pedrail splicing machine, etc., the electric power products include cold shrinkable cable component, cable connector, continental(European) front and back joint, integrated bushing, zinc oxide arrester, various silicon rubber composite insulator, insulated sheaths for transformer, etc.
The company has a strong technical force, advanced technical equipments, complete testing means and scientific quality management. Passed ISO9001: 2000 Quality System Certificate. The products are sold to all over China as well as exported to countries and regions including Southeast Asia, Africa, Latin America, Middle East, Russia, India, etc.
Our company always sticks to the business concept of "basing on science & technology, quality first, good faith highest, keep improving", and observe the tenet of "specialization, good faith, service, innovation, quality and benefit". We'd like to sincerely provide high-quality products and service to clients both at home and overseas for mutual benefit. We warmly welcome friends all over the world to come and visit our company or contact us to negotiate business. Let us cooperate and create the brilliant future together!
