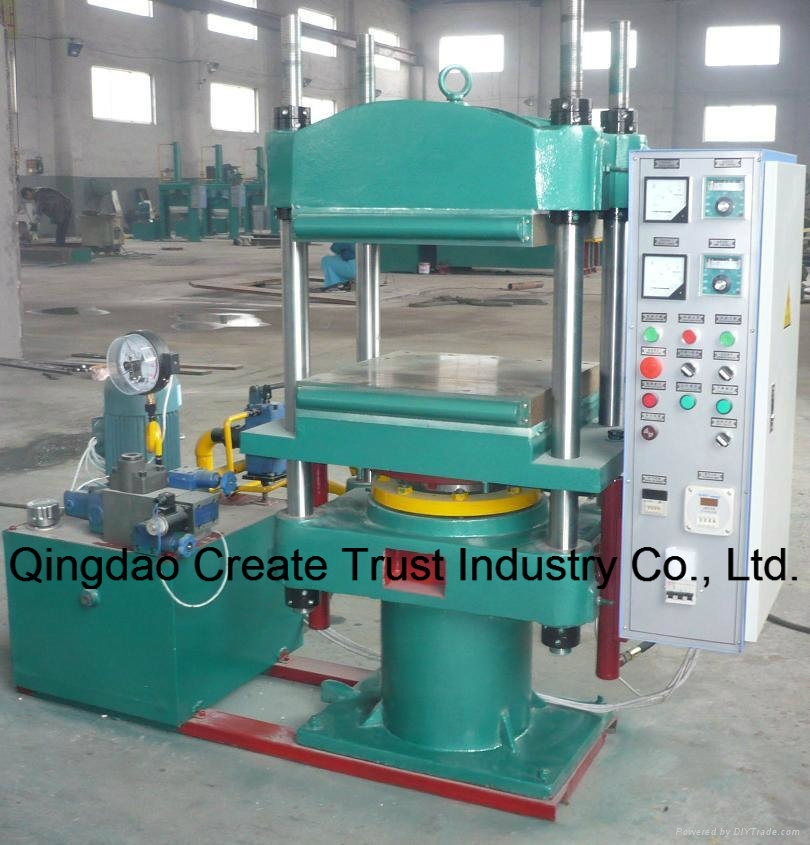

Frame Vulcanizing Machine, Frame Vulcanizing Press
Product Specifications
| Prod Model: |
XLB350X350X2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature: |
0-300 |
| Advantage1: |
High Working Pressure |
| Advantage2: |
High Producing Efficiency |
Product Description
frame vulcanizing machine , frame vulcanizing press
features:
1. This series product applies to press techniques of various plastic materials, such as punching, bending, crimping, etc. Besides, it can also be used for amendment, pushing mounting, forming of grinding wheel, press forming of plastic, rubber and powder products.
2. This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession. Heats up the way to uses the electric heating(steam or oil heats up), the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
3. The electrical control uses the advanced PLC control technology, may realize automati-cally controls when, automatically operates the mold, is automatic warm controls and so on the craft. And may realize automatically deflates. Thus guarantee product quality and high efficiency.
4. May have custom-made each kind of four columns, the frame type, the work table emigration type, the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
about our factory: Qingdao Create Trust Industry Co., Ltd. is one of the improtant backbone enterprises in rubber machchinery industry in China and is one member of Shandong machinery union company.
| Model | XLB350x350x2 | XLB400X400X2 | XLB500x500x2 | XLB600x600x2/4 | XLB750x850x2 | XLB1000x1000x1/2 |
| Nominal mold clamping force(MN) | 0.25 | 0.5 | 0.8 | 1.0 | 1.6 | 2.5 |
| Space between hot plate(mm) | 125 | 125 | 125 | 125 | 125 | 200 |
| Working lager of hot plate | 2 | 2 | 2 | 2/4 | 2 | 2 |
| Unit area pressure of hot plate(Mpa) | 2.04 | 3.13 | 2.52 | 2.78 | 2.51 | 2.5 |
| Plunger stroke(mm) | 250 | 250 | 250 | 250/500 | 250 | 400 |
| Heating mode | electric/steam | electric/steam | electric/steam | electric/steam | electric/steam | electric/steam |
| Main motor power(kw) | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 5.5 |
| Overall dimensions(mm) | 1450x400x1350 | 1600x400x1440 | 1450x690x1818 | 1880x780x1660 | 2100x1010x1900 | 2400x960x2500 |
| Mzchine weight(kg) | 1200 | 1500 | 1700 | 2500/3100 | 3560/4300 | 8300 |
| Structural form | post type | post type | post type | post type | post/box type | box type |
Qingdao Create Trust Industry Co., Ltd. is established in 1990, is a modern science and technology enterprises which is committed to the R&D, design, production, sale of rubber machinery. After more than two decades of development and accumulation, we are now emerged as a dedicated manufacturer of rubber machinery in China.
Our product catalogue offers a wide range of machinery, such as rubber machinery, tyre machinery, as well as casting machinery below:
Rubber mixing equipment: Open mixing mill, Banbury mixer, Rubber kneader, Rubber refiner, Rubber cracker, Rubber bale cutter, Double conical-screw extruder and sheeters, etc.
Vulcanizing press: Press vulcanizer, Tyre vulcanizer, Tube press, Vacuum vulcanizing machine, vulcanization vessel (autoclave), belt splicing machine ect.
Extrusion equipment: Cold feed extruder, Hot feeding extruder, Rubber strainer, etc.
Calendering equipment: Three roll calender, four-roll calender, as well as auxiliary equipment.
Cooling equipment: Batch off cooling machine
Other equipment: Rubber injection molding machine, Rubber preformer, etc.
Technical of production line:
Reclaimed rubber production line, Waste tyre recycling production line, Rubber tile production line, EVA foaming production line, EVA recycling granulation production line, Rubber hose extrusion line, Tire retreading machine, Waste tire pyrolysis equipment, rubber sealing strip extrusion line, and so on.
Also we has implemented production process in conformance with ISO9001: 2008 Quality Management System Certification and CE. Owing independent import and export right, we export our equipment to Russia, Turkey, Southeast Asia, South America, Europe, the Middle East, as well as other countries and regions. Our products enjoy high reputation in these markets and you can purchase them with a peace of mind.
Our company adheres strictly to the business philosophy of sincerity orientation, quality first, timely service, and continuous innovation. We look forward to building a brighter tomorrow together with our extensive customers!
