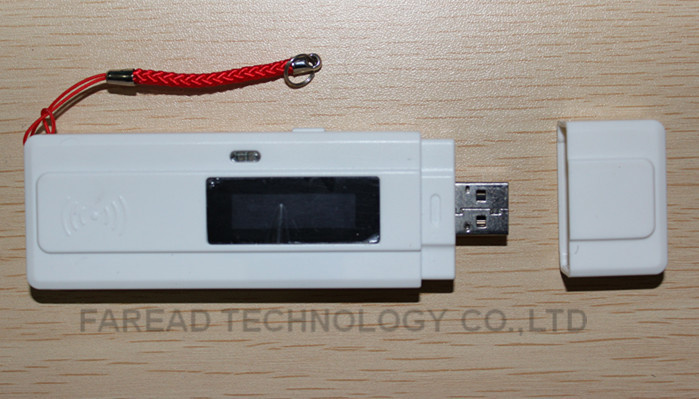

Frd5600 Animal Handheld Reader, Mini Reader Pet Scanner Livestock Reader

Product Specifications

Prod Model:	FRD5600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Identification

Product Description

Specifications:
The Pocket Reader is the smaller RFID reader known today. In spite of its very small size the reading range is equal or even greater than other bigger models and more expensive.
This product is mainly used for animal tag ID microchip. It can read any work based on ISO 11784 /85 protocol animals tags especially the FDX-B and FDX-A.
Features:
1. The smaller size, portable to carry
2. Easy to operate, USB charging
3. LCD indication, blue LED display
4. Support ISO11784 / 11785 FDX-B and FDX-A

Product Code	FRD5600
Frequency	134.2KHz
Supported Chips	FDX-B (ISO11784/85), FDX-A (Destron, AVID, AEG)
Reading Distance	≥7CM
Dimension	109x34x14mm
LCD size	1.04",128x32pix
Read indication	Beep\Blue LED\LCD indication
Charging indication	Red LED in charging. Green LED when complete.
Charging current	<200mA, @5VDC on USB connector
Work Current	<60mA
IDL Current	<20mA
Power-down Current	<10uA
Power	Li-ion, 3.7VDC, 170mAH
