Product Specifications
| Prod Model: |
FreePIPE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Professional Software |
| Language Version: |
English |
| OS: |
Windows 98,2000,2003,XP,Vista,Win7 |
| Standard: |
Offline Edition |
| Application: |
Pipe Cutting |
Product Description
Description of Software Functions and Features
FreePIPE is a general software of calculating intersecting lines, nesting and cutting of pipe, which is powerful and
easy-to-use, etc. It is applicable for those companies that are engaged in manufacturing pipe truss or fluid pipe.
After the user inputs some basic parameters, the software will automatically calculate the cutting line according to
what the user inputs. The unique function of automatic nesting of pipe parts will make you cut the whole piece of
steel pipe material into several pieces of steel pipe at one time, during which no manual operation is needed. It is
as easy to cut steel pipe as it is to cut steel plate. Besides, the automatic nesting of pipe by computer fulfils the
optimization of pipe material usage, which helps to save material cost, greatly reduce cutting time and improve
the efficiency of cutting machine.

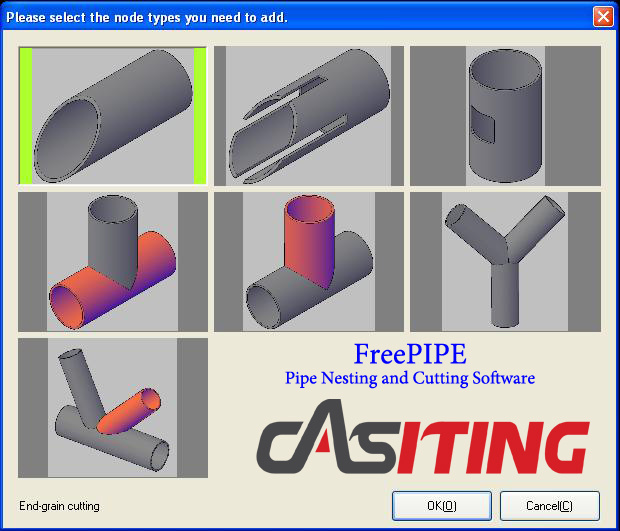

The software now can be used to generate and cut the following types of pipe cutting node:
1. Vertical or aslant cutting of the pipe.
2. Slotting at the end of the pipe. According to the parameters you have set, it can be slotted at the end of the
pipe in the width and length as you required.
3. Holes in various shapes on the pipe. As long as you can draw the holes in the shape you want with
CAD(For the time being, only those of straight line, arc and circle are supported), the software will
project the shape you have drawn to the pipe wall, and hole in the same shape.
4. Various holes of intersecting lines used to generate branch pipes on the main pipe. The software can
generate automatically the holes of intersecting lines used to generate branch pipes on the main pipe
according to the relative position of branch pipes and main pipe.
5. The generation of intersecting lines at the ends of branch pipes where the branch pipes intersect with the
main pipe. The location and shape of intersecting lines at the ends of branch pipes can be generated
automatically according to the relative position of branch pipes and main pipe.
6. The shape at the end where the three pipes intersect. The shape at the end where the three pipes intersect
can be generated according to the basic parameters input.
7. The combined intersecting lines between branch pipes and main pipe or between branch pipes and other
branch pipes when there are two or more branch pipes on the main pipe. The combined intersecting lines
can be generated automatically according to the simple and visualized parameters the user inputs, which
simplify complicated problems. It conforms to the common sense to set and adjust various intersections
of three pipes on the same interface through several parameters, and the users need no profound
knowledge of three-dimensional angle calculating, which is easy and swift to operate. The perfect
function of bevel definition can define most of the bevels, and bring the given bevel into G code when the
code is being generated. There are three kinds of code that can be defined by the users: dynamic bevels of
8 points, full dynamic bevels and fixed bevels, which can meet the requirements of the majority of
customers.
