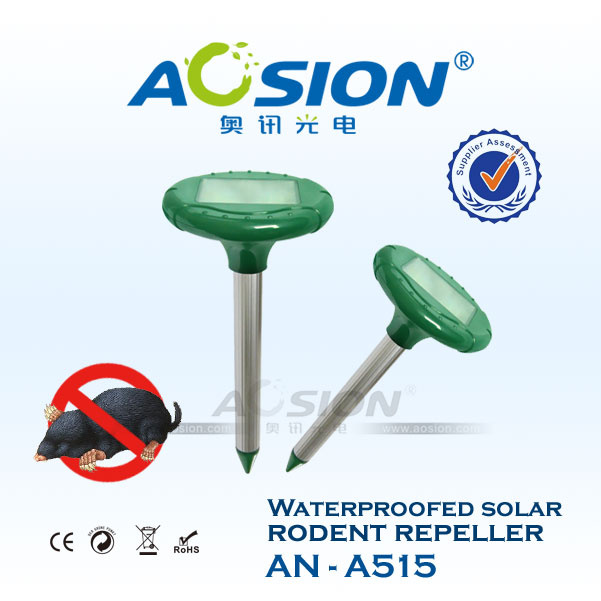

Frequency Conversion Solar Mole Repeller

Product Specifications

Prod Model:	AN-A515
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	400-1000Hz
Design Patent:	Zl 201030105924.0
Special:	Replace Battery
Certificate:	CE&RoHS
Material:	ABS+ Aluminum
Working Range:	625 Sq.M.
Function Patent:	Zl 201020119140.8
Warranty:	2-5 Years
Color:	Green
Delivery Time:	20 Days
Certification:	RoHS
Applying Space:	>100m²
Type:	Infrasonic Wave
Pest Type:	Moths

Product Description

Frequency conversion solar mole repeller

Design patent: ZL 201030105924.0
Function patent: ZL 201020119140.8

How it works:
A device powered by solar energy, making use of sound waves to repel harmful rodents(moles, voles, etc. )
By emitting sound waves, the Frequency Conversion Solar Mole Repeller drives away underground rodents very effectively. The sound waves will irritate them, simulate danger, and repel them away from the irradiated area. They work as list:
First two days, it will sound like "Di" long for 3~5 seconds, interval 50 seconds or so
Second two days, it will sound like "Di Di Di" in 3~5 seconds, interval 50 seconds or so,
Third two days, it will sound like "Di Di Di Di Di" in 3~5 seconds, interval 50 seconds or so.
From the seventh day will copy from the first two days and circulate. Work power can insolation one day then continue works 3 cloudy days). The Solar Mole Repeller is effective within an area of 650 square meters.
The Solar Mole Repeller radiates in all directions. Avoid any obstruction and let the sound waves be emitted freely. To make the best use of the product, we strongly recommend an installation of 2 devices at every 30 meters for ground areas frequented by rodents.
The Solar Mole Repeller's power is supplied by a rechargeable accumulator collecting power for operation at night. When the accumulator is fully charged, it can supply enough power for the dark hours, thus ensuring a continuous around-the-clock operation.

Installation:
1. Connect the cable with socket at head, tighten can not depart easily (refer to photo 1)
2. Fix the bar and the top together.
3. Insert the bar into the earth, be careful not to use excessive force lest the device be damaged, or bump into any obstruction.

Technical update:
1. The device use computerized inching control technology, it is combine the signal output with DC charge function. So the socket (refer to above photo) is not only signal output socket, but also is external DC charger for consecutive rainy days' use. This new technology apply is more convenient to customers operate and bring the additional value to this models.
2. It had a additional battery cassette, you can replace the battery easily to lengthen product life, also had the waterproofed switch, you could turn on/off device at any time. (refer to photo 1)

Warning:
1. The base of the top shall be exposed to the outside, according to the terrain varies ensure the water does not exceed the save line (note illustration).
2. Before first use, you'd better insolation the solar panel for two days, then connect the cable 2 and insert into the earth, so you will have better effective.

Please note:
First, check the ground surface before using it. Frozen soil, irrigated or waterlogged ground is not suitable. Dig a hole into solid earth to place the device. The density of the soil will greatly affect the effectiveness of the device. The more solid the earth, the better the device will be functioning.
No hammer should be used in installation.
No excessive force should be applied lest the device be damaged.
