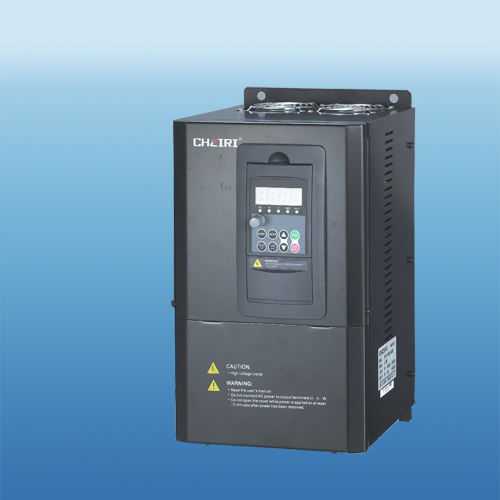

Frequency Inverter 0.75kw~400kw (ZVF9V-G)

Product Specifications

Prod Model:	ZVF9V-G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Range:	0.75kw~400kw
Color:	Black
Output Type:	Triple
Main Circuit Type:	Voltage
Principle Of Work:	Vector Control Transducer
Switch Mode:	Vector Control / V/F Control
Application:	to Control The Speed of The Motor

Product Description

1. ZVF9V Series frequency inverter is suitable for all kinds of devices such as metallurgy, plastic, textile machinery, paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment, printing mechanism, packing machinery, blower fan, water pump, hoisting equipment, building materials and so on for driving and speeding control of AC asynchronous motor.

2. ZVF9V Series frequency inverter has the good effect energy conservation, fine speed adjustment performance, stable operation, stable operation, electrical machinery soft start, protect function and self diagnostics fault and other advantages.

1. Power: 0.4KW-400KW 50/60Hz.
2. ZVF11-M Series: Single phase input, 220V± 20%. Three phase output.
ZVF9V-G T2 Series: Three phase input, 220V± 20%, Three phase output.
ZVF9V-G T4 Series: Three phase input, 380V± 20%, Three phase output.
3. Output Frequency: 0~400Hz.
4. CE & ISO9001
5. Built-in RS485 Interface.
6. Operation Control mode selection: (F0.04)
0: Operator panel RUN/STOP Key control
1: External terminal control
2: 485 COM Control.
7. Capacitor: 0.75KW_15KW (NICHICON) 18.5KW~375KW (STG) (Import from Japan).
Infineon IGBT and MITSUBISHI. ( Import from Germany ).

8. Frequency inverter has the good effect energy conservation, fine speed adjustment performance, stable operation, stable operation, electrical machinery soft start, protect function and self diagnostics fault and other advantages.
9. Frequency inverter is suitable for all kinds of devices such as metallurgy, plastic, textile machinery, paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment, printing mechanism, packing machinery, blower fan, water pump, hoisting equipment, building materials and so on for driving and speeding control of AC asynchronous motor.

For more details. Welcome to send inquiry to us!
ZVF330  Series Mini Type AC Drive

ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for  small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.


AC Drive outline Dimension (Unit:mm)






Specification for ZVF330  Series Mini Type AC Drive

Inverter Model	Voltage	Power	Current	Dimension (mm)						Packing Size(mm)	G.W.(kg)
	(V)	(KW)	( A)	H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	141.5	130.5	85	74	125	5	570*380*460mm/16PCS	25kg
ZVF330-M0R7S2MD		0.75	4	141.5	130.5	85	74	125	5
ZVF330-M1R5S2SD		1.5	7.5	151	140	100	89.5	128.5	5
ZVF330-M2R2S2SD		2.2	10	151	140	100	89.5	128.5	5



Main Features of AC drive
     ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .

1. Output frequency :0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration .
5. Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6. Wide industry application . to expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.  Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
12. Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

CHZIRI Package for AC Drive 2.2kW


 ZVF330 AC Drive Application Range
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.

CHZIRI Clients for AC Drive


FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
