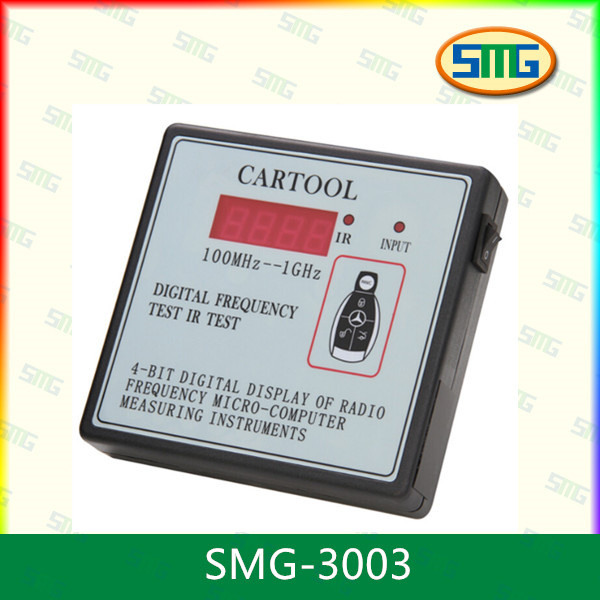

Frequency Jammer Remote Control Multi Frequency Grabber /Multi-Frequency Grabber

Product Specifications

Prod Model:	smg-3003
Markets:	Western Europe
5X3cm:	5X3cm
Application:	Automatic Doors
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	Button Battery

Product Description




Battery model	27A
Operation voltage	DC12V
Standby current	less 2uA
Operation frequency	433.92MHz
Frequency offset	+/- 75KHz
Modulation	ASK (Crystal Oscillator )
Transmission current	less 10mA
Transmission power	10dBm
Encoder(Optional)	Fixed code: 2262, 2260                               Learning code: EV1527,ITC  Hopping code: HCS300,301
Antenna	Printed circuit board
Weight	30.0g


Packaging & Shipping
Packing: 1pcs/box and 500pcs/carton or customized
Shipping: DHL or othes as u required.
7 working day for qantity below 1000pcs
12 working days for quantity below 5000-10000pcs
15 wrking days for quantity above 10000ps

Our Services

Before Order
1. Skype online for directly and Email for Offcial talking.
2.Sales know market very well and product very well, will give u some suggestion for the application and market sells

After order
1. Lift-time Technical support.
2. 1 Years quality warranty


Company Information


FAQ

Pls confirm 2 points as below
1). What is the frequency you required, 315mhz or 433.92mhz or others ?
2). what is the chip u required to clone?1527 or others?
Pls contact us if u r not clear.
