Product Specifications
| Prod Model: |
GM-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

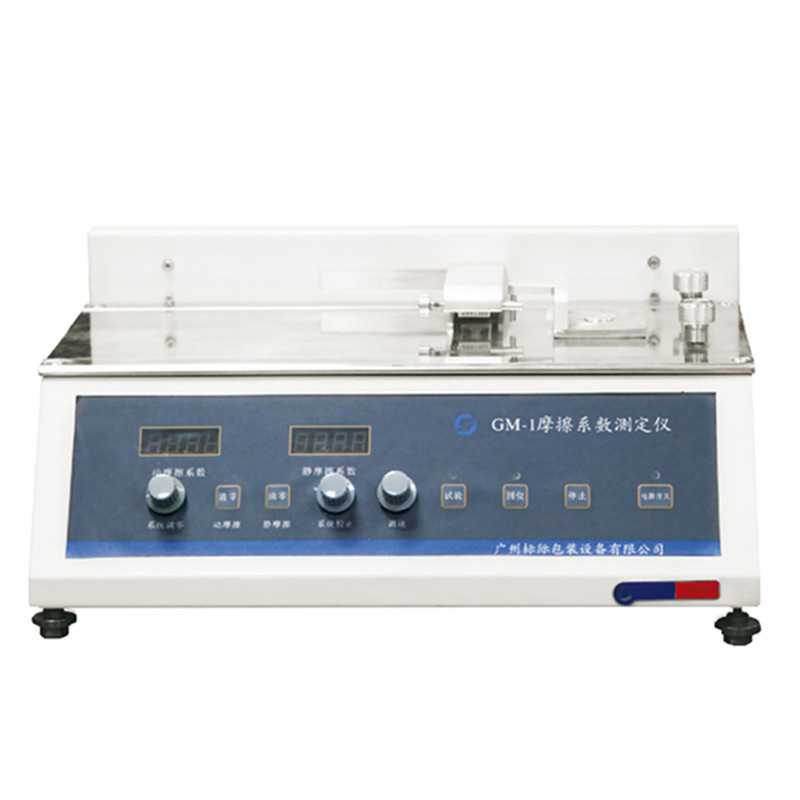

GM-1 Coefficient of friction tester is applicable for the packaging trade, film plants, testing institutions and so on to measure the coefficient of static friction and dynamic friction while materials are sliding. The materials include plastic film, sheeting, and paper and so on. Through measuring, effectively judge the smoothness, opening and evenness of the film to instruct the production correctly. The products conform to the standards of GB1006 and ISO8295
The features obtain the scientific and technological achievement identification:
Stable performance, precise test and convenient operation
The supporting control software connected with the microcomputer can print the moving curve and the test report of the sliding piece.
It can determine the coefficient of static friction and dynamic friction and display them at the same time.
Interface:
Specifications
Sample thickness: ≤ 0.2mm
Sliding piece size: 63× 63mm)
Sliding piece mass: 200× 2g
Working-table board size: 200× 470mm)
Digital display: Display static friction and dynamic friction at the same time automatically.
Measuring precision: ± 2%
Velocity of sliding-piece movement: 100× 10mm/min
Force measurement range: 0-2N
Power supply: 200V, 50Hz
Data output interface: R232, a set of control software
External dimension: (length × Width× Height) 470mm × 300mm × 300mm
Weight: 20kg
Comforms to International standards
Note: Some parts of working table can be heated, and the heating up temperature scope is room temperature~150 (the price is negotiated separately)
