Front End Loader with Manure Forks Sunco Made in China

Name: Front End Loader with Manure Forks Sunco Made in China
Brand: china-manufacturer-directory.com
SKU: 689183842
Availability: InStock
Rating: 4.4 (148 reviews)

Supplier:	Shandong Sunco Agricultural Equipment Technology Co., Ltd.
Price:	US $ 2026-2346/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	DZ150, DZ180, DZ210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number Of Front:	Tz03D/04D/05D/06D/08d/10d/12d
Type:	Fork
Power Source:	Diesel
Usage:	Planting and Fertilization

Product Description

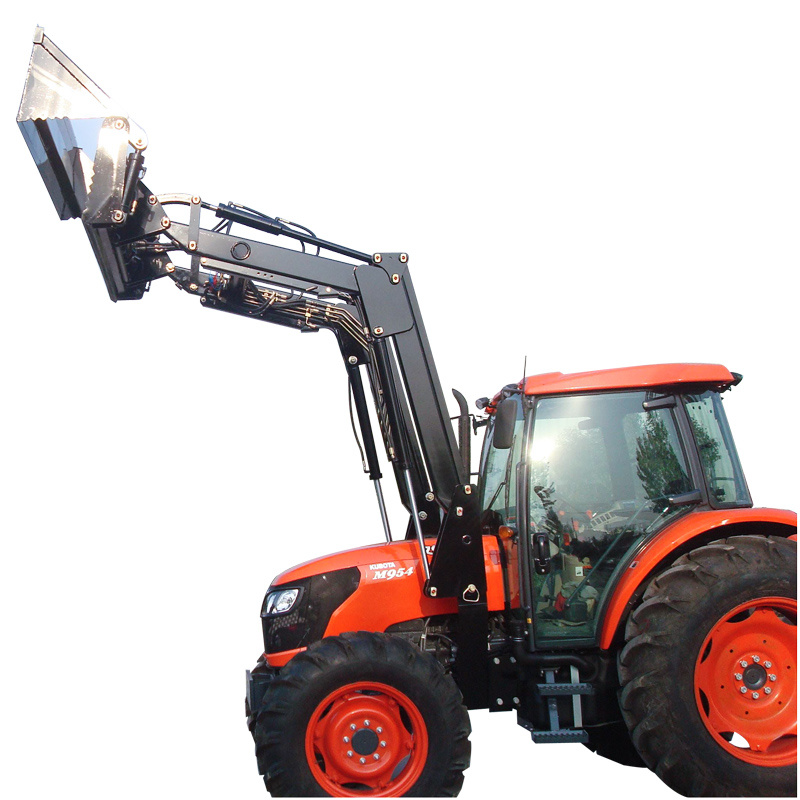

Manure Forks Front End Loader for tractor

Features of Front End Loader manure forks
TZ series loader utilize the tractors' hydraulic system, feature single-level control with float and come with a bucket level indicator.

The loader with a built in parking standard, is designed to be quickly and easy attached and detached.

Advanages of reont end loader manure forks

1. Mechanical parallel enables perfac angle correction of he implement a all lift heights.

2. Large option work angles makes the best possible work angle with anyother implement hitched and could work with any possible material.

3. Solidly dimensioned loader arms, optimally dimensioned cylinders and mechanical parallel linkage are factors which significantly contribute to maximum lifting power.

About us
As a comprehensive provincial mechanism for the science and technology development and technical support services of agriculture machinery industry, Shandong Sunco Agricultural Equipment Technology Co., Ltd is a multi-disciplinary comprehensive research and manufacture company which supplies advanced and applicable equipment for agriculture and rural economy, and integrates with development and test of new product and technique, trial test and information exchange. It is one of the key research units in the trade of agricultural machinery over China.

Specificaion of front end loader and manure fork

Loader Model		TZ02D	TZ03D	TZ04D	TZ06D	TZ08D	TZ10D	TZ12D	TZ16D
Matching Tractor	HP	15-25	20-40	30-55	45-60	55-75	70-100	90-140	140-180
Max.Lifting Height at Implement Pivot Pin	mm	2350	2550	2740	3010	3400	3710	3970	4260
Dumpling Height	mm	1730	1840	2100	2370	2480	2720	3000	3200
Overloading height	mm	2170	2370	2560	2830	3220	3490	3770	4000
Dumpling Distance	mm	370	500	600	640	690	740	900	900
Ground clearance at Arm Prvot Pin	mm	1120	1200	1360	1500	1630	1780	1930	1930
Max.Tip in Angle	Degree	48	48	48	48	54	54	54	54
Tip out Angle	Degree	52	58	58	58	58	58	58	58
Crowd angle at lowered lift arm	Degree	140	135	135	135	135	145	145	145
Digging depth	mm	90	100	100	120	140	180	200	200
Lifting Force at Implement Pivot Pin	Kg	1821/ 1184	2224/ 1474	2144/ 1321	2150/ 1286	1997/ 1187	2308/ 1452	2403/ 1690	2620/ 1850

Manure fork

Model	DZ150	DZ180	DZ210
Bracket Width (cm)	150	180	210
Number of Tines	8	13	15
Tine Dimendions (Dia.*L) (cm)	3*80	3*80	3*80

Shandong Sunco Agricultural Equipment Technology Co., Ltd. is a state-owned holding company, which is subordinate to Shandong Academy of Agricultural Machinery Sciences. It was merged by Academy's Technology Centre and Trial Production Factory in 2001, and was formally registered in 2009.
The Academy's Technology Centre and Trial Production Factory were respectively established in 1959 and 1964. Over the past 50 years, they were mainly engaged in R&D and trial-manufacture of tractors, farm machineries, agricultural transportation vehicles, field operating machineries, harvesting machineries etc. Moreover, they obtained more than 500 scientific and technological achievements, among which, over 80 were awarded with national, provincial or ministerial science and technology award.
As the reform and development needs of China's market economic system and research institutions, after the merging of Academy's Technology Centre and Trial Production Factory, the research direction focus has shifted from tractors to tractors and tractor equipments, the focus of work shifted from research to industrial development and production operations. After more than 10 years of development, Shandong Sunco Agricultural Equipment Technology Co. Ltd has embarked on a rapid developing road of corporate operation.

At present, our company covers an area of over 140000 square meters, has more than 140 employees, including more than 50 professional and technical personnels. Among which, there are 6 national researchers, more than 10 senior engineers, and more than 20 engineers. In 2012, we were awarded the title of National High-tech Enterprise.
Main products of our company including: Front End Loader, Backhoe Excavator, Snow Removing Machineries (like Snow Blade, Snow Sweeper, Snow Blower etc), Forestry Machineries (like Log Loading Trailer with Crane, Log Splitter, Wood Chipper etc), Front Linkage and PTO, Grass Slasher, Dozer Blade and Compost Turner etc.

Main Tractors we matching with including: Large and medium-sized domestic tractor manufacturers e. G. Lovol (Foton), YTO, Cherry, Jinma, SF, Wuzheng (TS), Enfly DQ, Dongfeng, LZ, SJH etc. And other famous international tractor brands like John Deere, New Holland, Kubota, Mahindra, Massey Ferguson, Belarus Minsk, Deutz etc. Products are mainly exported to the developed countries in Europe, Australia, America and Asia etc, with annual exports over 5000 sets.
