Product Specifications
| Prod Model: |
LD300 LD400 LD500 LD600 LD800 LD1000 LD1200 |
Product Description

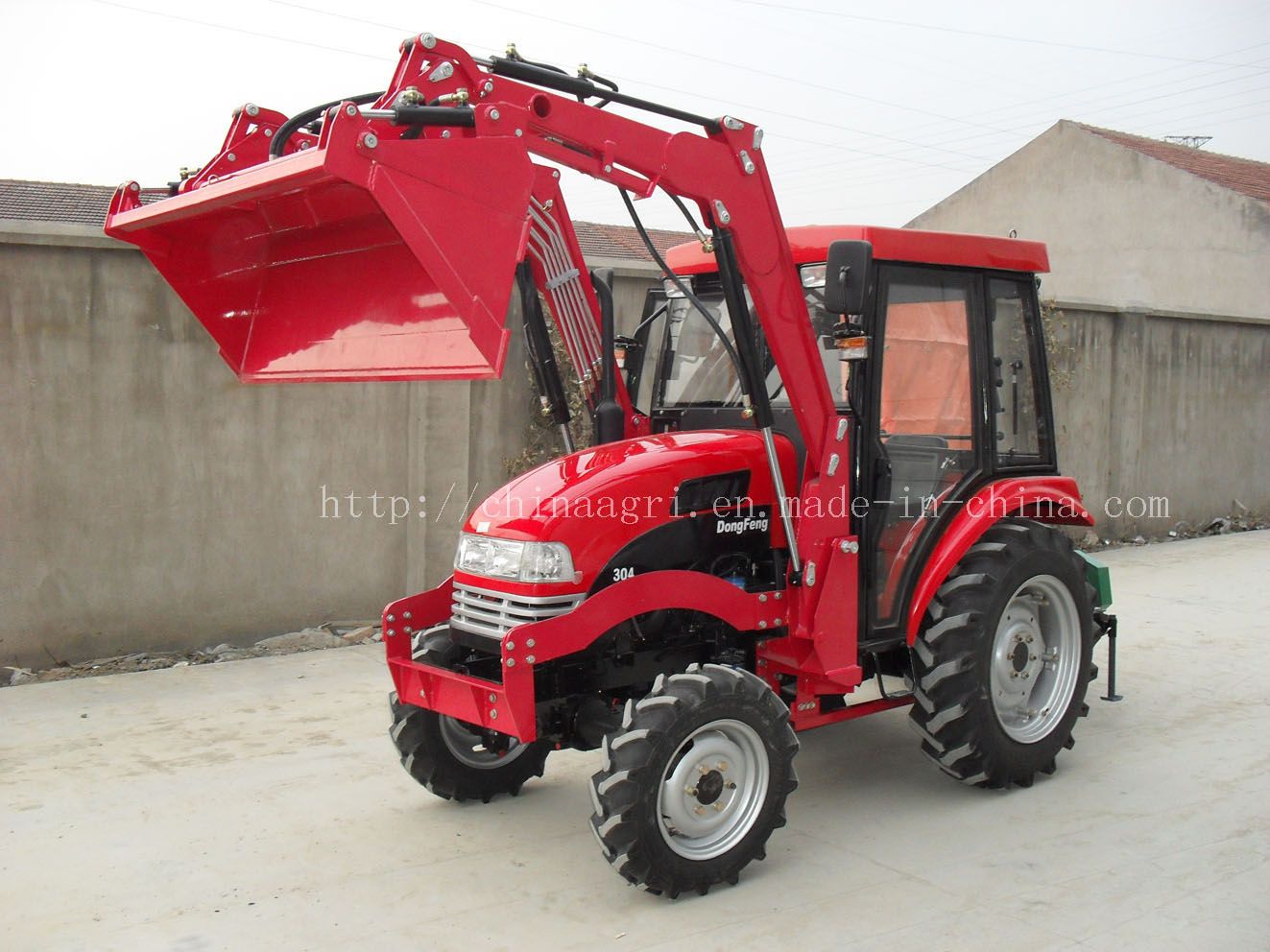

product name:front end loader
Main Performance
Used widely for Loading, grading, grabbing, transporting, clearing debris after storms, transferring soil, gravel and other materials, relocating dead trees, forklift attachment for lifting machinery and transporting hay bales.
Quick release Arms design, high lifting, self-leveling for extra safety, quick release bucket for easy use with available attachments, 4 in 1 combined bucket, grating cover bucket, timber grab and bale spike attachments available, high control for precision loading, easy to handle hydraulic control panel, support legs when detached.
Main Specification
| Model of front end loader | LD300 | LD400 | LD500 | LD600 | LD800 | LD1000 | LD1200 |
| Matching power(kw/hp) | 14.9-20.9/20-28 | 22.4-26.1/30-35) | 29.8-33.6/40-45 | 37.3-40.1/50-55 | 44.8-60.0/60-75 | 59.7-74.6/80-100 | 78.3-93.3/105-125 |
| Rated lifting Capacity(kg) | 360 | 460 | 550 | 650 | 850 | 1080 | 1280 |
| Max Dumping Height (mm) | 1800 | 2000 | 2100 | 2200 | 2350 | 2350 | 2500 |
| Digging Depth(mm) | 100 | 120 | 140 | 140 | 180 | 180 | 200 |
| Bucket Capacity(M3) | 0.18 | 0.3 | 0.35 | 0.4 | 0.48 | 0.6 | 1 |
| Dumping Angle(.) | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 | 42-45 |
| Self weight(kg) | 470-600 | 500-680 | 530-720 | 660-800 | 680-830 | 800-980 | 960-1150 |
Established in 2002, Changzhou Mateng Machinery Co. Ltd. Is a professional manufacturer of agricultural machine and transport vehicle for construction. It is located in changzhou city of Jiangsu province, which is APP. 2 hours far from Shanghai city by car. We produce Mini dumper with capacity from 250kgs to 1100kgs and agricultural attachment for wheel tractor from 16HP to 250HP, such as Front end loader, rear attached backhoe, mowers, log splitter, rotary cultivator, wood chipper, road sweeper, snow blower, trailer etc.
Mateng has 110 employees and 9 technicians. People of Mateng focus on improvement of quality control system and scientific management, In Sep. Of 2006, Mateng obtained the ISO 9001: 2000 Certificate of Quality Management System. Mateng products has EC, EPA or TUV approval as well. Now our products are exported to the American, Europe, Australian, South American, South African, the Middle East and Southeast Asian markets. Obviously, we have built long term business relationships with customers from all over the world.
Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
