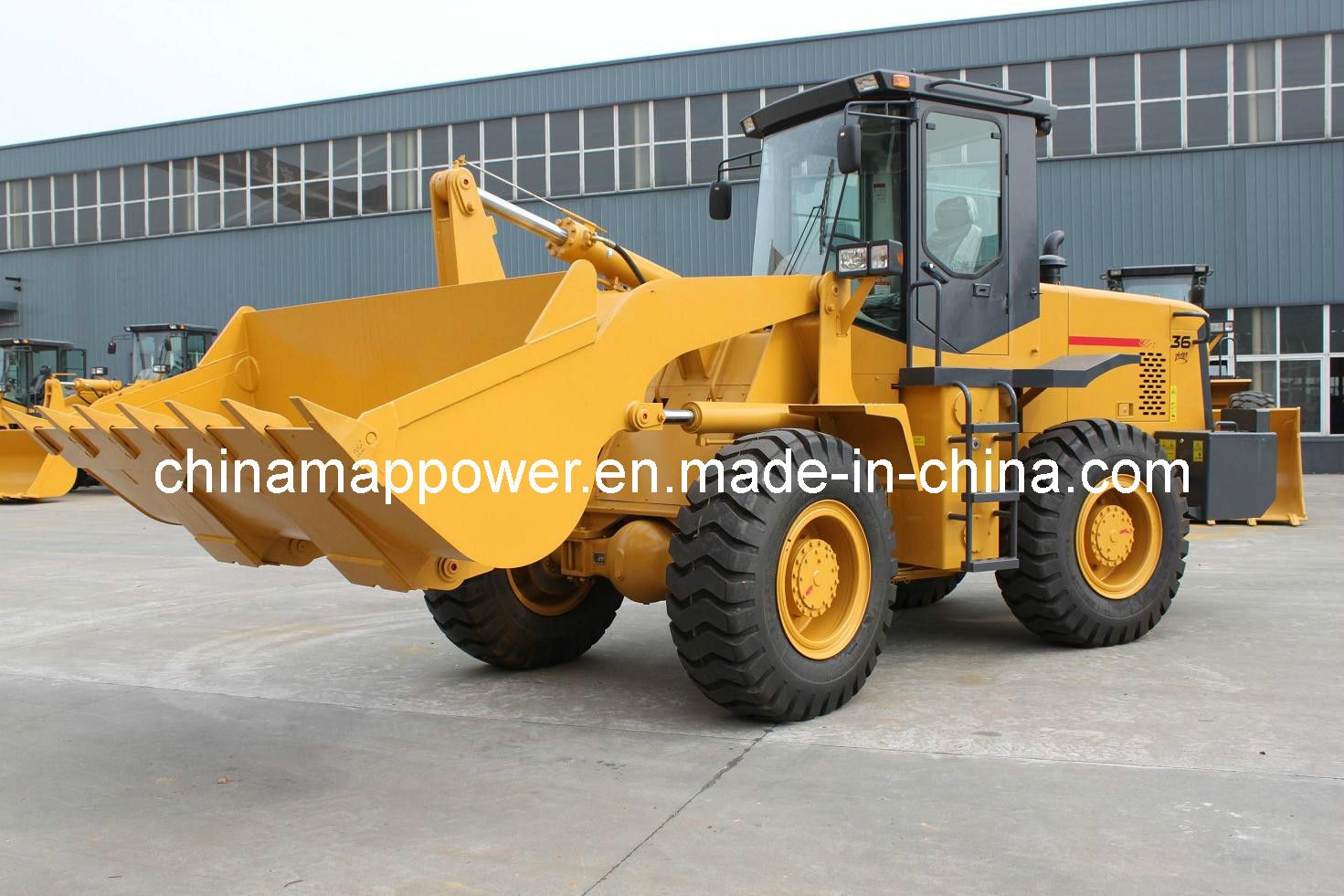

Front Loader 936 Wheel Loader
Product Specifications
| Prod Model: |
936 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
R6105g20 |
| Rated Load: |
3000kg |
| High Quality: |
Best Regards |
| Engine Model: |
R6105g20 |
| Engine Brand: |
Weichai |
| Rated Power: |
92kw |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
CE |
| Load And Unload Method: |
Front Discharge |
Product Description
Hot sale Wheel Loader 3000KG 936
Rated loading weight: 3, 000kg
Rated capacity: 1.7cbm
Operating weight: 9600kg
Max. Breakout force: 66kN
Max. Drawing force: 120.6kN
Lifting, lowering, dumping time: 10s (full load)
Overall dimensions: 6909 x 2400 x 3190mm
Engine model: R6105G20
Engine type: Inline, water cooled, direct injection
Max. Torque: 432nm
Rated power: 92kW
Nos of gear shift: 4 forward and 2 reverse
Max. Travel speed: 36km/h
Tire size: 17.5-25
Front tire pressure: 343KPa
Rear tire pressure: 304KPa
Service brake system: Air assisted oil disc tire four wheel brake
Fuel tank capacity: 108L
|
Main Technical Data |
Transmission Systems |
|
|
Engine Model: TD226B |
Torque converter: 3-element, single stage |
|
|
(WEICHAI DEUTZ BRAND) |
Transmission brand: Jingyi Brand TR-150 Countershaft |
|
Cylinder number: 6 |
|
Nos of gear shift: 4 forward and 2 reverse |
|
|
Bore & Stroke: 102x120mm |
|
Forward I: 7.7KM/H |
|
|
|
|
Rated power: 92KW |
|
Forward II: 14.2KM/H |
|
|
|
|
Rated speed: 2200RPM |
|
Forward III: 26.5KM/H |
|
|
|
|
Max torque: 425Nm |
|
Forward IV: 43.6KM/H |
|
|
|
|
Displacement: 5.88L |
|
Reverse I: 9.7KM/H |
|
|
|
|
Performance |
|
Reverse II: 32KM/H |
|
|
|
|
Rated loading weight: 3000kg |
|
Hydraulic Systems |
|
|
|
Rated capacity: 1.7m3 |
|
Working pressure: 16.5MPA |
|
|
|
Operating weight: 9800kg |
|
Boom lifting time: 4.82S |
|
|
|
|
Dumping height: 2950mm |
|
Bucket dumping time: 1.07S |
|
|
|
Dumping distance: 1100mm |
|
Boom lowering time: 3.24s |
|
|
|
Lifting height: 4777mm |
|
Brake system |
|
|
|
|
Min. under-clearance: 370mm |
|
Service brake: Air assisted oil disc type, four wheel brake |
|
Wheelbase: 2750mm |
|
Parking brake: Spring Appled air released inner expands hoof type |
|
Tread: 1800mm |
|
|
Steering ststem: |
|
|
|
|
Max. breakout force: 128KN |
|
Articulated, load-sensing, steering priority |
|
|
Max. RIM-PULL: 97KN |
|
Tyre size: 17.5-25 |
|
|
|
|
Max. gradeablity: 30° |
|
Front tyre pressure: 343KPA |
|
|
|
Overall dimension (mm): 6909x2400x3190 |
Rear tyre pressure: 304KPA |
|
|
|
Tank capacity: |
|
AXLES |
|
|
|
|
|
Fuel tank: 151L |
|
|
Four wheel drive, front axle fixed, rear axle oscillating, |
|
Hydraulic tank: 138L |
|
oscillating angle of rear axle: +/-12° |
|
|
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.
We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.
With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...
Our main products list.
Agricultural machinery:
1. Tractor from 18HO-130HP
2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.
Construction machine:
Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.
Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services
With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
