Changzhou Suma Precision Machinery Co., Ltd. >> Fso900 Hold Back Clutch as Power Transmission

Fso900 Hold Back Clutch as Power Transmission

Name: Fso900 Hold Back Clutch as Power Transmission
Brand: china-manufacturer-directory.com
SKU: 753997555
Availability: InStock
Rating: 4.8 (52 reviews)

Supplier:	Changzhou Suma Precision Machinery Co., Ltd.
Price:	US $ 100/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FSO900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Fso900
Type:	Sprag
Inner Race Overrunning Speed (Min-1):	1350
Outer Race Overrunning Speed (Min-1):	500
Torque (N.M):	24408
Lubricated:	Grease
Weight (Kg):	71
OEM:	Accept
Export:	Worldwide
Delivery:	10-15days

Product Description

Product Description

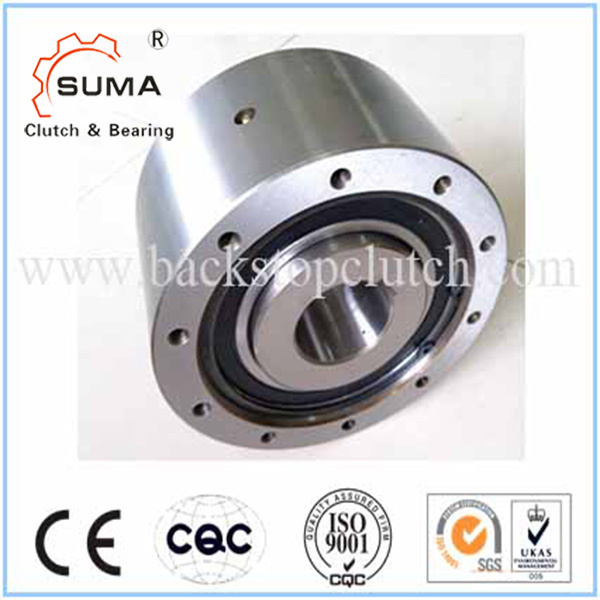

MODEL : FSO 900 HOULDBACK CLUTCH

INTRODUCTION
Types FSO, FS, and HPI 750 to 1027 are sprag type freewheels self-contained, sealed and bearing supported , using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design
that uses tall sprags with multi-radius active surfaces. Designed specially for large size freewheels to compensate for any eccentricity due to bearing wear. Types FS and HPI are oil
lubricated and use standard shaft lip seals. Type FSO is grease lubricated and equipped with
special grease seals.Type HPI is specially designed for high speed indexing applications. Each of
the different models show a range of standard metric bore diameters. We can supply any bore
size between the minimum and maximum specified in the table, including imperial sizes.

Type	Size		Overrunning speeds															Lubricant			Weight	Torque Drag
FSO FSO-GR HPI			FSO	FSO-GR	dH7-bxh	d4)	A	B	C	E	F	G	z	J	K	L	f	FSO	FSO..GR	HPI		TR
		TKN1)	nmax2)	nmax3)		min-max		-0.05
		[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[mm]		[mm]	[ml]	[ml]	[ml]	[kg]	[Ncm]
	300	379	3000/900	3600/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	4	M8	13	M6	0.8	7	10	14	1.6	18
	400	407	2800/850	3600/850	18-6x6	12...22	69.85	88.9	68.07	1.6	30	73	4	M8	13	M6	0.8	10	20	20	2.7	27
	500	1621	2500/800	3000/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	4	M8	16	M6	1.5	22	35	35	4.8	31
					40-12x8
	600	3105	2200/750	2400/750	45-14x9	24...57	95.25	136.525	92.2	1.6	63.5	120.6	6	M8	16	M6	1.6	52	84	84	8.6	62
					50-14x6
					50-14x9
	700	6900	1600/450	2000/450	60-18x11	48...82	127	180.975	123.85	1.6	90	158.75	8*	M10*	20	M6	1.6	168	280	280	19	156
					65-18x11
					70-20x12						101.65
