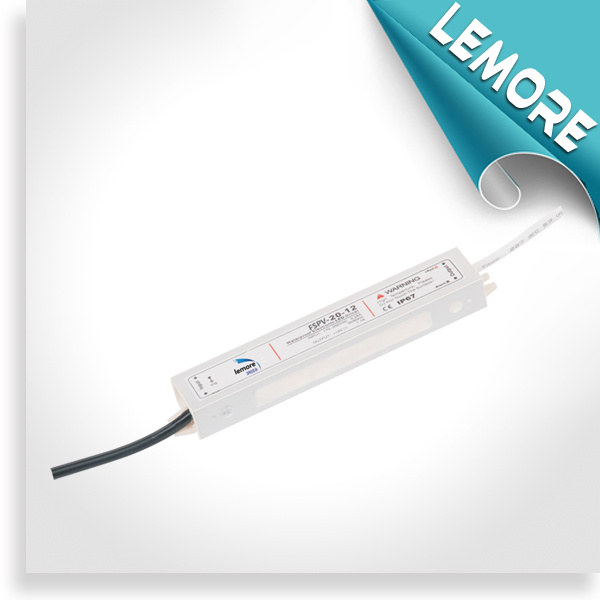

Fspv-20 Switching Power Supply (FSPV-20)

Name: Fspv-20 Switching Power Supply (FSPV-20)
Brand: china-manufacturer-directory.com
SKU: 711300985
Availability: InStock
Rating: 4.7 (100 reviews)

Supplier:	Shanghai Lemore Trade Co., Ltd.
Price:	US $ 4.8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	FSPV-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	132x30x20mm
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE

Product Description

Feature : Connect: 20cm Wire
AC Input: L Brown N Blue
DC Output: +V Red -V Black
CASE: P24-11 182 x 30 x 20mm

Model Specification	FSPV-20-12	FSPV-20-15	FSPV-20-24
Output	12V,0-1.7A	15V,0-1.4A	24V,0-0.8A
Error	±5%	±5%	±5%
Range	100mV	100mV	150mV
Efficiency	78%	78%	80%
AC input voltage range	AC 170-264VAC 47-63Hz,240-370VDC
Input current	0.1A/230V
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload proctection	115%-135% Type:Foldback: current limiting limiting Reset: auto recoverv
Temperature coefficient	±0.02%/degree C(0~50degree C)
Setup, rise, hold up time	200ms,100ms,30ms
Waterproof Level	IP67
Withstand voltage	I/P-O/P:1.5KvAC 1min I/P-FG:1.5KvAC 1min O/P-FG:0.5KvAC 1min
Working temperature and humidi	-10degree C~+60degree C,20%~90%RH
Overall dimension	132X30X20mm
Weight	0.22kgS
Safety standards	Meet UL 1012 requirent(Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
