Hunan Firstrate Sensor Co., Ltd. >> Fst-Tz Adblue Level Sensor for Engine

Fst-Tz Adblue Level Sensor for Engine

Name: Fst-Tz Adblue Level Sensor for Engine
Brand: china-manufacturer-directory.com
SKU: 774559925
Availability: InStock
Rating: 4.6 (59 reviews)

Supplier:	Hunan Firstrate Sensor Co., Ltd.
Price:	US $ 20-80/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	FST-TZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Testing Range:	285~900mm or Customized
Output:	Resistance
Installation:	Bayonet Twist Lock (Dia 101mm)
Connector:	AMP or Customized
Rated Power:	125MW
Resolution Range:	10 to 40mm
Operating Temperatures:	- 40 to +85°c
Type:	Adblue Level Sensor
Output Signal Type:	Resistance
Certification:	Ts16949-2009

Product Description

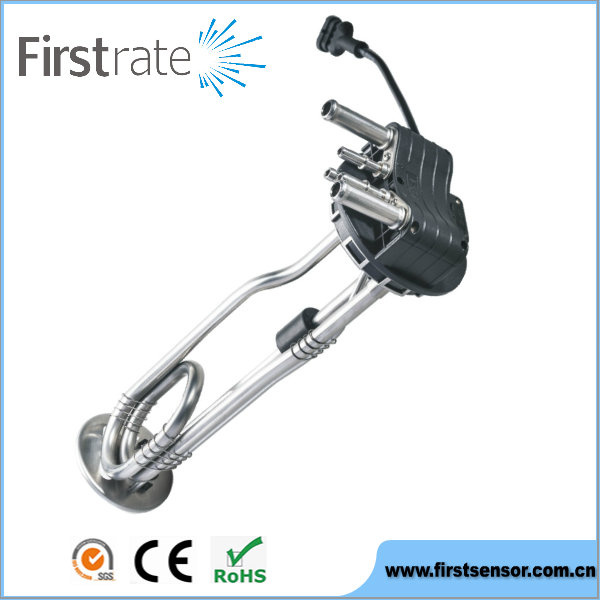

FST-TZ Adblue level sensor for engine

FST AdBlue Sensors applied reed pipe principle, are made of imported stainless steel, plastic and other raw materials, effectively solve the corrosion problem of urea solution. Heat pipes made in integrated structure, no leakage risk; thermal large area, rapid thawing.

Features:

l Reed switch, strong anti-vibration

l High precision, Continuous and steady output signal

l Integrated key features: Liquid level detection, Engine coolants recirculation for heating urea, DEF/AdBlue suction and return,Temperature measurement, Impurity filtration; Balancing the atmosphere of tank

l Bayonet twist lock for easy assembly, only float movable, anti-abrasive, long life

l Good heating result, especially suitable for extremely cold area

l Integrated structure,free of leakage, fast-thawing

l Comply with EURO IV, V, China IV

Technical Specifications:

Material: Plastic and Stainless steel
Length range: 285 to 900mm
Assembly: Bayonet twist lock (dia: 101)
Connector: AMP or others is available according to customer's Requirement

Output signal:Resistance

rated power: 125mW

Resolution range: 10 to 40mm
Operating temperatures: - 40 to +85°C
Protection rank: IP67

Application:

Widely used in the SCR SCR exhaust gas purification system of trucks, bus and engineering machinery for Liquid level detection, Engine coolants recirculation for heating adblue , DEF/AdBlue suction and return,Temperature measurement, Impurity filtration; Balance the air pressure in & out of the cabinet

Company Information

FAQ

Q: Are you the final manufacturer?

A: Yes, We are SENSOR manufacturer and exporter in china with 42years experience and with the factory authorized by SGS.

Q: Do you offer the OEM service ?

A: Yes, we can offer OEM service and make the laser logo marking for you . But the minimum quantity is 100pcs for the first order .

Q: What is your delivery time ?

A: It is in about 7-9 working days since the payment confirmed . If quantity more than 100pcs /order, it will be add 3-5 days more .

Q: What payment ways do you accept ?

A: You can pay us by T/T , PayPal , and West Union .

Q: Do you offer free samples ?

A: Sorry , we do not offer free samples .

Q: Could we make a visit to your factory ?

A: Yes, you are welcomed . But before that ,we will do the visiting investigation.

Q: How is your quality assurance service?

A: Our service is free exchange within three month and one year maintenance guaranteed for Non-human damage

Q: What is your normal delivery way?

A: Goods will be sent DHL / FEDEX / UPS / EMS / TNT / China Post

Firstrate Sensor Co., Ltd., is a hight-tech joint venture specialized in researching, manufacturing, and sales of sensors. Our products include Pressure Transmitters, Temperature transmitters, Liquid-level Transmitters, Wind Speed and Direction Transmitters, and Intelligent Control Instruments. They are widely used in the field of aviation, aerospace, national defense, military project, engineering machinery, railway, urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control.

Firstrate currently employs nearly 300 people, more than 70% employees have bachelor degree or above, and cover an area of more than 20000 square meters. The company has now implemented the quality management system of ISO9001-2008, and with advanced technique & equipment, comprehensive product test method. Our advanced technique, high quality products, and fast delivery have earned us good reputation among customers from home & abroad. Our products have been exported to more than 40 countries and regions such as US, Germany, Italy, Russia, South Korea, and India. We also provide OEM/ ODM service for customers around the world.

Firstrate is committed to the research and development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique, Bus -technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 6 national invention patents, 20 plus utility-model patents. And have got the certificates of CMC, CE, Safety and Flame-proof certification and RoHS.
