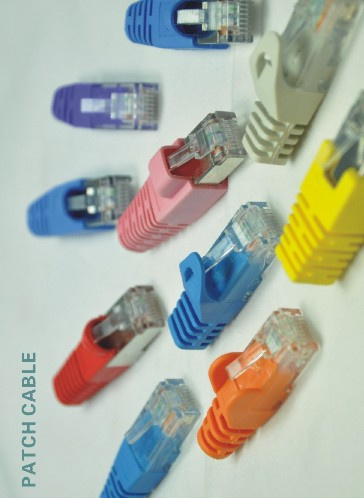

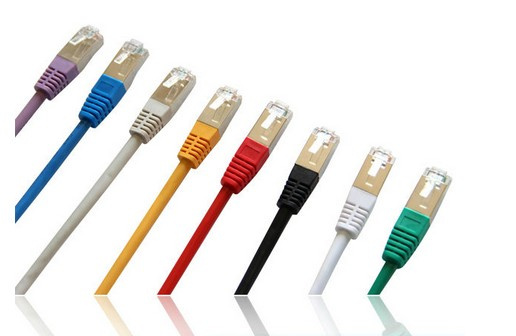

FTP Cat5e/CAT6 Patch Cord Cable Networking Cable
FTP Cat 5e/6 Patch Cord Cable(Cover Type)
FTP CAT6 LAN CABLE
1)23AWG Network Cable
2)Comply with UL and 11801, ISO/IEC ,TIA/EIA 568A/568B
3)4prs BC
FTP CAT6 LAN CABLE
4-Pair 23AWG CAT6 FTP Network Cable
Application
10Base-T4 100Base-TX 100Base-VG-ANYLAN 155MbpsATM 622 MbpsATM 1000Base-T 10GBase-T
Standard: According to ISO / IEC 11801 , EN50173 TIA / EIA 568-B .
Frequency : 1250MHz (common standard)
General Characteristic :
Characteristic Impedance :100±10
Nominal Velocity of Propagation : 68%
Maximum Mutual Capacitance : 5.6 nF/100m
Maximum Capacitance Unbal ance : 330pF/100m
Maximum DC Resistance : 7.5O/ 100m
Maximum Resistance Unbalance : 3%
Maximum Propagation Delay Skew: 30ns/100m ( 1-125MHz )
Maximum Propagation Delay: 536 ns/100m @ 100MHz
Minimum Bending radius: 10×cable outer diameter
Volta ge Rating : 60Vrms
Maximum Pulling load: 80N
Working Temperature (-20) (+60)
Storage Temperature: (-5) (+50)
Flame Retardancy : IEC 332-1( FRPVC &LSOH jacket )
IEC 332-1 & IEC 332-3C (FR LSOH jacket) .
Connector: RJ45, Unshield
Cable Spec: Cat 5e/6 Calbe
Meet TIA/EIA-568-A
Pin Out: 568A-568A
568B-568B
568A-568B
Usage: Audio & video signals
Certificate: UL, CE. RoHS
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Product: | Patch cord |
| Category: | Cat 5e, Cat6, Cat 6a, Cat7 |
| Shirleding: | UTP, FTP, SFTP, SSTP |
| Connector | RJ 45 connector |
| Conductor | Bare copper, CCA ( copper clad alunimum) or CCS ( copper clad steel) |
| Guage | 22AWG, 24AWG, 26AWG, 28AWG, 30AWG |
| Insulation | HDPE |
| Shirleding | Aluminum foil and Braiding |
| Jacket | PVC, LSZH. |
| Color | Black, white, grey, blue, red, orange ,yellow, purple,green ,transparent ^ |
| OD | 5.0mm, 5.2mm, 5.4mm, 5.7mm ... |
| Length | 0.25m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 10m, 15m, 20m, 30m, 50m, 80m,100m,etc |
| Compliance | ATC, UL, ETL, CE, RoHS, REACH |
| Application | 1.PC with Switch, Hub, ADSL, Router, Wall Socket, Network Module Plate,etc.
2.Connect 2 XBOX consoles for multi player gaming
3.ADSL, Modem with Hub or Router |
| Compatibility | 100 Base-T4
100 Base-TX
100VG-AnyLAN
1000 Base-T(Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM |
| Package | Polybag,Zip bag,OPP bag, bag with paper card, gift box, blister or Customized |
| ELECTRONICS |
| QC | 100% open and short test |
| Voltage | DC300V 5M ohm/10ms |
| Insulation Resistance | 10M ohm min |
| Contact Resistance | 3 max |
| Working Temperature | -25C-80C
|
![]()
![]()
![]()
