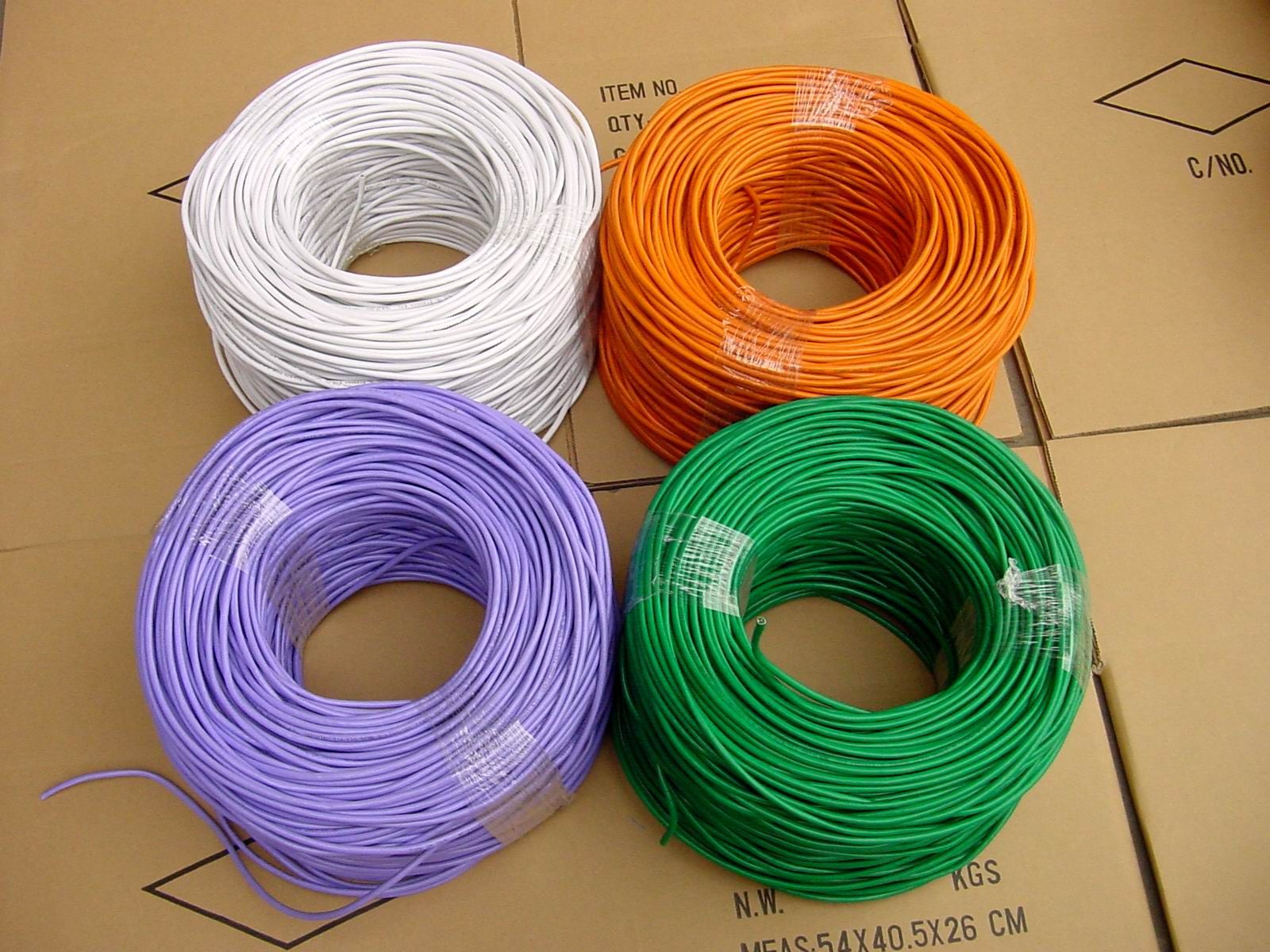

FTP CAT6A Patch Cable for Computer Cable

Product Specifications

Prod Model:	XXD-13LC016
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	FTP CAT6A Patch Cable for Computer Cable
Conductor:	Ofc/Bc/CCA/CCS
No. Of Conductor:	8
Insulation:	HDPE
Jacket:	PVC
Color:	as Your Require
Guage:	23/24/26AWG
Length:	0.5m,1m,2m,3m,5m,10m...
Delivery Time:	7-15days
Payment:	T/T,Western Union,Paypal
Application:	RF Cable
Conductor Material:	Copper
Type:	Cat 6
Cover Material:	PVC
Certification:	RoHS

Product Description

FTP Cat6a Patch Cable for Computer Cable

Descriptions:
1) Rated temperature: 60° C, 75° C
2) Bare solid of stranded copper conductor
3) Color coated PE insulation
4) Rip cord (optional)
5) PVC or LSZH jacket
6) Flammability grade: CMX, CM. CMR
7) Pull out box packing available

Conductor:
Material: Bare copper
Number of pairs: 4pairs
AWG: 24awg
Conductor diameter: 0.515± 0.003mm

Insulation:
Material: HDPE and FRPE
Diameter: 1.02± 0.005mm
Average thickness: 0.212mm
Minimum point thikness: 0.2095mm

First screen: Aluminum mylar shield(superposition rate: 25%)
Overall screen: 80/0.1mm TC braid shied(coverage: 60%)
Braiding shield(48/64/96/112x0.12mm or 0.15mm or 0.16mm, braid material, AL-MG, CCA, CCS, copper or tinned copper for braid), FR/PVC or LSOH jacket

Jacket rip cord: Optional

Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0± 0.2mm
Average thickness: 0.50mm
Operating temperature: -20 to 75° C
Minimum bend radius (install): (8*OD)
Flame test: CMX, CM, and IEC60332-1
Reference standard: TIA/EIA568B and IEC/ISO11801

Industry Standards:
ANSI/TIA/EIA 568-B. 2-1
EN50173
EN50288-5-1
ISO/IEC11801
UL, 3P, ETL

Application:
ISDN
10BASE-T (IEEE802.3)
100BASE-T (IEEE802.3)
155MbpsATM
100Vg-AnyLAN(IEEE802.12)
TP-PMD(ANSI X3T9.5)
16Mbps Token Ring (IEEE802.5)
1000BASE-T (IEEE802.3ab)

Packing:
1) Packing Lengths: 305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
