FTTH CATV Fiber Optical Receiver (OR-838H)

FTTH CATV Fiber Optical Receiver (OR-838H)
Price: US $ 32-40/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Specifications

Prod Model: OR-838H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Optical Power: -2dBm to 7dBm
Applicatio: FTTH, Fttp, FTTB, Hfc
Power Supply: AC160~265V or 30~60V
Flatness, Peak-to-Valley: <+/-0.75
Cnr: 48@-5dBm
Type: Optical Receiver

Product Description

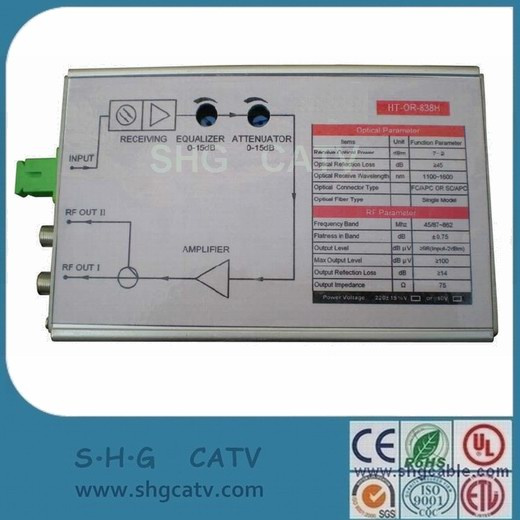

SHG 0R-838H Ftth CATV fiber optical receiver is a high index, high quality 2 output ports fiber optical receiver.

1. FTTH CATV optical receiver
2. 2 output ports
3. Input optical power: -2~7dBm

Features

1. Built-in interstage gain and equalizer adjustment, can option high CNR and suitable output level according to different optical power
2. Receive optical power in the range of -2dBm to 7dBm, all have good linearity
3. Inside 47~862MHz, all have good flatness property (FL< 1.0dB)
4. Metal shell, supply safeguards to opto-electrical sensing device
5. High output level can supply for many users
6. Low power consumption, high cost performance

Main application
1. FTTH FTTP
2. FTTB
3. HFC

Status indicator
Input optical power status indicator: <=-7.5dB YELLOW
+2dBm~-7.5dBm GREEN
>=+2dBm RED

Certification:
CE, RoHS, CCC, ISO9001

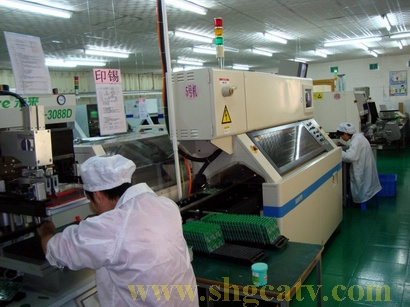

Workshop:


Specifications:
    Items

  Units

   Specifications

Optical
Input wavelength range nm 1100~1650
Optical input power range                  dBm -2~-7
Optical return loss dB ≥50
Optical Fiber Type --- Single Mode
RF
Bandwidth MHz 47~862
RF output level dBμV ≥96@-2dBm
Return loss dB ≥14 dB
Flatness, peak-to-valley dB ≤±0.75
Output port number --- 2
Performance
CNR dB 48@-5dBm
CSO dB ≤-60
CTB dB ≤-63
Power
Power supply V  AC160~265V or 30~60V
Power consumption max. W ≤15
Physical
Optical connector type --- SC/APC
RF tie-in --- F-female
Operating temperature   -20~+50
Storage temperature   -40~+85
Dimension mm 200×120×60
Weight Kg 0.65
SHG Communication Technology Ltd.

SHG Cable (Hangzhou) Co., Limited

Lin'an Longshine Imp. & Exp. Co., Ltd

SHG Group is aiming to manufacture quality warranty CATV & Optical fiber products, include communication cables & wires, researching and developing optical equipments, CATV equipments and headend equipments and network accessories. With ISO9001: 2000 certification, also achieved some international certificates such as ETL, CE, RoHS, REACH.

With abundant skilled workers and researching departments, owns the most advanced production lines, precise testing machines and strict complete quality control systems and managements, we can guarantee all of our products delivery comply with standards or according to customer's specific requirements, test 100% approval.

"Quality SHG, Innovation Development! " We are warmly welcome you come to visit us and discuss. We are sure you will satisfy and deserve your visit. Once you cooperate with us, you will feel find business goes easy.

Company Managing Ideas:

Customers: We are cooperating with a group of outstanding customers, whose demand for our products and service enrich our wealth. Only can we provide the best service quality and the most efficient work to make progress, so as to satisfy our customers' expectation and maintain our long-term relationship.

Products: We manufacture and sell top-quality products as well as cut down on costs with quantity production, so as to add the purchasing value for our customers.

Employees: Employees are deemed as the most important assets of our company. We'd employ those who are devoted to their work, who are good at learning and collaborating; Who are in pursuit of excellence, so as to satisfy a sense of achievement; Who are honest, fair and respectful to others; Who are promoted for their good performance rather than their politics or background.

Suppliers: We could not develop without the top-quality raw materials from our suppliers. We commit to build up a long-term commercial alliance with qualified suppliers, as we target to become partners based on trustworthy and reciprocal relationship.

Innovations: Innovation is the motive power of company growth and we take active actions to make it come true. For the sake of standing out in the competition, we challenge ourselves with the experimental spirit. To anticipate new changes and to incubate such changes are of great importance to our existing businesses as well as our newly-developed products or service.

Our advantage:

1. Excellent sales & service team. Our team all owns abundance export experience, it help us supply prompt and effective service for you.

2. Strict & complete QC system. From first step till goods loaded, we have complete QC and tracking system to warranty our products in good quality. And beside factory inside QC, we have separate QC belong to our trading company, we will do supervision during all procedure.

3. Wide-range products. Right now, we can offer full range products for CATV & optical area, we establish stable relationship with different factories, and also get some exclusive foreign sales agreements with them. And except this, our sourcing team can sourcing as specialist according to your requirements.

Once you cooperate with SHG, you will feel easy and convennient, and 'One-stop shop" purchase in China is not a problem to you anymore!
