Product Specifications
| Prod Model: |
GJXH-1 B6b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

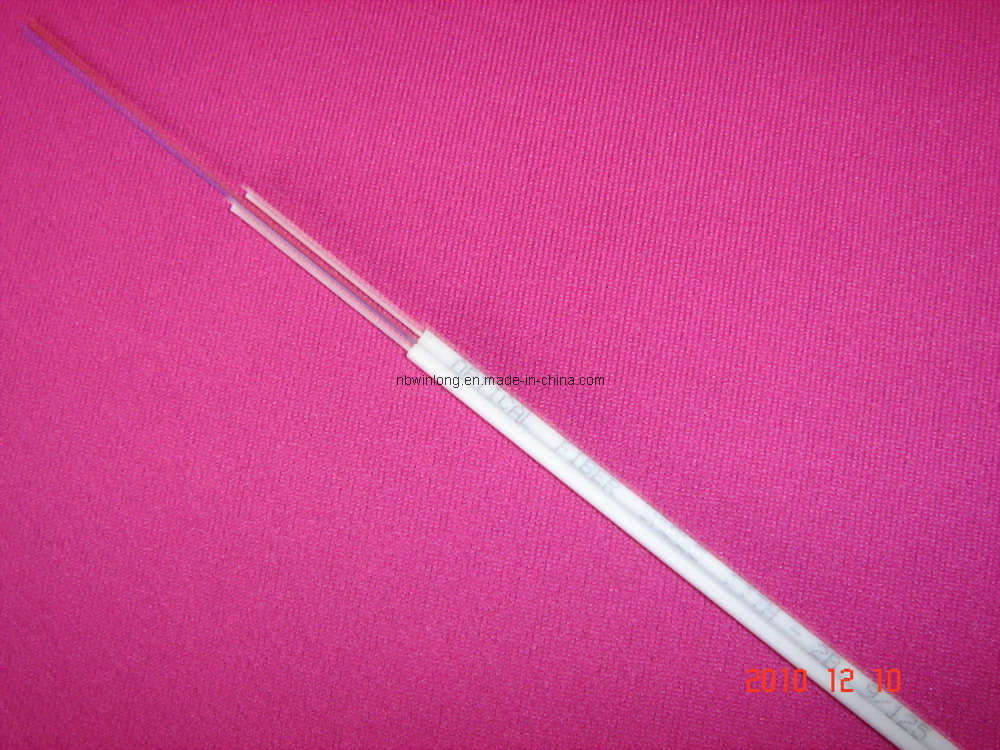

FTTH indoor fiber optic cable
Description
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted The optical fiber unit ID positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
A steel wire as the additional strength member is also applied, then, the cable is completed with a black or color LSZH sheath.
Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Single steel wire as the additional strength member ensures good performance of tensile strength;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance;
Low smoke, zero halogen and flame retardant sheath.
|
Attenuation(+20) |
|
|
G652 |
G655 |
50/125μ m |
62.5/125μ m |
|
@850nm |
|
|
|
≤ 3.5dB/km |
≤ 3.5dB/km |
|
@1300nm |
|
|
|
≤ 1.5dB/km |
≤ 1.5dB/km |
|
@1310nm |
|
≤ 0.45dB/km |
≤ 0.50dB/km |
|
|
|
@1550nm |
|
≤ 0.30dB/km |
≤ 0.50dB/km |
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
|
≥ 600MHz· km |
≥ 200MHz· km |
|
@1300nm |
|
|
|
≥ 1200MHz· km |
≥ 600MHz· km |
|
Numerical Aperture |
|
|
|
0.200± 0.015NA |
0.275± 0.015NA |
|
Cable Cut-off wavelength λ CC |
≤ 1260nm |
≤ 1450nm |
|
|
|
Technical Parameters
|
Cable Type |
Fiber Count |
Cable Size
mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term
N |
Crush Resistance
Long/Short Term
N/100mm |
Banding Radius
Static/Dynamic mm |
|
FTTH |
2-4 |
(2.0± o. 2)x(5.0± 0.2) |
20 |
60/120 |
300/1000 |
15/30 |
Storage/operating Temperature: -20 to +60
Geometrical characteristics
|
fiber core |
1 |
2 |
1 |
4 |
|
cable dimension(mm) |
2.0x3.0 |
2.0x3.4 |
2.0x3.8 |
2.0x4.0 |
|
cable weight(kg/km) |
8 |
8.5 |
9 |
10 |
Mechanical characteristics
Max Load(N) |
Long term |
30 |
30 |
30 |
30 |
|
Short term |
60 |
60 |
60 |
60 |
|
Bending radius (CM) |
Dynamic |
30 |
30 |
30 |
30 |
|
Static |
15 |
15 |
15 |
15 |
1. Enterprises Development
Win Long Enterprises, established in 1999, have been dedicated to continuous improvements on professional Cables manufacturing and developing new types of cables.
We have professional engineers, technical staff, advanced manufacturing equipments and developed experimenting labs in this line.
We take quality measures seriously to ensure that our cables are withstand extreme environmental conditions and high quality.
By now we have UL, cUL, ATC, CE Certificates and ISO 9001: 2008, ISO14001: 2004, BS OHSAS18001: 2007 certificates approved by UL DQS inc.
We could produce
Network Cables/LAN Cables: Cat5/Cat5e/CAT6/Cat7; UTP/FTP/SFTP
Patch Cables/Patch Cords: Cat5/Cat5e/CAT6/Cat7; UTP/FTP/SFTP
Coaxial Cables: RG6, RG59, RG59 Siamese cable, RG11, RG58, 5C-2V
Audio&Video Cable: HDMI Cable, Dispalyport Cable, RCA Cable, TV Cables, Scart Cable
Computer Cable: USB Cable, DVI Cables, VGA Cables, SVGA Cable, SATA Cables
Optical Fiber Cable: Indoor Optical Cables, Indoor/Outdoor Optical Cables, Outdoor Optical Cables, Optical Fiber Patch Cords, Adapters
Rubber Cables, Welding Cables, Booster Cables and so on
Most of important, all of our cables are RoHS, REACH Compliant and 100% testing.
2. Quality Assurance
The company is ISO9001 certified and UL Approved. Quality Assurance one of our main success factors, quality control is guaranteed through advance technology, scientific arrangement and comprehensive testing methods. We have owned whole test equipments for electrical and physical; And a strong technical team & mere than 600 experienced skilled woked service for products.
3. Our Goal
To meet each client's equivement in timely manner with high quality at compefitive prices.
