Product Specifications
| Prod Model: |
S-16062015109 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
305m/ Wooden Drum/ Box |
| Jacket: |
PVC |
| Certifications: |
RoHS, ISO9001, Reach,Tlc,etc |
| Rated Temperature: |
-20degrees Centigrade~+60degrees Centigrade |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Single Mode/Multi Mode |
| Connection Structure: |
Per Request |
| Brand: |
Simpact/OEM |
Product Description
Product Description
FTTH Indoor Multi-mode Fiber Optical Cable Details:
Product Description
This FTTH Indoor Multi-mode Fiber Optical Cable has been designed for outdoor to indoor or indoor application. Our drop fiber optic cable design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.FTTH Indoor Multi-mode Fiber Optical Cable designed for outdoor to indoor aerial easy and economical self-support installation.

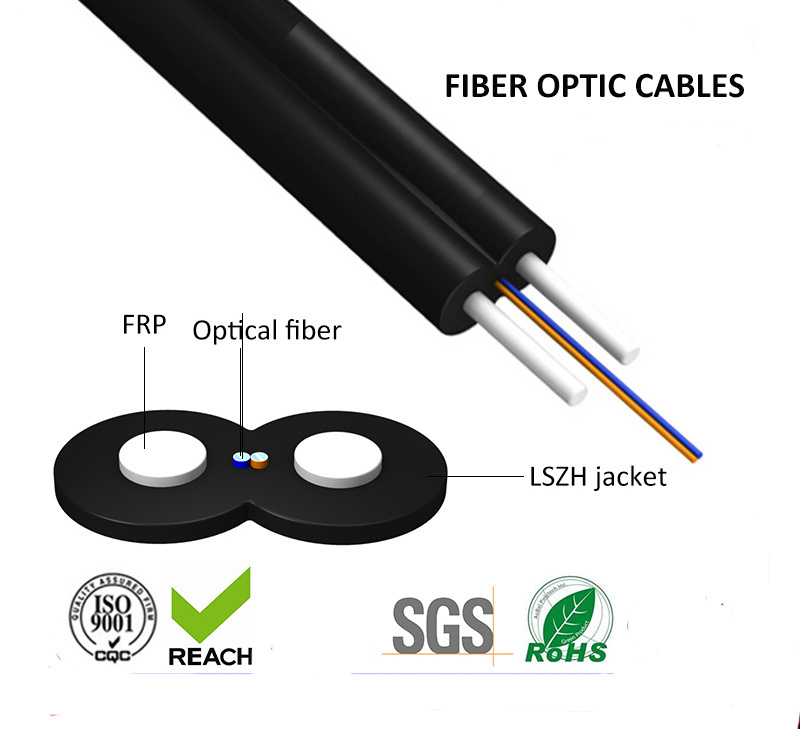

FTTH Indoor Multi-mode Fiber Optical Cable Structure &Properties:
1.Good mechanical and environmental characteristics
2.Drop Cable 's Flame retardant characteristics meet the requirements of relevant standard
3.The mechanical characteristics meet the requirements of relevant standard
4.Soft, flexible, easy to lay and splice and with big capacity data transmission
5.Meets various requirements of market and clients
FTTH Indoor Multi-mode Fiber Optical Cable Applicable Fields:
This cable has been designed for access building cable with good performance and easy installation.
FTTH Indoor Multi-mode Fiber Optical Cable Technical Date:
ITEMS | UNITS | SPECIFICATION |
| Attenuation | dB/km | ≤0.4 at 1310nm ≤0.3 at 1550nm |
| Chromatic Dispersion | ps/nm.km | ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 |
| Zero Dispersion Slope | ps/nm2.km | ≤0.095 |
| Cut-off Wavelength (λcc, 22m of a cabled fiber) | nm | ≤1260 |
| Mode Field Diameter | um | 9.2±0.5 |
| Mode Field Concentricity | um | ≤0.8 |
| Cladding Diameter | um | 125±1.0 |
| Cladding Non-circularity | % | ≤1.0 |
| Coating cladding concentricity error | um | ≤12.5 |
| Coating Diameter | um | 245±10 |
| Bending loss (Bare fiber) Radius :7.5mm x 1 turn | dB | ≤0.5 at 1550nm |
| Proof Test | kpsi | ≥100 |
