Product Specifications
| Prod Model: |

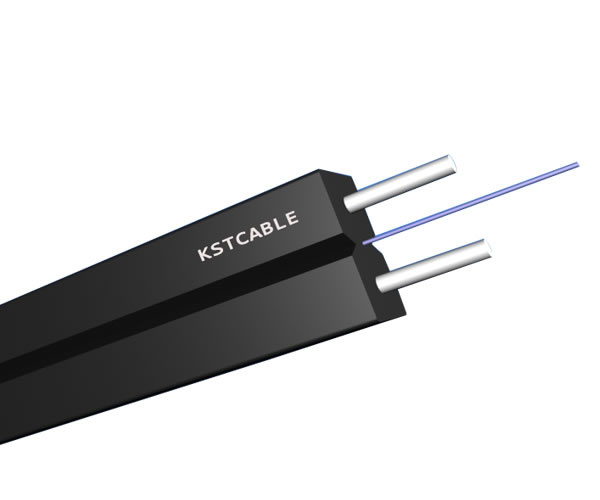

FTTH1CoreF001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Art |
| Certification: |
ISO9001 |
| Type: |
Multimode & Singlemode |
| Brand: |
Kstcable |
Product Description
Characteristics:
Fiber-to-the-home broadband connections promise the next generation in connectivity to consumers
Technical Parameters:
Cable Count | Out sheath
Diameter | Weight | Minimum allowable Tensile Strength
(N) | minimum allowable Crush Load
(N/100mm) | Minimum Bending Radius
(MM) | Storage
temperature |
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (ºC) |
1 | 3.1*2.0 | 8 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
Optical Characteristics: |
Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
A1b:62.5/125 |
Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
G.652D | B2: Zero dispersion shifted |
G.655 | B1.2 :Cut-off wavelength shifted |
G.657(A1,A2 ,B3) | B4: Main technical data for positive
dispersion shifted single-mode fiber |
Shenzhen Kstcable Co., Ltd.
2005.06, Shenzhen Kstcable Co., Ltd. Was established;
2005.09, Production of products: Fiber optic cable for communication, for power cable, indoor fiber cable, FTTH optic cable, fiber optic cable and other field;
2006.11, Through the ISO9000 international quality system certification;
2007.02, Through the EU RoHS certification;
2008.05, Tertified by the U. S. UL;
2008.03, Exports to South Korea the first fiber optic cable to get customers;
2009.12, The products have been exported to the United States, Australia, Southeast Asia, India, Pakistan, Saudi Arabia and other countries;
In 2010, Sales reached 40 million core km, is currently growing at 30%;
Our products are suitable for: Mobile communications companies, telecommunications companies, radio and television, railway, highway, military, electric power, banking, taxation, border, coal mines, schools^
