Product Specifications
| Prod Model: |

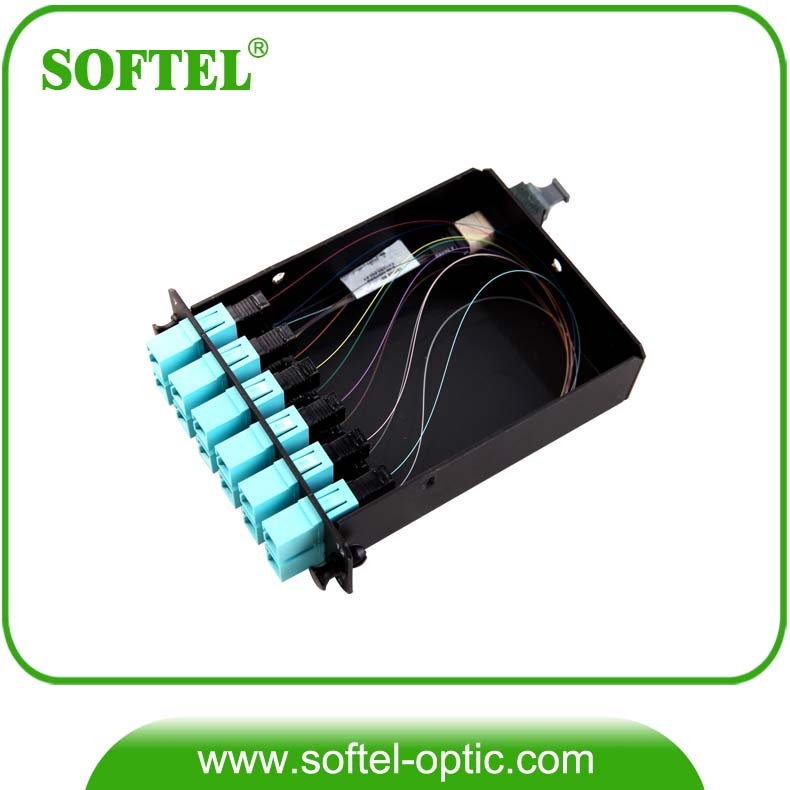

MPO Cassette |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
Om3 ODF Rack |
| Application: |
FTTH Project |
| Cable Connector: |
MPO/MTP 12-Fiber Push/Pull Connector |
| Working Temperature: |
-20°c~+60°c |
| Cable Application: |
Datacent Backbone Cabling |
| Cable Capacity: |
12-144 Fiber |
| Delivery Time: |
7 Days |
| Cable Dia.: |
0.9mm /2.0mm /3.0mm |
| Type: |
Optical Fiber Distribution Box |
| Wiring Devices: |
ODF |
Product Description
Standard 19" High Integrated Equipment and Devices MPO 36cores ODF Rack
MPO Pre-terminated cabling system solution
Custom made for you by SOFTEL. It is custom made for your datacenter and other high-end cabling solution
With pre-termination MPO.
SOFTEL MPO adopts Corning CLearCurve series OM3/OM4 fiber cable, plus the connectors from US Connector
MTP products. All the production is done in SOFTEL factory facility to ensure the system performance and quality.
Modular and snapping fit design, which offer great convenience to installers at the site for installations as well as
Future maintenances and services. With the universal system and MPO interface, it will provide trouble-free connection
Between fiber cable and equipments as well as ensure the channel has the best flexibility, compatibility and reliability.
Product line construction
SOFTEL pre-terminated MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables,
To cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class)
And L class(super low loss).
Characteristic:
Module optical fiber connections to the torsion of the sequence
Can provide data center and SAN System, simple and flexible
MPO trunk connector fixed on the back of module
The standard 19" can be installed on any cabinet
Convient to be installed, moved and added
Main application:
Datacenter rack mount patch panel
Connection between trunk cables to patch cords
Pre-terminated system installation
In order to ensure entire connection is in a unify condition, we need to first install patch panel, cassette module and
Related mounting hardware. Then, say the cables in designed cable passage position, remove all the protection caps and wraps,
Connect MPO and to all the related MPO sockets, mount and secure the cables with cable ties, simple as that.
Installation steps
1. Install accessories and hardware
2. Cable laying
3. Plug device
4. Cable mounting
|
|
|
Multi Mode |
Single Mode |
|
IL |
MPO |
Single max :0.35db (L) Single Max : 0.60db (G) |
Single max :0.35db (L) Single max :0.75db (G) |
|
|
LC |
MAX :0.10dB(L) MAX :0.15 db (G) |
max :0.30db |
|
RL |
MPO |
>20DB |
>60DB (8 degree Angle Polish ) |
|
|
LC |
>30db |
>50 db (UPC) >60DB(APC) |
|
Mechanical |
MPO |
<0.2DB, 200 times insertion |
|
|
|
LC |
<0.2db, 500times intertion |
|
|
|
Working Temp |
-20~ +60 'C |
|
|
Enviromental |
Storage Temp |
-40~ + 70'C |
|
|
|
Install Temp |
-5~ + 50'C |
|
