Categories
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | RT-C224 |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Ambient Temperature: | -40 to +55 Degree Centigrade |
| Humidity: | ≤95% |
| Max Flow: | 60L/Min or 80L/Min |
| Accuracy: | ±0.30% |
| Inlet Vacuum: | ≥54kpa |
| Outlet Vacuum: | ≤0.3mpa |
| Power: | AC220V, AC380 |
| Noise: | ≤70dB(a Class) |
| External Dimension: | 1760*805*550 |
FUEL DISPENSER
ATEX & OIML APPROVED
Brief introduction of CONTROLLER part
*The pulse equivalent is settable.
*The display sequence is settable.
*Stop refueling by the next integer value
*Solenoid valve turn-off value is settable.
*The latest 10 sales records are queryable.
*The dispenser is lockable when not in use.
*The re-display period when power off is settable.
*Shift & general total are both settable and clearable.
*Electronic calibration is available when the accuracy deteriorates.
*Error code: The keyboard would show error codes when dispenser doesn't work well.
*With the communication ports, it can communicate with the gas station management system.
*The decimal point of the display is settable, to meet various currency rates in different countries.
*Printer, the title of which is settable. You can change the title into the name of your station name.
*Preset: You can refuel car with a preset volume or price. And there is a shortcut, namely 4 preset buttons on the
keyboard. After a button is set as a value, it refuels car by this value automatically when you press the button.
*All functions can be customized to meet your own requirements.
*All operations can be done through a remote control.
Brief introduction of MECHANICAL part
*Water proof & Ex-proof.
*The motor can be 220V or 380V.
*The pulser can either recognise flow direction or not.
*The rolling LED display can be installed for advertising, or a TV.
*The general flowrate is 35`60L/M, and we can make it 90, 120, 250, 500L/M and even higher.
*We have many kinds of flowmeters and pumps, to meet different requirements of different countries.
Design
*The material can be stainless, or painting.
*The title of nameplate can be made as your own company name.
*The appearance is up to you, for example, the position of keyboard. You can put it on the front, or on the side.
*You can send us your own logo, to paint on the dispenser; or you can send us big pictures, and we can print them as water-proof stickers, to stick on the front door, the top or the display panel.
If you have any other requirements, please feel free to contact us.
Display, keyboard, pump & flowmeter of fuel dispenser, oil dispenser, gasoline dispenser, petrol dispenser, diesel dispenser

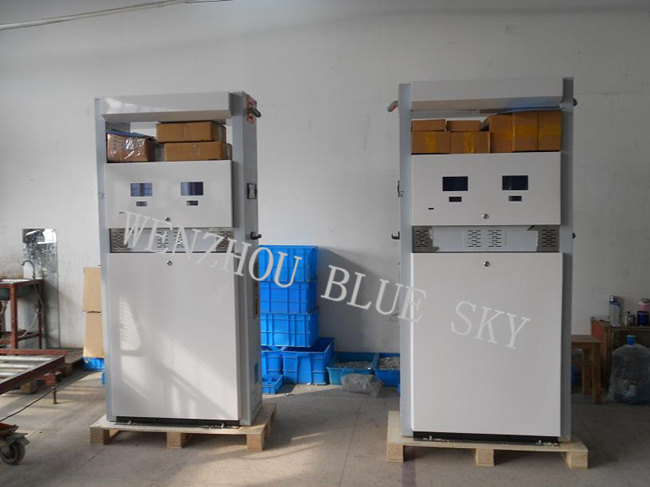

Final appearance of of fuel pump, oil pump, gasoline pump, petrol pump, diesel pump
WHY BLUE SKY?
1. Blue Sky used to be the first factory special for dispenser controller in China. With over 20 years' history in this field and continuous optimization & innovation, Blue Sky makes controllers with as many functions as you like.
2. Almost every part is made by Blue Sky itself, including controller, flowmeter and pump, since Blue Sky finds that other factories' products cannot meet its demands and requirements due to the increasingly thriving business all over the world.
3. Professional, steady and advanced as Blue Sky is, its products already passed ATEX, OIML and other standards.
4. With top-ranking staff, some of which are from the first dispenser factory in China, and some belong to the new generation, Blue Sky dispensers boast sound market reputation, extensive business channels, solid customer foundation and strong market competitiveness.
5. Persisting to the principle of "making trade services the forerunner of the business", Blue Sky will strive for high efficiency, passion, integrity to provide customers with superior trade services.
Presentation of Blue Sky factory
