Product Specifications
| Prod Model: |
KAR/CPR500S-C |
Product Description
KAR/CPR 500S-C Full Automatic computer CPR manikin ( big screen colorized LCD\IC card manage software)
Features:
1. With all functions of KAR/CPR500S, as following:
1). The screen LCD display artificial respiration, external breast compression and pulse reaction
2). Simulate standard open airway and sound prompting
3). External breast compression: indicator light display, LCD counter display and sound prompting
a. Indicator light display of correct and wrong compression position; LCD counter display; sound prompting of wrong compression.
b. Display of correct(4-5cm) and wrong(<4-5cm<) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
4). Artificial respiration(Inhalation) indicator light display, LCD counter display and sound prompting:
a. Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b. Inhalation too quickly or too much result in air entering into stomach; indicator light display; digital counter display; sound prompting.
5). Ratio of compression and artificial respiration: 30: 2 (one or two person)
6). Operating cycle: one cycle includes five times of 30: 2 ratio of compression and artificial respiration.
7). Operation frequency: 100 times per minute (the latest international standard)
8). Operation methods: exercise operation; examine operation
9). Operation time: counting down device
10). Sound prompting device: volume control; turning on or turning off sound prompting device
11). Print: print operation result
12). Examination of pupil response: mydriasis and myosis
13). Examination of carotid response: simulate spontaneous carotid pulse in compression process
14). Working conditions: output power is 24V transformed from 220V exernal power through manostat.
2. The operation information will be recorded synchronously in IC card, IC card info can be used for replaying examination process, evaluating scores, issuing certification and score file management through student management software of the computer.
3. With four trauma limbs, can be replaced for the original limbs and also can train the
4. first-aid, hemostatic dressing, fixing and carrying.

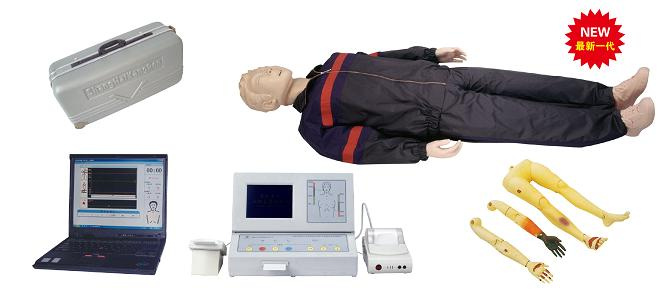

Main components:
1. Full body CPR manikin (1)
2. Trauma limbs (1set)
3. Big screen LCD (1)
4. Card reader (1)
5. IC card (20PCS/set)
6. Manage software (1)
Standard components:
1. Portable plastic box (1)
2. Portable bag for trauma limbs (1)
3. Temperature sensing printer (1)
4. Connect electric cord for LCD and manikin (1)
5. Connect cord for card reader and computer (1)
6. 220V external electric cord ( 1)
7. CPR operation pad (1)
8. CPR face shield sheet (50PCS/box)
9. Exchangeable lung sac (5)
10. Temperature sensing print paper (2)
11. Guide manual (1)
