Product Specifications
Prod Model: |
VFFS-YH014 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: |
600kg |
Type: |
Sewing Machine |
Product Description

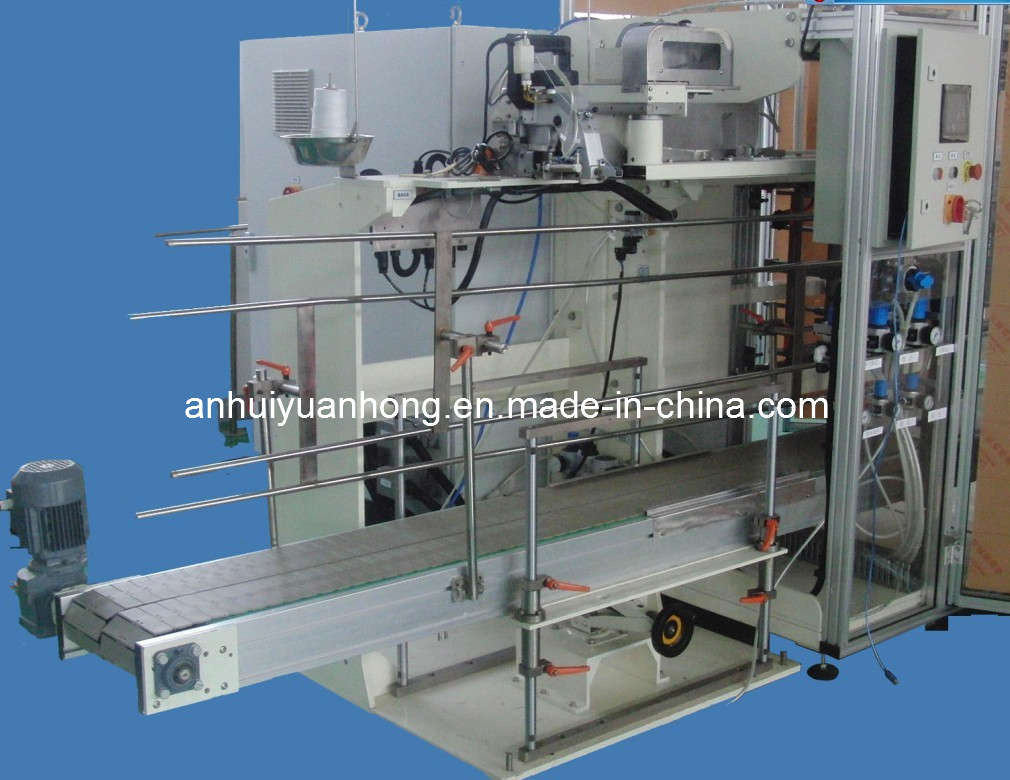

Packing machine of sewing machinery Scope of application:
Rice, Feed, light industry, daily use, industrial chemicals etc. Large woven bag sewing operation. Packaging machine line
Function Feature:
1. Photoelectricity inductive switch automatic positioning and sewing.
2. Automatic break line, do not need manual cutting; Packaging machinery
3. The driving motor of sewing guide and end product conveyor equip with transducer, speed is adjustable.
4. End product conveyor 's table-board is adjustable, in order to meet different bag size.
5. Sewing machine head safety guard is stalled safety switch, power supply will be cut when safety guard discharged. Its safety performance is well.
6. The rack adopts board syndeton which has elegant appearance.
Technology:
1. Packing bag size: (650-1000mm)*(350-550mm)(L*W)
2. Max. Packing rate: 25bags/min.
3. Sewing machine: NP-7A (Newlong, Japan)
4. Endproduct conveyor: Apron conveyor (L=2.5m)
5. Power: 820W
6. Air source pressure: 0.3-0.5Mpa
