Full-Auto Liquid Tube Filling Sealing Machine

Name: Full-Auto Liquid Tube Filling Sealing Machine
Brand: china-manufacturer-directory.com
SKU: 740034495
Availability: InStock
Rating: 5 (149 reviews)

Supplier:	Wenzhou Echo Import & Export Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB
Payments:

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic Grade:	Automatic
Structure:	Rotary
Feed Cylinder Structure:	Multi-Room Feeding
Material Type:	Liquid
Type:	Weighing-type Filling Machine
Filling Valve Head:	Multi-Head
Packaging Container Lifting Structure:	Pneumatic Lifting
Filling Principle:	Pressure
Dosing Device:	Plunger
Packaging Material:	Plastic
Packaging Type:	Tubes

Product Description

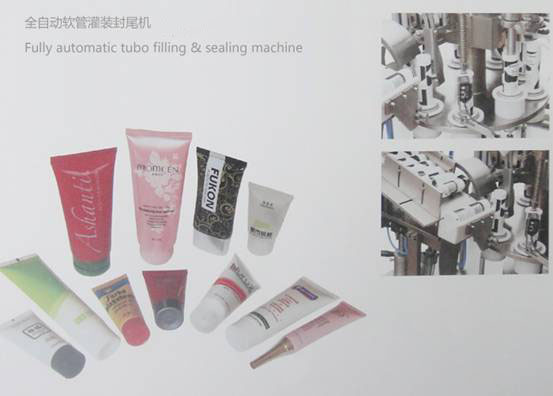

Liquid Tube Fill And Seal Machinery
Automatic ointment filling & sealing machine adopts the advanced elements of connecting pneumatics, electron and mechanism from domestic and foreign countries, it gathers the functions of feeding tube automatically, positioning by electronic scanning, detecting tube to fill and seal. It is highly automatic. It is suitable for packing medicine ointment, cosmetics and glue with soft tubes. The tube-feeding tray and the mould can be for different kinds of soft tube. The tube-feeding tray and the mould can be changed for different kind's soft tubes. The transmission among electron, pneumatics and mechanism is reliable. The operation of the machine is easy.

Fully Automatic Tubo Filling Sealing Machine 60A
		Configuration Standard		Technical Parameters			Remarks
Infrastructure
		Main Machine Landing Area		(about) 2m2
		Working Area		( about ) 12m2
		Water Chiller Landing Area		( about ) 1 m2
		Working Area		( about ) 2m2
		Whole Machine (L×W× H)		1950×1000×1800mm
		Integrated Structure		Union mode
		Weight		( about ) 850Kg
Machine case body
	Case Body Material			3 04 stainless steel
	Opening Mode of Safety Guard			Handle Door
	Safety Guard Material			Organic Glass
	Frame Below Platform			Stainless Steel
	Case Body Shape			Square-shape
Power, Main Motor etc.
	Power Supply			50Hz/380V 3P
	Main Motor			1.1KW
	Hot Air Generator			3KW
	Water Chiller			1.5KW
	Jacket barrel heating power			2 KW			Optional
	Jacket barrel blending power			0.18 KW			Optional
Production Capacity
	Operation Speed				30-50/min/max
	Filling Range				3-250ml
	Suitable Tube Length				50-240mm
	Suitable Tube Diameter				12-50mm
Pressing Device
	Pressing Guiding Main Component			CHINA
Pneumatic Control System
	Low Voltage Protection			CHINA
	Pneumatic Component			AIRTAC
	Working Pressure			0.5-0.6MPa
	Compressed Air Consumption			1.1m³ /min
Electrical Control System
	Control Mode			PLC + Touch Screen
	PLC			TAIDA
	Frequency inverter			TAIDA
	Touch Screen			WE!NVIEW
	Coder			OMRON
	Temperature Controller			TAIDA
	Filling detect Photo electric cell			CHINA			Optional
	Total Power Switch etc.			ZHENGTAI
	Color Code Sensor			JAPAN
	Hot Air Generator			LEISTER (Switzerland)
Suitable Packing Material & Other Devices
Suitable Packing Material			Aluminum-plastic composite tube and Plastic composite tube
Obliquely Hanging Lining-up Tube Storehouse			Speed Adjustable
Material contacting with filling material			316L Stainless Steel 316L
Jacket layer hopper device			Temp. Setting according to material and filling demand			Optional
Jacket layer stirring device			In case of no material mixing, it remains fixed in hopper			Optional
Auto stamping device			Single side or double sides printing at the end of seal tube.

Wenzhou ECHO machinery Co; Ltd establish in 2010, is located in the important birthplace of zhe nang mode-Ruian. The company is specialized in automatic given bag packing machine and vacuum packing machine. ECHO packing machinery is a National high and new technology company combined with research, manufacturing, marketing and service, and possess the largest research and development institutions in the domestic industry, perfect production system and huge marketing service network, annual output and market share all reside the ex-row in profession.

At present, the company marketing network through the country, and exported to Europe, America, Southeast Asia, West Asia, the Middle East and other dozens of countries and regions. Our various products are applied in food, medicine, commodities, chemical industry, pesticides and other industries.

The company take "superior quality, user first, excellent service, continuous improvement" as guidance. To making incessant innovations on behalf of their customer for the mission. And in the first place through the IS09001 quality management system certification and CE certification in the industries. In the future, ECHO will develop in depth in for ares: " Technology, institution, management and culture. " With outstanding product quality and good market reputation to meet customer' S inspection!
