Product Specifications
| Prod Model: |
R1800FZ-PL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Load Size: |
1200(L)X1300(W)X2200(H) |
| Packaging Type: |
Cartons |
| Type: |
Prestretching Wrapping Machine |
| Driven Type: |
Electric |
| Application: |
Dairy Products |
| Automatic Grade: |
Automatic |
Product Description

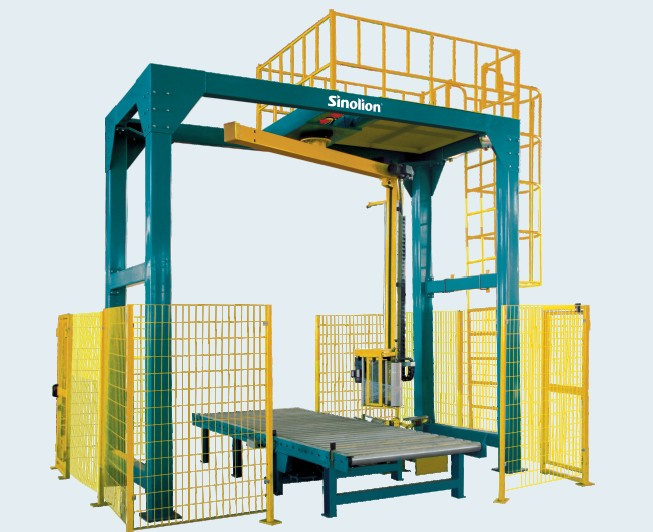

R Series Rotary- On line Packing machine - R1800F Rotary arm wrapping machine - 17 years experience in designing, testing and producing packing machine
- COCA COLA, PENSI Cola designated packing manufacturer
- Partner with Global Top equipment supplier,like OMRON, SIEMENS
- Providing one-stop service suited with digram design, making, installation, debugging and aftersales for home and overseas clients
Technical specifications: R1800FZ-PL Turningarm speed : 3-15 rpmPallet dimensions : 800 x 1200 and 1000 x 1200Pallet height : maximum 2200mm. (including pallet) Different roll diameters and roll spacing available
Supply Voltage : 220V, 50 Hz 1 phase, neutral and earth Power consumption : 2.0 kWWeight : approximately 1350 kg.Capacity : 30-40 pallets per hour Ambient conditions : Temperature: min 5° /max. 40° Humidity (condensation free) : 30-80% Standard version1.The main frame, four robust columns connected by a solid construction consisting of heavy square cartridge profile, fully sprayed in RAL colour and designed for the most stable suspension of the swivel arm;2. Swivel arm from heavy cartridge profile fitted with external cabling for vertical movement of the slide which the foil trolley is suspended from. This slide is suspended from a chain and powered by a transmission motor. Fitted with frequency control

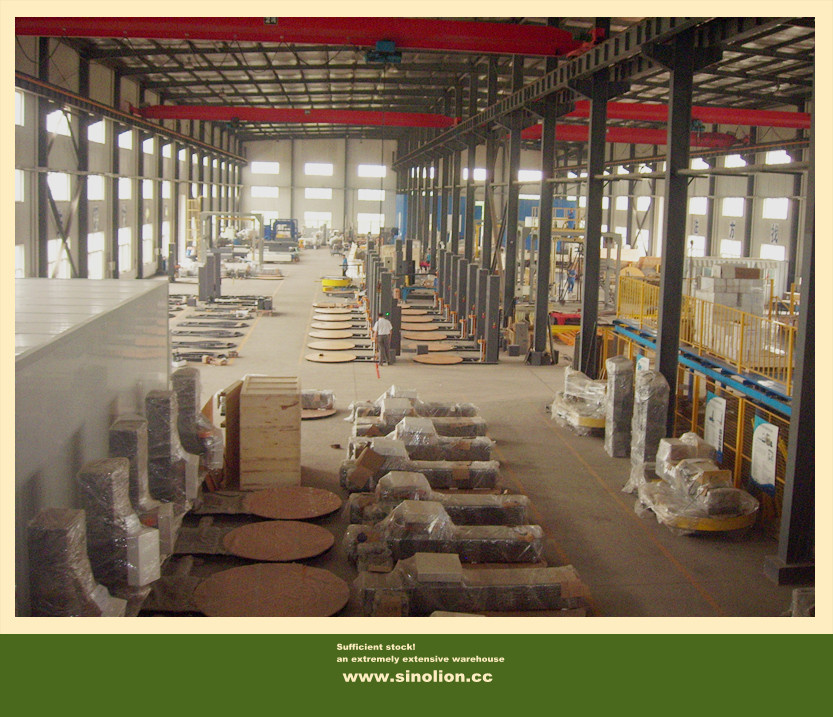

3.· Automatic height sensor of the pallet load through a photo cell which is also able to detect dark loads;4.Separate safety circuit with Pilz CE certified relays.5. Shielded cables and filters, fitted with frequency controlled motors in accordance with electromagnetic Directive 98/37. Service It is important to know that Sinolion has an extensive repair service.Our company also has an extremely extensive components warehouse in order to be able to offer an immediate solution if problems occur.
Intelligent auto packing system and conveying system for more than 10 years time. Complete products like Semi-auto wrappers to fully auto packing and conveying line including the full auto strapper, top-sheet applicator, 45rpm high speed rotary arm wrapping machine and variety of functional packing machines, more information please find in www.sinolion.cc.
Sinolion Machinery is one of the top leader in the stretch packaging industry with emphasis on Quality, Innovation and expertise. An High-technology enterprise in Shandong Province has been over eight years specialize in producing stretch wrapping machines, and also deals with shrink packing machine, strapping machine, taping machine & packaging materials etc. Our products conform to Quality Manage System Standard ISO9001: 2000.
Sinolion Machinery was started, with the vision of creating a "dare to be different company". Different because our research & development facilities is so advanced we design machines that are most economical, reliable and safe to run. Different because we are forever ready in providing our immaculate service to our clients in the industry. Constant contact with our clients will result in a cordial working relationship in a stress free environment. It is indeed very rewarding to learn that the vision has taken off, with local support from all over China, and foreign exports to Europe, North America, Asia etc.
