Product Specifications
| Prod Model: |
TQC-750 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forming Area: |
740mm*480mm |
| Forming Depth (Max): |
125mm |
| Forming Speed(Max): |
30 Recycles/Min |
| Rated Power: |
140kw |
| Sheet Width: |
750mm |
| Sheet Thickness: |
0.3-1.8mm |
| Dimension: |
L8200mm*W2000mm*H3100mm |
Product Description

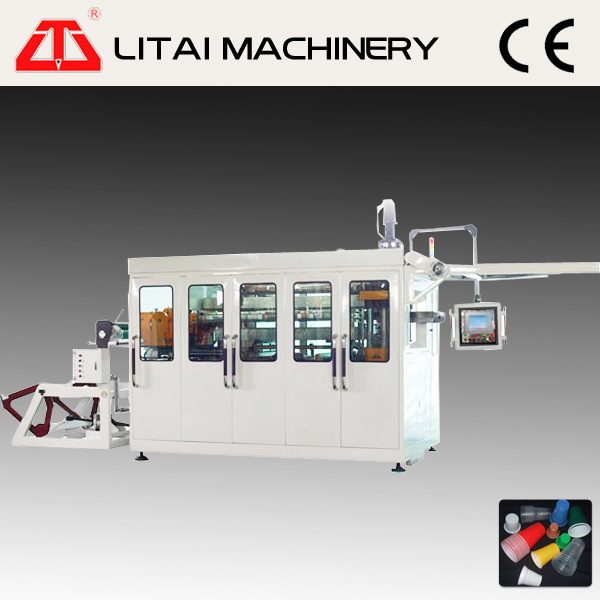

| Plastic Cup Thermoforming Machine |
| Four pillar |
Thermoforming machine
TQC-650B | Mainly for producing cups, container, box, lids, dishes, bowls. |
| Four pillar |
Thermofomring mahcine
TQC-750 | Mainly for cups |
| Two pillar |
Thermoforming machine
TQC-650C | Mainly for producing cups, container, box,lids, dishes, bowls |
Characters 1) PLC and touch screen use Germany brand siemens2) Mechanism movement adds automaticlly oil to lubricate at certain times.3) Servo motor drawing sheet. 4) Mould movement adopts hydraulic pressure drive.5) Stable operation and reliable performance, low noise, high quality. 6) It can produce different products by different moulds.
7) It can finish production in one cycle through sheet feeding, hesting, stetching, forming and side-cutting.
8) One mold has all the functions, like pressure giving, forming, cutting, cooling,
and finished product blowing.
Litai Machinery Co., Ltd. is located in South-Explore Industry Zone, Feiyun Town, Rui'an City, ZheJiang Province of China. It is a company specialized in designing, manufacturing and service producing packaging machinery, plastic machinery, printing machinery and other industrial automation. The company has experienced design engineers and a high-qualified technician team. It is one of the earliest enterprises who have passed the IS09001: 2000 international quality management system among the packing machinery manufacturers. The company set up a restrict rule to deploy the IS09001: 2000 quality management system, as well as quality standards of Quality Administration Bureau of ZheJiang province.
The company awarded the certificate of Reassurance Product and Quality Product of National Standard from Quality Assurance Center of China Light Industrial Product. The company has set up branch offices and service center in Shenyang, Tianjin, Qingdao, Jinan, Suzhou, Yiwu, and the customers located all around the country. The products have exported to Southeast Asia and other countries and districts; All of them were get good reputation.
The company' objective is to be a modernized enterprise and its highest aim is to pursue the perfect satisfied with customers, providing the excellent service to all of customers.
Business Type: Manufacturer/Factory
Registered Capital: 500000 RMB
Plant Area: 30000 Square Meters
Management System Certification: ISO 9001,ISO 20000
International Commercial Terms: FOB, EXW, CFR, CIF, Others
Terms of Payment: LC, T/T, Western Union
Average Lead Time: Peak season lead time: more than 12 monthsOff season lead time: 3-6 months
Number of Foreign Trading Staff: 11~20 People
Overseas Agent/Branch:
| Address: | Xinxing Industrial Park, Pingyang County, Wenzhou City, Zhejiang Province, China, Pakistan |
| Telephone: | 86 - 577 - 65558777 |
| Address: | Xinxing Industrial Park, Pingyang County, Wenzhou City, Zhejiang Province, China, Philippines |
| Telephone: | 86 - 577 - 65558777 |
Main Customer(s):
| Company Name: | Edmond Mukahadira |
| Country / Region: | Mozambique |
| Products You Supply: | Four-station plastic thermoforming machine |
| Company Name: | Ben |
| Country / Region: | Philippines |
| Products You Supply: | Four-station plastic thermoforming machine |
| Company Name: | Adham |
| Country / Region: | Pakistan |
| Products You Supply: | Four-station plastic thermoforming machine |
| Company Name: | Jonathan Maala |
| Country / Region: | South Africa |
| Products You Supply: | Fully automatic three-station plastic thermoforming machine |
Export Year: 2001-09-09
Export Percentage: >90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Have Own Export License
Factory Address: Nongchang Road, Haitu Community, Haixi Town, Pingyang County, Wenzhou City, Zhejiang Province, China
R&D Capacity: OEM, ODM, Own Brand(LITAI MACHINERY)
No. of R&D Staff: 11-20 People
No. of Production Lines: Above 10
Annual Output Value: US$10 Million - US$50 Million
