Full Automatic Ball Pen Packaging Machinery (blister +card)
Product Specifications
| Prod Model: |
DPZ-570D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
5200*1200*2200mm |
| Weight: |
3000kgs |
| Automatic Grade: |
Automatic |
| Type: |
General |
| Application Field: |
Textiles |
| Packaging Material: |
Plastic |
| Driven Type: |
Electric |
| Packaging Type: |
Blister and Card Together |
Product Description
Model DPZ-570D full automatic blister card packing machine
1. Packaging Material : PVC /PET+Paper Card. Machine widely used for daily necessities (toothbrushes,battery), cosmetics (lipstick) ,stationery ,small hardware, ,etc packing.
2. Work Process : roll plastic PVC --forming--cutting--feeding goods(manual or automatic decide by goods shape)--automatic placing cardboard-- sealing--output. 3. Advantage of machine:I .save labor: only need 1-2 workers operate machineII. save material, high capacity: : Max forming area : 480*160mm. Max paper card size: 570*200mmIII.: low noise and easy operate. 4.Technical Data:| Model | DPZ-570D |
| Max cutting speed | 15-25times/min |
| Max blister forming size | 480 ×160(mm) |
| Max card size | 570×200(mm)(200g-700g) |
| Adjustable travel scope | 40-160(mm) |
| Max forming depth | 40(mm) |
| Total power | 12KW |
| Power(Three-phase four-wire) | 380v,50HZ |
| Air compressor flux | ≥0.4m3/min |
| Overall dimensions(L×W×H) | 5200×1200×2200(mm) |
| Weight | 3000kg |

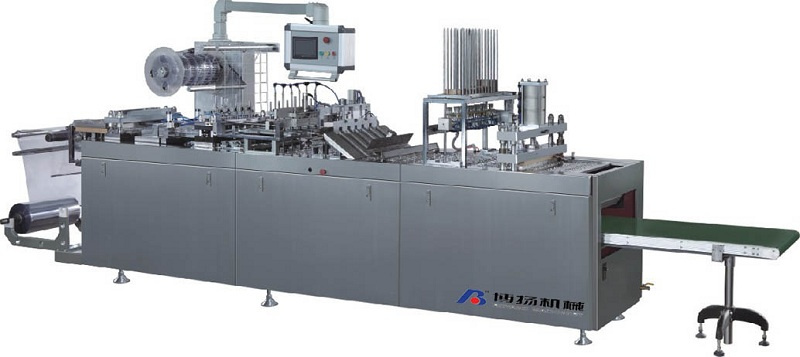

5.MACHINE PICUTURE:
6. OUR PATENTS:
Wenzhou Boyang Packaging Machinery Co., Ltd. is located in the famous historical city of South Zhejiang at the coast of the East China Sea --- Ruian City which is reputed as China Packing Machinery City.
Our company specializes in producing paper plastic packing machines. With complete production equipment, powerful technical strength, stable quality and reliable performance, the products are sold well throughout the world with high praise. It is suitable for paper plastic packing of such products as food, medicine, medical equipment, toys, hardware, small appliances, electronic, automobile and motorcycle, daily necessities, cosmetics, rubber products, tableware, kitchenware, sports and other related industry.
With the development, social progress and clients continuously demand, we will continue to expand, innovation to develop more advanced and applicable equipment to meet the increasingly enhanced demands for exquisite outer packing in society.
We will describe "pragmatic innovation, transcendence of EGO pursuing excellence" as business concept, "people comes first and customer is supreme" as service concept, "the influence of the culture, the system of the restraint "as management concept, and we will build a new and modern enterprises. We look forward to your work together to create a better future!
