Product Specifications
| Prod Model: |
XYL-QZD-CIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cleaning Type: |
Hot Water Cleaning |
| Cleaning Way: |
Clean in Place |
| Machine Type: |
Cold, Hot Water High Pressure Cleaning Machine |
| Clean Type: |
Clean-In-Place (CIP) |
Product Description

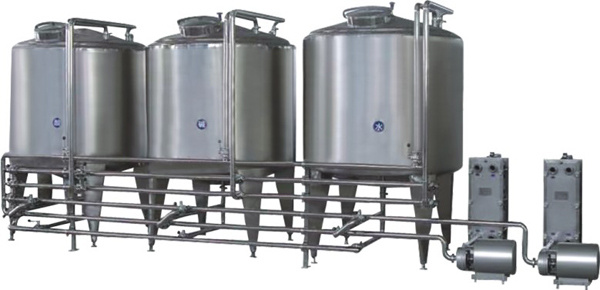

Full-automatic CIP Cleaning Machine
Full-automatic CIP
Clean-in-place equipment is applied for in-place cleaning of material tubes and vessel equipment in milk and juice industries. The full-automatic plate heat exchanger can be heated on line; All the processing equipment of the CIP system forms a recycling cleaning circuit. The full automation function will automatically set up acid and alkali concentration according to the customer setup and the cleaning procedures, temperature and time are optional. All the control parts of this equipment are imported excellent products.
1, the guarantee of cleaning effect and improve the safety of the products;
2, save operating time, improve efficiency;
3, save labor and ensure the safe operation;
4, save energy such as water, steam, reducing the dosage of detergent;
5, which can realize large-scale production equipment, high automatic level;
6, prolong the service life of production equipment;
7, CIP cleaning system has a single pot double tank and tank for the user to choose from, more have separate CIP cleaning system and one-piece CIP cleaning system.
|
Specification |
CIP-0.5 |
CIP-1 |
CIP-2 |
CIP-3 |
CIP-4 |
|
Acid Tank(L) |
500 |
1000 |
2000 |
3000 |
4000 |
|
Soda Cans(L) |
500 |
1000 |
2000 |
3000 |
4000 |
|
Hot Water Tank (L) |
500 |
1000 |
2000 |
3000 |
4000 |
|
Heating Mode |
Coil, plate, tube heating, electric heat pipe heating |
|
CIP Pump |
10T/H |
10T/H |
20T/H |
20T/H |
30T/H |
|
Pump Head (m) |
24 |
24 |
36 |
36 |
36 |
|
Pump Power(kw) |
2.2 |
2.2 |
4.0 |
4.0 |
5.5 |
Zhangjiagang city XY-LONG machinery Co., Ltd is a professional manufactory located in zhangjiagang city jinfeng town, we have more than 10years experiences on beverage machinery.
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry machine in China, especially model QGF series barreled production line.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 5000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 5000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon.
All kinds of water treatment equipment.
PET perform inject and blowing-stretching machine. Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit our company. Thank you!
