Product Specifications
| Prod Model: |
HIGHFULL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Roll Forming |
| Processing: |
Metal Forming Machine |
| Method: |
Hydraulic Pressure |
| Forging Forming Method: |
Mold Forging |

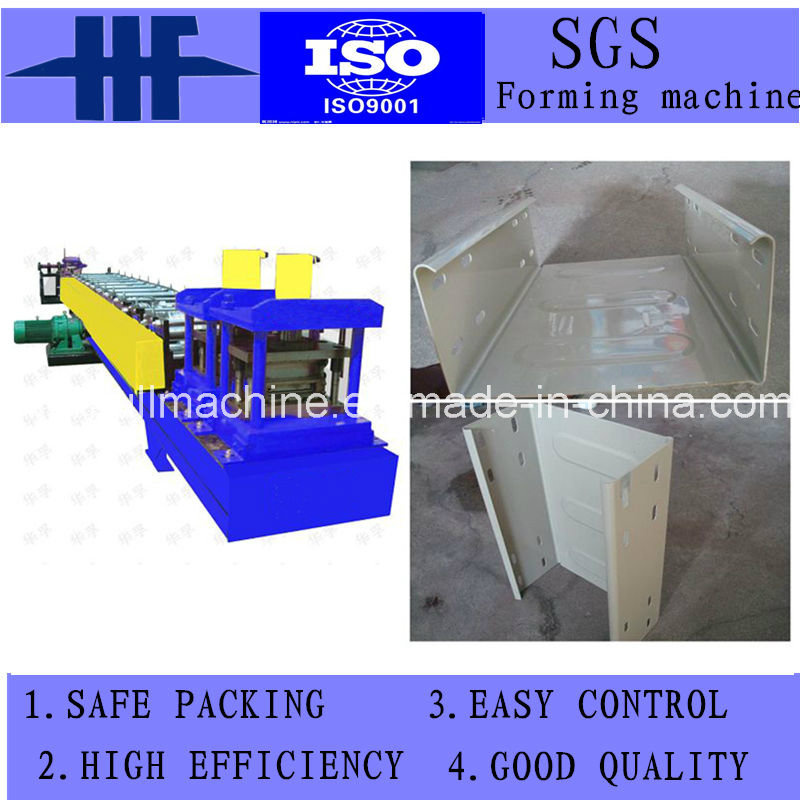

Product Description
1.technical processing
decoiler--leveling--servo feeding--punching--cutting--feeding frame--forming machine--out table
2.main equipment
decoiler,main forming machine,hydraulic cutting,electric cutting ,electric system,hydraulic system,product stand
3.technical parameter
3.1decoiler
3.1.1the width of material sheet:150-860mm
3.1.2the thickness of material sheet:0.6-1.0mm
3.1.3the inner of diameter:508mm
3.1.4maximun outer diameter:1300mm
3.1.5the maximum loading of decoiler:8t
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
| Loading capacity | 5T |
| Uncoiling width | 508mm(according to the profile) |
| Inner diameter: | 480-520mm |
Feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee
that the products are neat, parallel and everything is uniformity.
| Material of axis | 45#steel |
| Number | 3 up,4 down |
| Diameter of axis | 65mm |
| Forming round | Material bearing steel (cr12quenching 60-62 °C |
3.2cutting machine
3.2.1hydraulic cutting
3.2.2blade and mould material:Cr12 ateel with quenched treaded 60-62
3.3control system
3.3.1PLC
3.3.2coder
3.4hydraulic system
3.4.1power:22kw
3.5main forming machine
3.5.1shaft material:45#steel,bearing steel outer diameter 65mm
3.5.2main motor power:22kw
3.5.3forming speed:3-6m/min
3.5.4voltage:380v,50hz
3.5.5roller station:16 station
Terms:
1. Delivery: According to customers' requirement
2. Package: Export standard package for container
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need)
4. Delivery date: Within 30 working days after receiving deposit
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the
equipment.
