Product Specifications
| Prod Model: |
LC-HR108 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
LC, China |
| Certificate: |
CE Standerd |
| Machine Size: |
1900 * 1200 * 1600 Mm |
| Printing Speed: |
4000 PCS Per Hour |
| Machine Of Weight: |
800kg |
| Power Supply: |
AC380V, 50 MHz |
| Total Power Of Machine: |
30 Kw |
| Color & Page: |
Double Faced Multi Colors |
| Structure: |
Platen Press |
| Style: |
Screen-process Printing Press |
| Type: |
Automatic Screen Printing Machine |
Product Description

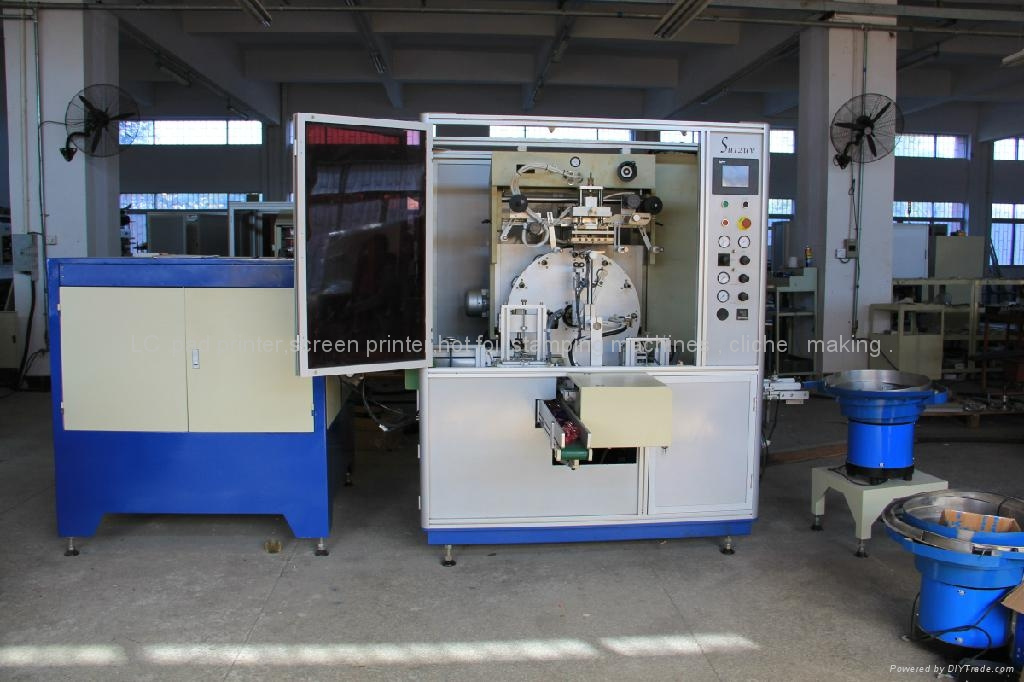

Full Automatic cell phone case printing machine LC-HR108
Application:
Electron products, USB, Mouse, cell phone case household effects packaging case box and other industries within the plane objects, such as electronic products, shell, toys, etc.
LC - HR108
Printing area:
120 x120mm (can make to order a larger size)
Printing speed
OUTPUT: 4000PCS / hour =65PCS/ONE MINUTE
Power requirements
AC380V.
Machine Volume (length x width x height)
1900 x 1200 x 1600
Machine weight:
800 kg.
Function description:
1, synchronous feeding.
2, flame treatment system
3, mechanical automatic printing system
4, Automatic unloading system
5, pneumatic screen frame automatic up-down (with screen washing), PLC touch screen operation, low pressure, overloading and overheating alarm automatic monitoring and other functions
6, choose UV drying system or IR drying system different ink for different drying system...
7, the whole machine electrical components and the control system adopts the German and Japanese components, ensure the machine running stable.
Technical parameters:
Price TermsFOB SHENZHEN PORT CHINA
PackingWOODEN CASE
Lead Time25 DAYS AFTER DEPOSIT
Standards CertificateCE
Volum6.5CBM
Application areaElectron products, USB, Mouse, cell phone case household effects packaging case box and plane objects electronic products, shell, toys, etc.
Gross Weight900KG
Main PartsMAIN MOTOR: ITAly: SITI
Free Fittings squeege, screen, ink
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
