Clay Brick Making Machines New Technical China block machinery
As high-performance vacuum extrusion equipment, it is largely used in extrusion forming of various hollow bricks made from coal gangue, shale, coal dust and other industrial solid wastes.
Introduction:
Clay brick making machine, also named double stage vacuum extruder, is suitable for producing
all kinds of howllow bricks, cell bricks and solid bricks with clay, shale, coal gangue, as well as
slag etc as its raw materials.
Characteristics:
Vacuum extruder is with many advantages, such as reasonable design, compact structure,
steady running, easy operation, low consumption and so on. The spiral reamer adopt wear-resistance metal spray painting technology; the upper stage mixing shaft, the reamer shaft,
and the body of the machine are all passed the aging, quenching and tempering process;
The reducer gearwheel adopts the spiral pressure plate patent technology on the clutch
largely prolonged the service time of the machine.
1. It can produce Hollow and Solid clay bricks with different sizes;
2. Energy saving;
3. High extruding pressure ;
4. Vacuum extruding;
5. Greater Intensity of green bricks, and it can stacked layer by layer (saving area for natural drying)
6. High efficiency and Low investment.
7. Lower noise and reliability
8. Compact structure and stable performance
9. Reasonable investment can be shortly recovered
10. Easy maintenance and management etc
We have 3 models of extuder
1. Non-vacuum extruder machine
2. Energy saving vacuum extruder machine
3. Double stage vacuum extruder
Non-vacuum extruder machine main to produce small size solid bricks , it is suitable for manual small brick factory in India, nepal,Africa...
Energy saving extruder machine main to produce common solid size of solid / hollow brick blocks, it is suitable for small dryer chamber of drying bricks , hoffman kiln , tunnel kiln fired production way .
Double stage vacuum extruder machine main to produce big holes hollow bricks , tiles . it is suitable for single layer dryer chamber drying production technical, automatic gas fired system tunnel kiln production line .
Specification Model | Capacity (pcs/hr) | Power Requirement (kw) | Rotate Speed(t/m) | Exterior Dimension (mm) |
EVS40B | 8000-11000 | Y6-90 | 35 | 4580*1620*1700 |
EVS45B | 10000-13000 | Y6-110 | 34 | 5280*1700*1850 |
EV40B | 8000-12000 | Y6-37+75 | 40/35 | 5660*1680*2150 |
EV45B | 10000-13000 | Y6-45+110 | 42/34 | 6370*1910*2350 |
EV50B | 11000-16000 | Y6-55+132 | 38/25 | 6750*1880*2540 |
EV45A | 10000-13000 | Y6-90+45 | 42/34 | 6370*1910*2350 |
6750*1880*2540 |
EV50A | 9000-12000 | Y6-55+160 | 38/25 | 4400*2200*1250 |
5600*1800*2500 |
EV55A | 14000-18000 | Y6-55+200 | 27/20 | 4400*2200*1250 |
5600*1800*2500 |
EV60A | 180000-25000 | Y6-90+250 | 27/20 | 7500*2900*2800 |
7500*2600*2640 |
EV75A | 23000-28000 | Y6-315+110 | 27/20 | 8200*7300*3400 |
EV50/45A | 11000-15000 | Y6-55+132 | 38/25 | 4600*2200*1300 |
4600*1300*2400 |
EV60A-01 | 18000-25000 | Y6-75+250 | 35/30 | 7500*2900*2800 |
7500*2600*2640 |
We supply following brick making machine and brick making equipment
1. Belt type box feeder, plate type box feeder
2. Primary roller crusher, fine high speed rolling crusher, jaw crusher , hammer crusher
3. Double shaft mixer , double shaft mixer and extruder
4. Energy saving vacuum extruder, double shaft vacuum extruder

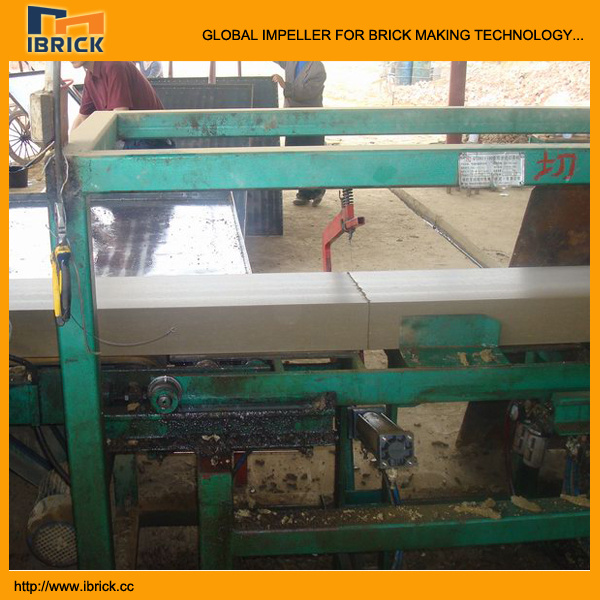

5. Automatic brick cutter system
6. Green bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kiln
10. kiln automatic control and monitoring system
11. Brick kiln equipment
12. Automatic brick loading and unloading machine
13. Automatic brick packaging machine
14. Automatic robot brick setting machine
15. Automatic brick stacking machine
16. Brick dryer and tunnel kiln design and construction
17. Technical provide and technical supervision
18. Undertake turn-key project
If you want to set up a new brick plant or plan to purchase automatic brick making machinery and brick equipment, please contact with us at any time .
Welcome to contact with us online :
2. Phone Number: 0086-15991710216
4. Website: www.ibrick.cc
IBRICK Company Introduction : http://youtu.be/ItIqVJuR5mM
IBRICK is the technology initiator whom firstly professional supply clay brick sintering two-step stacking-firing process in the world. We always implement rigorous, secure, and integrated industrial chain management and provide professional engineering management, technology solutions, equipment purchasing and etc. For the clay sintering hollow bricks, decorative brick, insulating block, paving bricks, western-style tiles; Split brick projects all around the world. Our service include below items.
The inspection of raw materials---raw material industrial test, providing specific and targeted technology solutions according to scientific data tested;
The complete technology design--- material processing, molding, drying, firing, packaging, unloading and etc.
The complete production line equipments------- supply and installation the most economical and high-quality equipments.
The construction of complete set production line-----contracting to build the EPC projects for building materials.
The accurate and timely local services-------- providing the production management service, the lifelong technology service support, make every projects to create more value for each users.
We are willing to make our progress with you hand in hand and become impeller for world-wide brick-making cultural by our constant innovation and non-stop efforts.
