Full automatic embosser rewinding toilet tissue paper production machine

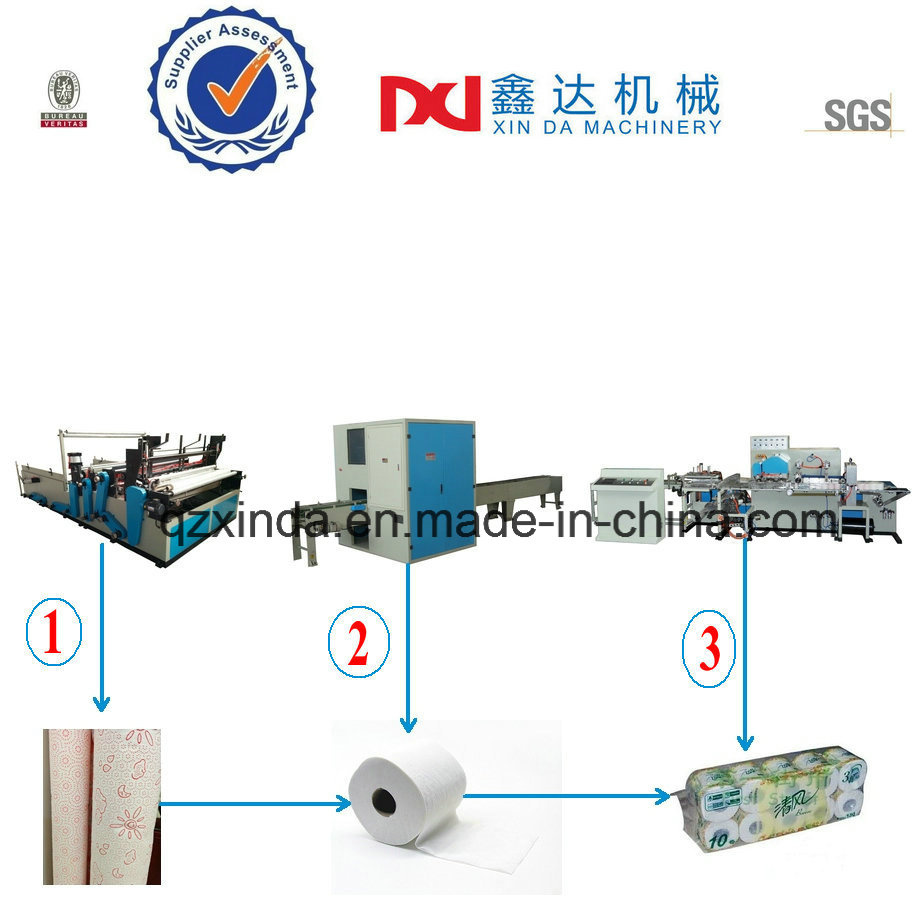

CIL-SP-A-A Full-automatic toilet paper production line is full-automatic production line, which composed of 1 set of CIL-SP-B Full-automatic high-speed rewinding and perforated toilet paper machine, 1 set of CIL-SP-280 automatic log saw cutting machine, 1 set of CIL-SP-398 multi-rolls packing machine and convey belts.
A, For paper width up to 2700mm to make bathroom tissue, kitchen towels. Equipped with variable perforation length system to satisfy any length need. The speed of this rewinder is up to 325m/min, 6 cycles per minute, including:
Two steel to rubber or steel to wool embossing units.
Two or three backstands, with a double or three belt driving system, for jumbo rolls up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.
B, This CIL-SP-A-A Economical line will automatically change core and unload the finished products, and automatically trim and seal the tails of the logs, leaving a lip about 20mm to make it easy for consumers to start using the rolls without tearing the paper at the seal.
C, All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
D, The motor power is 7.5kW. Variable frequency control depending on the final specifications and requirements.
E, This line is to be controlled by a PLC of your choice.
| CIL-SP-A-A |
| Parent roll width | 2500mm |
| Parent roll diameter | Up to Φ1500mm |
| Core inside diameter of parent roll | Φ3"(76mm)or as requested
by customer |
| Machine speed | 0-250m/min depending on
model |
| Operating speed | 0-200m/min, 6 cycles(logs)/min |
| Finished roll outside diameter | Bathroom tissue:Φ80-150mm |
| Finished roll outside diameter | Kitchen towel:Φ80-150mm |
| Perforation pitch | Variable, any size needed |
| Sheet count | Increments of one sheet |
| Inner diameter of core of finished product | Φ25-80mm |
| Quality of raw material | 1 or 2 plies ,15-30g |
| Installed power | 7.5Kw~15Kw |
