Product Specifications
| Prod Model: |
FL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
Fiber Laser |
| Control: |
CNC |
| Current: |
AC |
| Usage: |
Metal & Nonmetal |
| Engraving Machine Type: |
Fiber Laser Marking Machine |
| Max. Laser Power: |
10W 20W |
| Certifications: |
CE, FDA, SGS |
| Max. Marking Speed: |
7000mm/S |
| Machine Dimension: |
700mm*700mm*1450mm |
| Min. Character Height: |
0.2mm |
Product Description
Highlights:
The laser beam quality is perfect for high-precision marking application.
The structure is compact and portable.
The output energy is stable and reliable, 100, 000 hours maintenance free.
The power consumption is very low, it is just 0.5 KW/Hour.
Professional software which strong functions and easy-operating.
Can be operating in 24 hours and severe environment.
Zero maintenance
Product Description

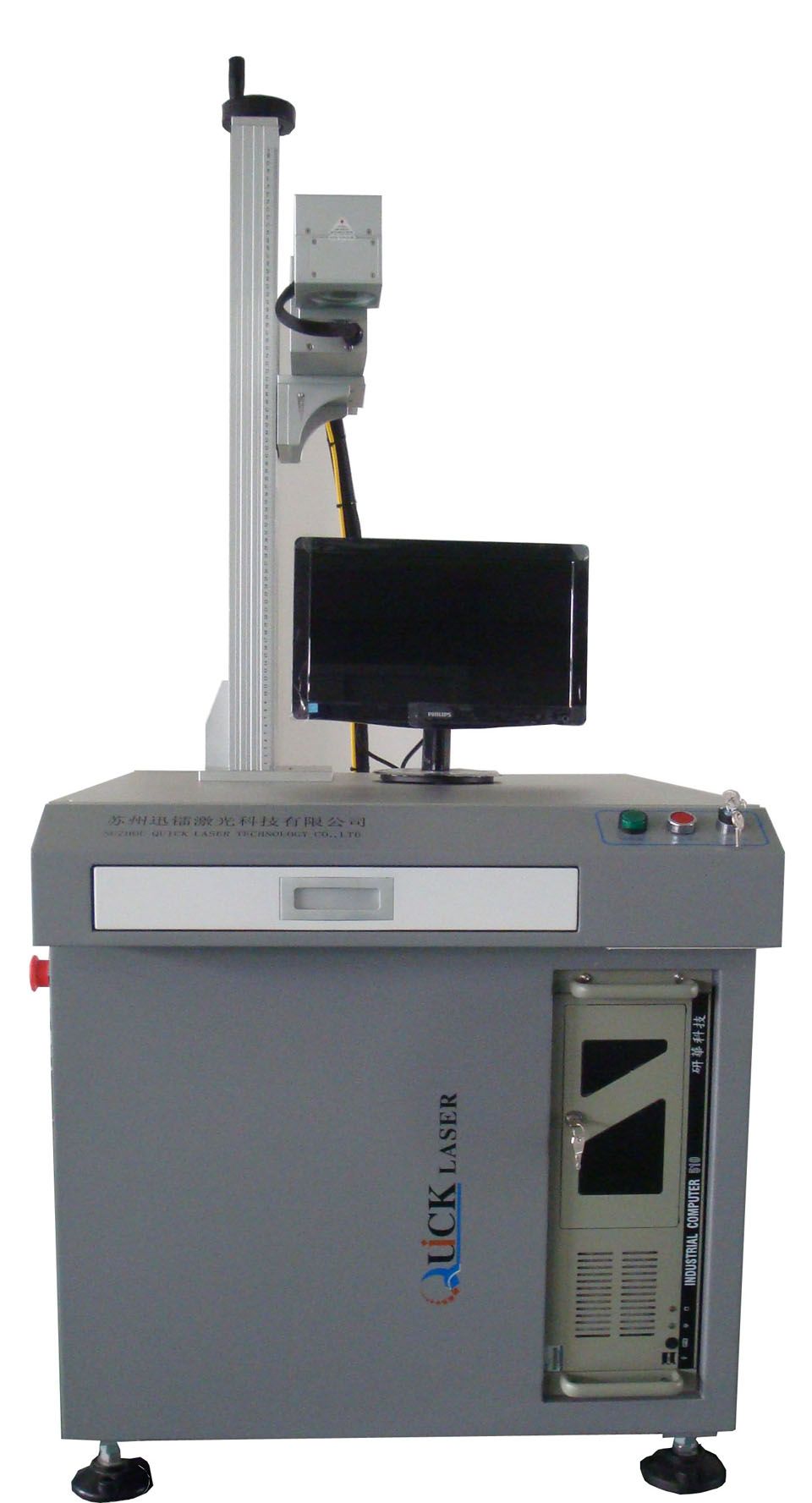

The Quick Laser FL-Series Laser Markers, available in two different power levels, the 10W Model QL-FL10, the 20W Model QL-FL20. The laser deliver a high power beam directly to the marking surface via flexible fiber cable than mark character, digital, date codes, barcode, logo etc.
Fiber laser marker composed by:
Laser system: Visible red aiming, fiber laser module, galvanometer assembly, flat- filed lens
Control system: Laser source power unit, red beam power unit, galvnometer power unit, PC, USB card, marking software, USB doggle
Frame and table
Application
The machine can be used in components of automobile and motorcycle, astronautic apparatuses, chips of integrate circuit electronics, packages of food, drink and cigarettes, keys of mobile phone, batteries, electric apparatuses, fittings and peripheral equipments of computer, ironware tools, stainless steel wares, electric products, communication products, medical devices, sanitation, cleaning and bathing wares, clocks and watches, jewelries, industrial bearings, electric wire and cable, garment. It can mark both words and graphs
Look for overseas agents
We are looking for overseas agents. Hope to establish long-term cooperative relationships with you.
|
MACHINE MODEL |
QL-FL10 |
QL-FL20 |
|
LASER POWER |
10W |
20W |
|
LASER WAVELENGTH |
1064nm |
1064nm |
|
FIBER LENGTH |
2.5m |
2.5m |
|
DIODE-PUMP MODULE LIFE |
100.000 hours |
100.000 hours |
|
MARKING SPEED |
< = 7000mm/s |
< = 7000mm/s |
|
MARKING DEEPTH |
0.01-0.2MM |
0.01-0.2MM |
|
MIN. LINE WIDTH |
0.01MM |
0.01MM |
|
MIN. CHARACTER HEIGHT |
0.2MM |
0.2MM |
|
MARKING FILED |
(100*100mm (focal length f=160mm)
Optional
145*145mm(f=210MM)
175*175mm (f= 254mm)
|
(100*100mm (focal length f=160mm)
Optional
145*145mm(f=210MM)
175*175mm (f= 254mm)
|
|
POWER SUPPLY |
220V 50HZ / 2A |
220V 50HZ/2A |
|
POWER CONSUMPTION |
500 W/ hours |
500W/ HOUR |
|
COOLING |
AIR |
AIR |
|
POSITIONING |
Visible red power |
Visible red power |
|
OPERTAION TEMPERATURE |
25-28 DEGREEN |
25-28 degreen
|
|
HUMIDITY |
5% to 75% (no condensation) |
5% to 75% (no condensation) |
Located in Singapore Suzhou Industrial park, our company integrate the laser equipment, frock and Automatization together, it's a professional dedicated to complete sets of equipment with laser research and development, production and sales of high tech enterprise. With international advanced technology of no deformation marking and welding follow slot automatically.
QUICK LASER has three kinds of welding, cutting and marking, continuous welding series, fiber transmission welding series, stiff optics general welding series, high speed galvanometer welding series, high accuracy 3D fiber laser cutting series, large breadth fiber laser cutting series, large breadth YAG laser cutting series, fiber series, side pump, end pump diode series, CO2 series, green laser series, ultraviolet series etc more than 30 series of laser products. QUICK LASER main products have gained the Europe CE and American FDA certificate.
Quick laser has passed the SGS ISO9001 quality control system, international AS auditing etc, the laser products have sold to Germany, Italy, Britain, France, America, Australia, Korea, Japan, Taiwan, Singapore, Hungary, Turkey, Iran, Pakistan, South African etc more than twenty countries and regions.
QUICK LASER has founded a perfect sales and after-sales service network, established the center for marketing management: Domestic sales department, foreign trade department, and customer service department, QUICK LASER's sales and after-sales service network covers most cities of the domestic, provide the pre-sale, sale, after-sales in time. We can provide 24 hours uninterrupted consultation and services for oversea customers.
