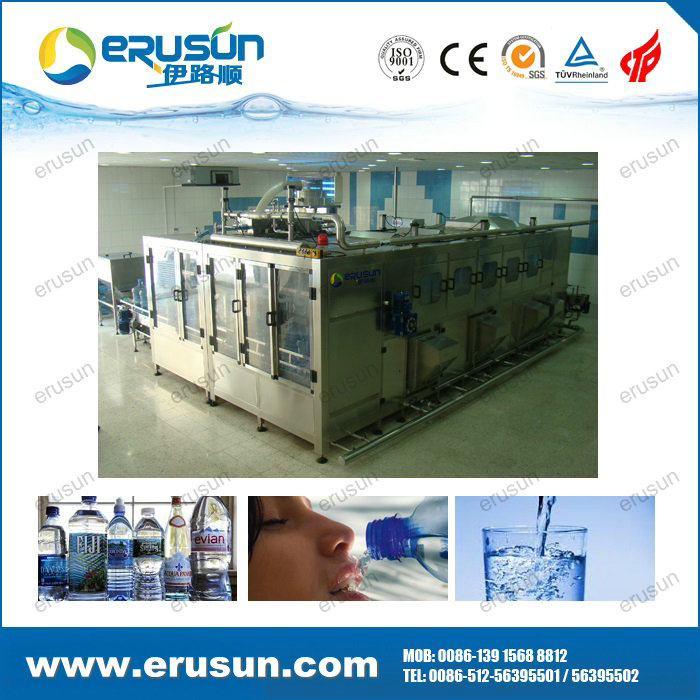

Full Automatic Filling Machine for 5gallon Barrel 450b/H

Product Specifications

Prod Model:	QGF
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Model:	Qgf
Capacity:	450bph
Machine Brand:	Yls
Condition:	New
Type:	Volumetric Filling Machine
Automatic Grade:	Automatic
Material Type:	Liquid
Filling Valve Head:	Multi-Head
Feed Cylinder Structure:	Single-Room Feeding
Dosing Device:	Plunger
Packaging Container Lifting Structure:	Chute Lifting
Structure:	Linear
Packaging Type:	Bottle
Packaging Material:	Plastic
Filling Principle:	Gravity Filling

Product Description

Inner washer
Features:
The detergent liquid tank is equipped with heat-resistant double-layer material, liquid level detector, temperature controller, alarm device and quick-flow chute to reduce heat loss and reduce energy consumption.
Ventilation hole connector is installed inside the machine, and help to reduce the concentration of the mirage inside the machine to improve the detection accuracy.
Bottle mouth sterilizing device.
Automatic chemical dosing system, automatic water replenish mechanism, liquid level detector, and sampling valves are installed for the chemical tanks.
Inserting-type rotary nozzle and spherical nozzle, no dead angle rinsing to guarantee the quality.
Uniform water recycling pipeline for all the released washing mixture.


Linear filler:
The filler is another core of the whole 5 gallon bottle water production line. After our hundred times of experiment, the multi-pressure, multi-flow and inverter-controlled non touch filling method is succeed, this filling method can guarantee the filling speed and the filling accuracy, at the same time, there is no over flow water.
Features:
Non-touch filling, do not hurt the bottles
No secondary pollution,
Inverter-controlled and multi-pressure filling, to save the water and energy.
The traditional water return pipe is canceled, no waste water
All parts contacting with the product water are made of AISI304 or AISI316L stainless steel, no dead angle polished, and easy to clean.
Filling chamber is isolated-designed, with optional 100 degree air filtration unit installed on the top ceiling if customer required, ensuring hygiene of product water
Rotary filler:
Fierce competition is the engine for bottled water industry to continually update their filling machine: High filling speed, better filling effect. It is the rotary filler that becomes their best choice.
Features:
Pressure filling method.
All parts contact with the product water are made of food grade 304a or 316L stainless steel.
Stable and high speed filling.
The filling level is adjustable.
High hygiene standard


Capper:
The capper has two types, belt type and hammer type, it's the device to tight the caps after filling.
Feature:
Belt type capper has good continuity and strong sealing.
The capper is highly compatible with various heights of bottles.

Model	QGF-150	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200	QGF-2000
Filling heads	1	2	3	4	6	8	12
Volume(L)	18.9	18.9	18.9	18.9	18.9	18.9	18.9
Barrel size (mm)	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490	φ270×490
Capacity (b/h)	150	300	450	600	900	1200	2000
Gas pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6	0.6
Gas consumption (m3/min)	0.37	0.6	0.8	1	1.5	1.8	4.5
Motor power(KW)	1.38	3.8	3.8	7.5	9.75	13.5	15.5
Rated voltage(V)	380/50Hz	380/50Hz	380/50Hz	380/50Hz	380/50Hz	380/50Hz	380/50Hz
Weight (kg)	680	1500	2100	3000	3500	4500	11800
Outline dimension (mm)	3790*650*1550	3550*800*1800; 2800*1100*1800	3550*1200*1800; 3800×*1100*1800	3650*1500*1800; 3800*1100*1800	2200*1860 *2700	2560*2350 *2750	3100*2800 *2750
