Product Specifications
| Prod Model: |
SZ-XB351 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
PLC |
| Type: |
Glass Stright Line Beveling Machine |
Product Description

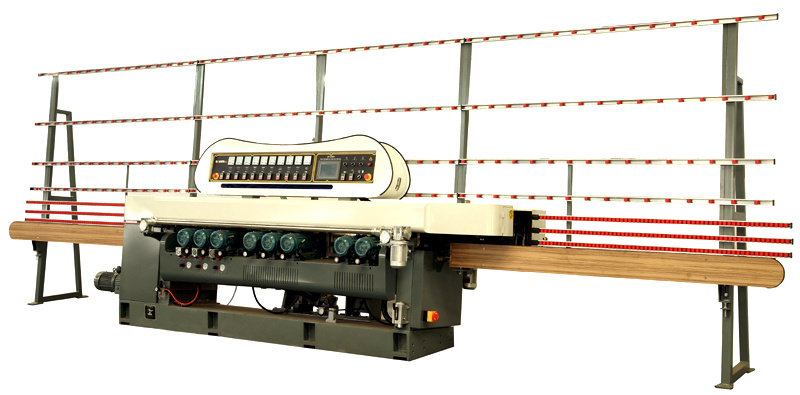

Glass Straight-Line Beveling MachineSZ-XB351
1.This machine is professional for beveling various mirror and glass with polishing on the side edge, the mini.glass size can be 100*100mm.
2.Input and output transmission adopt timing belts, which improve the stability of transmission.
3.To make grinding-volume adjustment easy and convenient, the input and output adopt Synchronous rise and lower system.
4.All the parameters are set by touch screen and this machine is equipped with PLC control.
5.Transmission speed can be adjusted on touch screen directly and the variable frequency motor for polishing.
6.ABB Spindles, Schneider electronic, stainless steel water tank and independent polish tank with automatic stirrer for cerium.
7.The machine base, beams and base of spindle are made of excellent cast iron. All the cast and steel parts are treated by tempering to ensure the best performance and stability of machines in different ares of all over the world.
Min size | 100*100mm |
| Thick | 3-19mm |
| Angle | 0-25 |
| Max bevel | 40mm |
| Speed | 0.5-5m/min |
| Power | 22kw |
| Spindles | 9 |
| Dimension | 6500*1300*2500mm |
Sager Tec., is a professional designer and manufacturer for machinery, which specialized in glass industry. At initially, Sager was dedicating to design and produce glass laminating equipment, as long as providing solution for laminating glass processing. The products have been sold to USA, Europe, Australia, South America etc., where more than dozens of countries in past few years, With a fast growing and developing, Sager was starting up the project for new glass processing machines in 2007, by optimized cooperation and source integration, we are ready and confident to provide you qualified machines basis on 10 million fixed capitals, 35 technicians and 396 employees. Now, the products range is increased, to which including competed PVBLaminating production line, EVA laminating furnace,
And materials, all the type of grinding machines, as long as washing machines and other glass processing equipment. Our business philosophy is " source integration, technology renovation, ensures quality and service clients" we promise only to what we can achieve. Beijing provide qualified and advanced products for our clients in glass industry is our mission.
