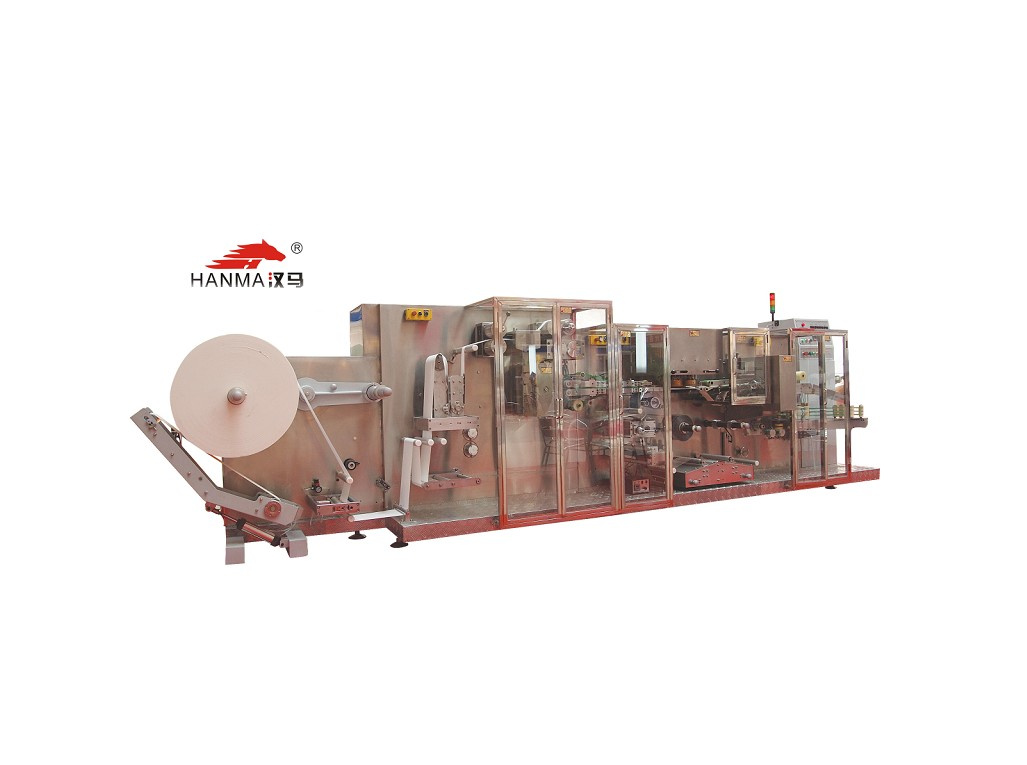

HM-P300 wet tissue machine is easy to understand process. All folding, humidifying, cutting and packing completed in one motion. It is fully automatic machine which with the highest production speed in China, it can be 250~300packs per minute.
Main features
1. Automatic to exchange paper roll
2. Tension control
3. Automatic longitudinal fold
4. Closed circulating humidifying equipment using new technology to control water pressure, so the water not leakage.
5. With scientific design and compact structure, easy operation and maintenance
6. Machine design as to CE standard, with safety door and E-stop and relative safety system.
7. Main mechanical parts made by CNC, main electric parts from world famous brand.
8. Auto adjust temperate as to set parameters for those electrical thermo parts.
9. Transmission, back driven belt
10. Adjust phase to be synchronized at machine running
Production Speed |
250~300 packs/per min |
Power |
4.5kw/h |
Mostly Motor |
Servo |
Machine Dimension |
5.9*2.5*2m(add bucket) |
Machine Weight |
1.42t |
Unfold wet tissue size |
200*(200-180)mm or designated by customer |
Folded size |
95*65mm(L*W)( transverse three fold or five fold) |
Packing size |
(130± 5)*(70± 3)mm |
Suitable raw material |
Spunlace nonwoven, dry air-laid paper |
Raw material specification |
Spunlace nonwoven: 45 g/m2 |
|
Dry air-laid paper: 50~60g/m² |
Packing film |
OPP/PET, PE*PET |
Packaging film thickness |
0.035-0.05mm |
Working System |
Fully automatic production line |
Main form of machine |
Stainless steel 316 (in case rust) |
Electrical brand |
Import ( also can change as your reqirement) |
Control system |
Color touching screen; PLC control system |
