XY-TQ-A-B Full-automatic Roll Kitchen Towel Paper Production Line
XY-TQ-A-B Full-automatic Roll Toilet Tissue Paper Production Line

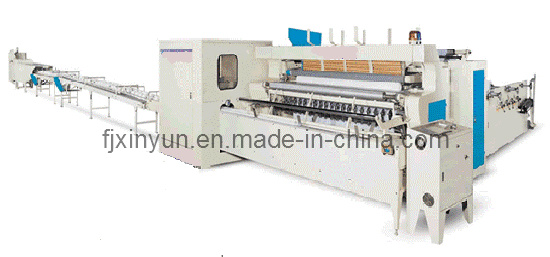

XY-TQ-A-B Full-automatic towel paper production line is a full-automatic production line, which composed of one set of XY-TQ-92A/75A Full-automatic high-speed rewinding and perforated toilet paper and towel paper machine (it can be two sets according to requirement), one set of XY-AI-280 roll paper cutting machine, one set of XY-AI-398 multi-rolls packaging machine, one set of XY-SD-A paper core making machine and convey belt.
A. For paper width up to 2700mm to make bathroom tissue, kitchen towels.
Equipped with variable perforation length system to satisfy any length need.
The speed of this rewinder is up to 325m/min, 6 cycles per minute, including:
Two pairs of steel roller to rubber roller or two pairs of steel roller to wool roller
Embossing units.
Two backstands, with a double belt driving system, for jumbo rolls up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.
B. This XY-TQ-A-B Economical line will automatically change core and eject the paper roll, and trim automatically, spray glue on paper roll.
C. Automatic glue to laminate two ply together.
D. All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
E. The main motor power is 7.5kW. Variable frequency control depending on the final specifications and requirements.
F. This line is to be controlled by a PLC of your choice.
|
XY-TQ-A-B |
|
Width of raw material |
1750mm--2800mm |
|
Outside diameter of raw material |
Max.Φ1500mm |
|
Inner diameter of core of raw material |
Φ3"(76mm) or requested
by customer |
|
Machine speed |
0-325m/min(depending on
model) |
|
Operation speed |
0-300m/min, |
|
Outside diameter of finished product |
Toilet paper roll:Φ80-150mm |
|
Outside diameter of finished product |
Towel paper |
|
Distance for perforation |
Variable, any size needed |
|
Sheet count |
Increments of one sheet |
|
Inner diameter of core of finished product |
Φ25-80mm |
|
Quality of raw material |
1or 2 ply,15-45g |
|
Installed power |
7.5Kw~15Kw |
