Full Automatic Laundry Drying Machine
| Price: |
US $ 3300-3400/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
HGQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Huayi |
| Capacity: |
15kg, 25kg, 35kg, 50kg, 70kg, 100kg |
| Heating Method: |
Steam, Electric, Gas, LPG Heating |
| Drying Time: |
20-45minutes |
| Control Method: |
Fully Automatic Computer Control |
| Material: |
Stainless Steel |
| Warranty: |
One Year |
| Cloth Type: |
Fabric; Cotton; Nylon; Silk; Fur Coat etc |
| Used For: |
Laundry Plant; Hotel; School; Hospital |
| Packing Specification: |
Packing with Standard Export Wooden |
Product Description
Product description of Industrial clothes dryer machine (HG)
Tumble Dryer
1. Stainless steel drum
2. Selection of temperature and time for easy operation
3. Large door opening for easy loading and unloading
4. High power heat generator,effficient heat exchange
5. Reversing drum
6. Microprocessor control
--Accurate temperature control for unmatched drying accuracy
--Anti-crease cycle for avoiding creasing if the dryer is not unloaded
7.Based control system allows easy change in drying time and temperature
Main Options
.Stainless steel front and/or side and top
.Stainless drum
.Reversing drum
.Heating Model (Gas/LPG/Electric/Steam)
LPG/Gas Dryer
A. Security
B. Automatic temperature control
C. Automatic ignitionAutomatic cut down gas inlet while no flam Huayi brand various models per various heating method(according to customer's requirement):
1. Steam heating
2. Electric heating
3. Gas heating
4.LPG Heating
Specifications | Model |
| Item | Unit | HG(R)-15 | HG(R)-25 | HG(R)-35 | HG(R)-50 | HG(R)-70 | HG(R)-100 |
| Min Washing Capacity | kg | 10 | 20 | 28 | 40 | 55 | 80 |
| Max Washing Capacity | kg | 15 | 25 | 35 | 50 | 70 | 100 |
| Drum Dimension (DxL) | mm | Φ760x650 | Φ960x650 | Φ960x1000 | Φ1200x870 | Φ1280x890 | Φ1500x1100 |
| Drum voluem | L | 295 | 470 | 709 | 983 | 1145 | 1943 |
| Motor Power | kw | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 |
| Fan power | kw | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 2.2 |
| Rated Voltage | V | 110/220/240/380/415/440v |
| Drying time | mins | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 | ≤40 |
| Exhaust diameter | mm | 200 | 200 | 200 | 200 | 200 | 200 |
| Noisy | dB(A) | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| Vibration | mm/s | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 |
| Heating power | kw | 10.8 | 15.5 | 24 | 26.8 | 33 | 39 |
| Gas Pressure | mpa | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 | 0.04-0.05 |
| Consumes of Gas | kg | 1.5 | 2 | 2.5 | 3.5 | 4.5 | 6 |
| Steam Pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Consumes of Steam | kg | 40-50 | 50-60 | 60-70 | 70-80 | 80-100 | 120-150 |
| Dimension(L.W.H) | mm | 840x1100x1620 | 1060x1100x1960 | 1060x1200x1960 | 1310x1500x2200 | 1420x1350x2300 | 1650x1850x2430 |
| Packing size | mm | 1020x1350x2000 | 1420x1220x2060 | 1580x1360x2190 | 1730x1480x2320 | 1790x1500x2430 | 1740x2090x2470 |
| N.W. | kg | 320 | 400 | 450 | 550 | 600 | 1000 |
| G.W. | kg | 400 | 500 | 550 | 700 | 780 | 1200 |

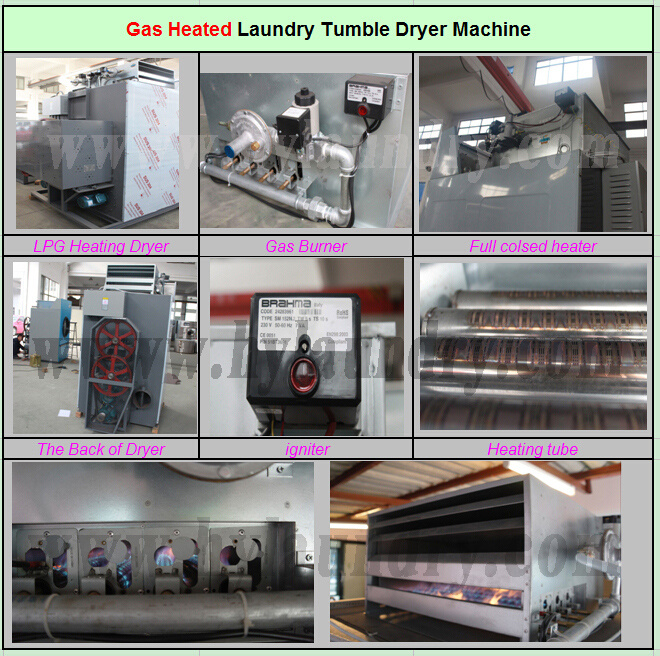

We are a professional Manufacture of commercial laundry equipment ,welcome every friends visiting our factory In Shanghai !Spare Parts of Our LPG Heating Tumble Dryer Machine
Shipping and Delivery In Factory
1.How long have you engaged in this industry?
We have been engaged in this area for more than 20 years.We are a leading manufacturer in Commercial laundry equipment and our products have been exported to customers all over the world such as Australia, southeast Asia, Arab and African.
2.What gives you an unfair advantage?
Our plant works with everything from the raw material to the finished product.
3. How do you ensure quality control?
Three steps,First,our worker,after we finished our product, we wil check it one by one. Then our package department, they will check the items before they start to pack. Third,we have certificates.
We will sincerely for every customers service, sincerely welcome clients from home and abroad to negotiate business, and create a better tomorrow!
For more useful information, please don't hesitate to contact us.We are looking forward to bulid long reationship with you !
Contact Person: Miss Poppy Liu
Mobile:0086-15502184573

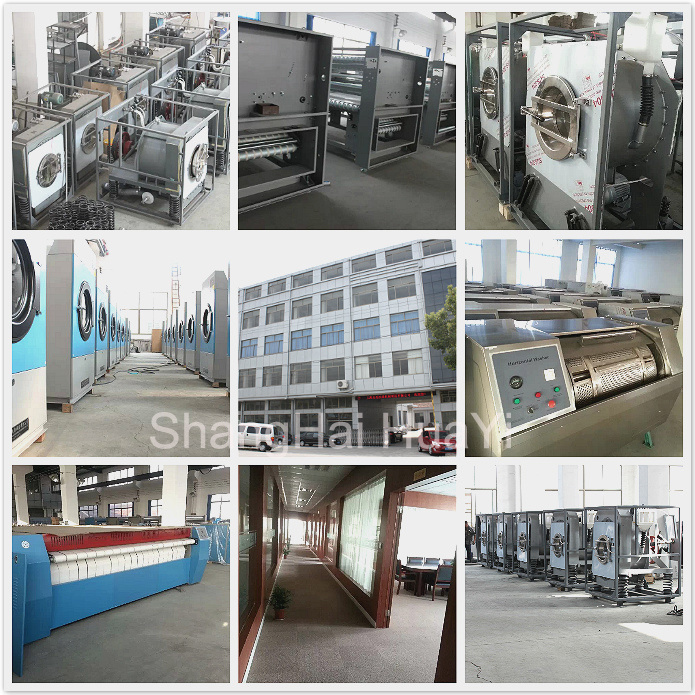

Shanghai HuaYi washing machinery Co., Ltd. Located in Pudong, Shanghai Industrial Development Zone, covers an area of more than 3000 square meters. More than 300 employees, the existing 32 senior technicians, 200 skilled line operators; Have CNC laser cutting machine, CNC plasma cutting machine, CNC flame cutting equipment, CNC sheet metal processing equipment, 500 tons of hydraulic machines and other kinds of production and processing equipment totaled more than 200. Founded have now grown to the park's premier first-class industrial washing equipment manufacturers.
HuaYi company main products include: Dry cleaning machine, industrial washing machine, drying machine, ironing machine and other six types of 60 kinds of specification models
Shanghai HuaYi washing machinery Co., Ltd, Washing solution for integration of professional experts.
