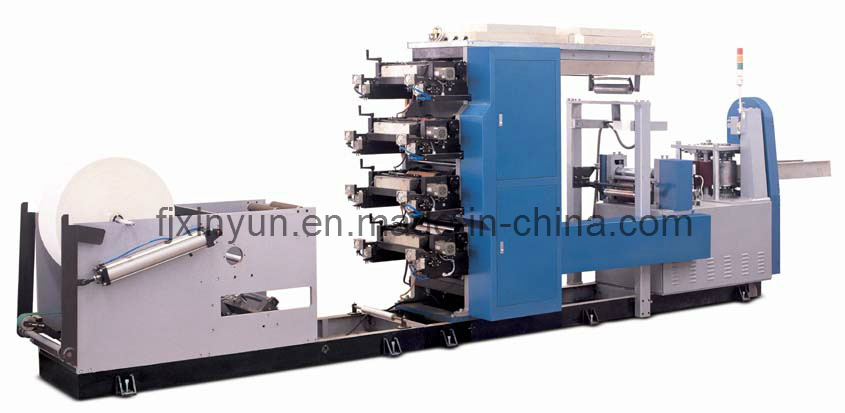

XY-OQ-7000A(180-500) Full-automatic Multi-colors Printing Napkin Paper Making Machine
Description:
XY-OQ-7000A multi-colors napkin paper machine print various kind of colors and design on cut raw material, and to be square and rectangle napkin after embossment, folding and cutting.
Main feature:
1. Adopt flexible printing unit, high precession ceramic anilox roll, making the water ink equally spread and print out extract and stereo pattern.
2. Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossment.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectify system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: Track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.
Technical paremater:
1. Width of raw material: As per the size of finished product.
2. Max. Diameter of raw material: 1200mm
3. Size of finished product: 180-500X180-500
4. Diameter of core: 76mm
5. Thickness of raw material: 2-3 layers, 18-25G/M2.
6. Shape of folding: 1/4 folding(according to the clients)
7. Way of printing; Flexo printing.
8. Material of printing: Water-solubility ink
9. Drying system: Automatic constant temperature
10. Embossing roller: Steel to steel
11. Speed: 400-600 sheets/min
Fujian Xinyun Machinery Development Co., Ltd., established in 1998. We have passed ISO9000 Certification for good quality.
We are a factory dealing specially with the export of daily using paper series equipments.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
All of our products are certified to meet international quality standards and We are producing both standard machines and can provide customize service upon customer's request.
Our machines are export to all over the world, and have got the customers' high appraise.
High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.
Any questions from you are welcome and will be replied in 24 hours.
