Product Specifications
| Prod Model: |
KENO-W104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keno: |
Keno |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Type: |
Automatic Wrapping Machine |
| Packaging Type: |
Cartons |
| Applicable Industry: |
Toy |
| Application: |
Dairy Products |
Product Description

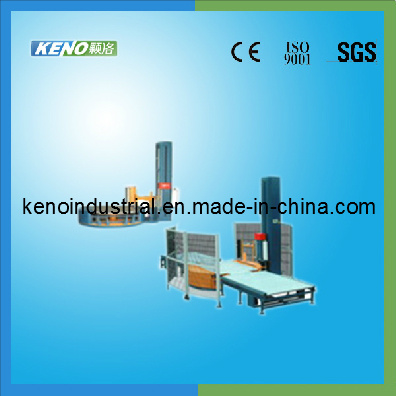

Full automatic on line wrapping machinery
Characteristic andstrong point:
Adopting programmable control (PLC) and screen controller
Equipped with a photoelectric detector, automatically testing the goods height and controlling the travel limit.
Rotary table can reset automatically
Automatic pull on and break film, suitable for unmanned packing system
Special type clamp will not break film
Electricity: AC220V, 1 phase/ 380V, 3 phase, 50Hz
Power: 2.5KW
Air pressure: 4-6kg/cm2
Speed of turntable: Speed: 0-9r/min
Machine dimensions: Turn table DIA. Φ 2000: 3000X2000XH (Commonly 2000, custom-made)
Machine dimensions: Turn table DIA. Φ 1500: 2340X1500XH 2400 (max 3000)turn-table DIA. Φ 1650: 2629X1650XH2400 (max 3000)turn-table DIA. Φ 2000: 2840X2000XH2400 (max 3000)
Turntable dais height: 550mm
Roller diameter: 76mm
Capacity: 2000kg
Pallet size: 1200X1200X2000 Max packing length: (600-1000) X (600-1000)
Packing capacity (piece/hr): 10~20
Machine weight: 1300kg
Gross weight: 1400kg
Machine color: Blue/Yellow or Gray/Blue (Custom-made color is available)
Wooden box size: L3100XW2100XH 1100
Shanghai Keno Industrial Co., Ltd. is an integrated corporation of science research, design, manufacture and sale. We have manufactured all kinds of machinery and materials for many years, such as filling machinery, computerized cutting machinery, printing machinery, labeling machinery, pallet wrapping machinery, heat shrinking wrapping machinery, strapping machinery, PE stretch films, BOPP tapes, PET straps and other related equipment.
Our company was established in 1995 and covers an area of 25000 square meters. Through over 10 years of hard work and development, our production scale has been expanding. We always provide the top quality and the best after-sales service for our customers. Of course, we also ensure our prices are more competitive than prices of other suppliers.
In August of 2000, we attained ISO9001 certification issued by the SGS. We have a strict quality control system. We supervise all the production processes from material purchasing, processing and storage to delivery. By these means, we can ensure the quality of our products. Our quality control is carried out according to the international standard.
Our products are not only very popular in domestic market, but also are exported to Southeast Asia, the Middle East, Europe, South and North America and Africa. As a pioneer in this field, we have accumulated plenty of experience in all aspects of production, sale, and service of packing machinery. If you are interested in any of our products, please feel free to contact us for further information. We sincerely welcome customers from both at home and abroad to cooperate with us to develop friendly and mutually beneficial business relationships.
