Full Automatic Shoe Box Making Machine

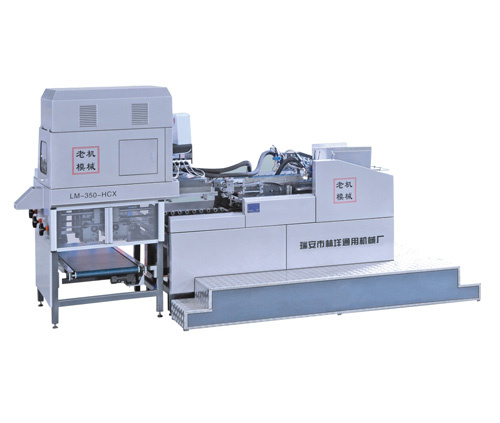

LM-350-HCX model full automatic shoe box pasting forming machine is the newest machine from our factory. It adopts PLC control, touch screen interface, photoelectric tracking system, servo control system and automatic pasting system. It reaches to convey cardboard, pasting, folding , forming and finishing paper box etc each parts of the process. The whole process is finished by machine. The production efficiency and the traditional manual raise more than ten times. it is the preferred equipment for paper box manufacturers.

Characteristic
1. bottom suction pumping automatic roll. Paper feeding accuracy and stability.
2. optical fiber positioning folding and pasting for pasting error in low.
3. paper servo feeding with front-back pasting for reducing the error which the photoelectric eye exposure cardboard. And pasting with more accurate.
4. The front-back pasting adopts eight-shaped glue guns. Paper box pasting with flat and firm.
5. It adopts frequency linkage speed-adjustable for box forming. No separate adjustment for each parts. It saves the time for machine adjustment.
6. It adopts fully enclosed and each section is equipped with security systems. And it is safe for operation.
7. It adopts PLC control, touch screen interface, photoelectric tracking system. It is full automatic box forming at one time.
8. Full automatic troubleshooting function, and the troubleshooting is more convenient.


Technical specification:
A paper sheet min. size: 220mm
A paper sheet max. size:650mm
B paper sheet min. size: 350mm
B paper sheet max. size:700mm
Heat power: 5.5kw
Motor power:4.6kw
Speed: 40PCS/min
Paper box W min. size:120mm
Paper box W max. size:300mm
Paper box L min. size:200mm
Paper box L max. size:350mm
Paper box H min. size:30mm
Paper box H max. size:150mm
Dimension: L4600×W3000×H2400mm
Machine weight: 2500KGS
