Product Specifications
| Prod Model: |
RFC-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: |
Beverage Processing Machinery |
| Model: |
Rfc16/12/6 |
| Rinsing Heads: |
16 |
| Filling Heads: |
12 |
| Capping Heads: |
6 |
| Capacity: |
4000bph |
| Control System: |
PLC |
| Condition: |
New |
| Warranty: |
1 Year |
| Composition: |
Filling Machine |
| Processing Material: |
Cola |
| Process: |
Filling |
Product Description
Specifications

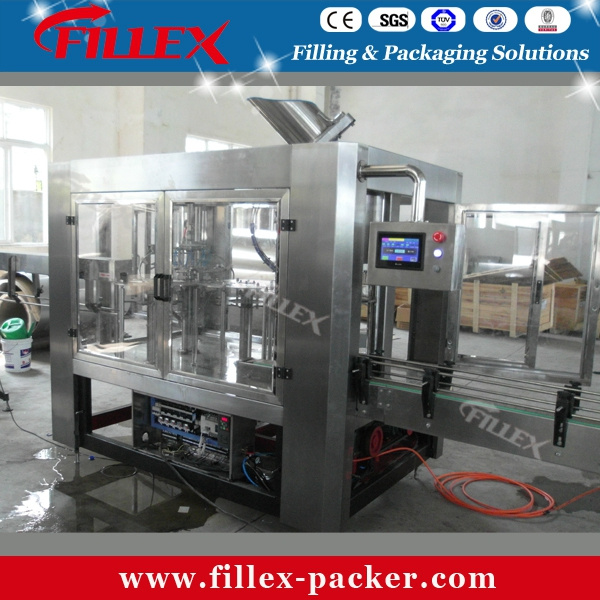

1. Filling carbonated drink beer2. Washing, filling, capping 3-in-13. Automatic in all process machineThis glass bottle beer filling machine is suitable for packing beverage containing gas. Its performance is as following: All parts, for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation.Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.Using programmable controller to realize fully automatic control from bottles entering to finishing packing. Using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting equal pressure filling principle and current spring valves in order to assure beverage quality. Using advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping qualityFull-automatic three-in-one beverage machinery
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.
3. Advanced programmable PLC is equipped to control the main machine.
4. The speed of filling is fast and the liquid amount is cintrolled accurately.
5. All spare parts that may touch with water are made from high-quality stainless steel.
| Type | RFC16/12/6 | RFC18/18/6 | RFC24/24/8 | RFC32/32/10 | RFC40/40/12 | RFC50/50/12 | RFC60/60/15 |
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Filling heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Capping haads | 5 | 6 | 8 | 10 | 12 | 12 | 15 |
Capacity
Base on 500ml | 4000bph | 6000bph | 8000bph | 12000bph | 16000bph | 20000bph | 24000bph
|
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
L1-2 & 3-5 Gallon Jar Bottle Water Plant
LBottle, Kind of Container Labeling Solutions
LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
