Product Specifications
| Prod Model: |
CIL-SP-A-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Process: |
Finishing Process Machine |
| Usage: |
Household Paper Machine |
| Automatic Grade: |
Automatic |
| Computerized: |
Yes |
| Certification: |
CE |
| Type: |
Paper Embossing Machine |
Product Description

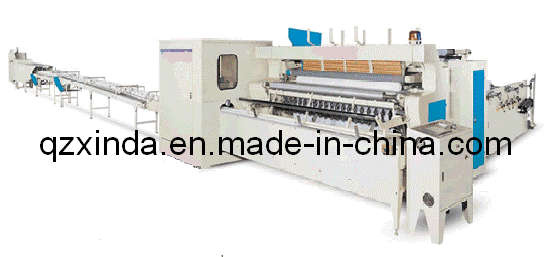

CIL-SP-A-B Full-automatic towel paper production line
CIL-SP-A-B Full-automatic towel paper production line is a full-automatic production line, which composed of one set of CIL-SP-92A/75A Full-automatic high-speed rewinding and perforated toilet paper and towel paper machine (it can be two sets according to requirement), one set of CIL-ZH-280 roll paper cutting machine, one set of CIL-ZH-398 multi-rolls packaging machine and convey belt.
A. For paper width up to 2700mm to make bathroom tissue, kitchen towels. Equipped with variable perforation length system to satisfy any length need. The speed of this
Rewinder is up to 325m/min, 6 cycles per minute, including:
Δ Two steel roller to rubber roller or steel roller to wool roller embossing units.
Δ Two backstands, with a double belt driving system, for jumbo rolls up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.
B. This CIL-SP-A-A Economical line will automatically change core and eject the paper roll, and trim automatically, spray glue on paper roll.
C. Automatic glue to laminate two ply together.
D. All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
E. The main motor power is 7.5kW. Variable frequency control depending on the final specifications and requirements.
E\This line is to be controlled by a PLC of your choice.
CIL-SP-A-B
Width of raw material 1500mm--2700mm
Outside diameter of raw material Max. Φ 1500mm
Inner diameter of core of raw material Φ 3"(76mm) or requested
By customer
Machine speed 0-325m/min(depending on
Model)
Operation speed 0-300m/min,
Outside diameter of finished product Toilet paper roll: Φ 80-150mm
Outside diameter of finished product Towel paper
Distance for perforation Variable, any size needed
Sheet count Increments of one sheet
Inner diameter of core of finished product Φ 25-80mm
Quality of raw material 1or 2 ply, 15-45g
Installed power 7.5Kw~15Kw
*Please point other specifications.
