Product Specifications
| Prod Model: |
301s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Full Automatic Volute Sludge Dewatering Machinery |
| Type: |
301s |
| Ds Standard Handing Capacity: |
30kg/H-50kg/H |
| The Distance To The Ground: |
495mm |
| Net Weight: |
820kg |
| Certificate: |
CE, SGS |
| Service Life: |
>15 Years |
| Machine Material: |
Stainless Steel 304 |
| Warranty Time: |
2 Years |
| Method: |
Physical Treatment |
| Usage: |
Beverage |
Product Description
1.Machine Description:

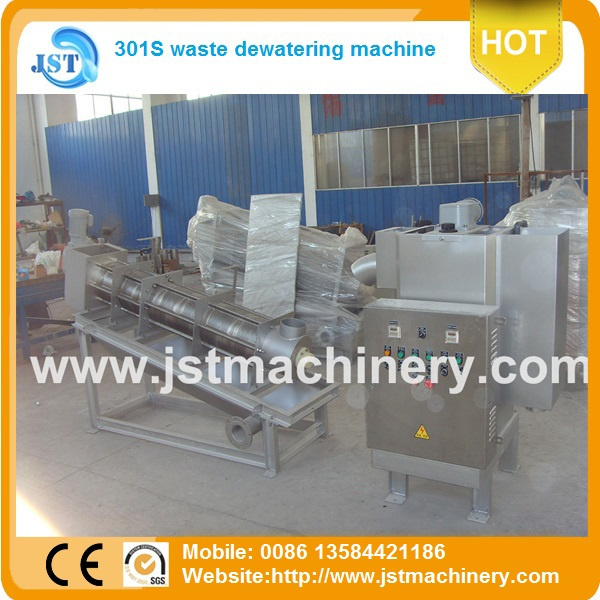

Full automatic volute sludge dewatering machinery made in China
1).Sludge dewatering ？equipment？301S
2).DS standard capacity :30kg/h --50kg/h
3).No secondary pollution？
4).Operation costs can be saved
Full automatic volute sludge dewatering machinery which uses the screw extrusion principle is a new type of solid-liquid separation device. It reaches the goal of extrusion dewatering sludge by the powerful extrusion pressure of changing the screw diameter and distance, and the tiny spacing between moveable annular plates and fixed annular plates.
2.Structure Principle :？
The main body of full automatic volute sludge dewatering machinery？is made of multiple fixed annular plates and moveable annular plates with the screw shaft running through it. The front part is thickening department and the ending part is dewatering department. It can thicken and dewater sludge in one box, and has taken place of the traditional filter clothes and centrifugal filtration method for its distinctive filter model.
3.Dewatering theory :？
Sludge will be transported to the dewatering department after being thickened in the thickening department. In the advancing process, great pressure has been produced because of the gradually decreasing filter spacing and screw distance, and the back platen clogging. Then the volume decreases continuously, and the purpose of fully dewatering will be achieved.
4.Process Flow Diagram:
|
Model |
DS standard handing capacity |
Sludge handling capacity |
Low concentration =>
high concentration |
2000mg/L |
5000mg/L |
10000mg/L |
20000mg/L |
25000mg/L |
50000mg/L |
|
202S |
~18kg/h |
~30kg/h |
~9m³/h |
~3.6m³/h |
~3m³/h |
~1.5m³/h |
~1.2m³/h |
~0.6m³/h |
|
Model |
Screw shaft specification |
The mud cake discharge outlet
(The distance to the ground) (mm) |
Machine size(mm) |
Net weight |
Operating weight |
|
Length |
Width |
Height |
|
202S |
Φ200´2 |
350 |
2500 |
935 |
1270 |
470kg |
680kg |
Zhangjiagang JST Machinery Co., Ltd. Was founded in 1995, starting with the beverage machinery. We are located in Leyu Industrial Town, Zhangjiagang City. We devote ourselves to the development, research and production of liquid food and beverage packing and filling products.
Our main products include: Mineral water and purified water producing lines, carbonated beverage producing lines, 3-gallon & 5-gallon producing lines, oil filling lines and so on.
We have many clients, such as: Tanzania, Bolivia, Brunei, Albania and Suriname, Iraq, and so on.
We welcome clients to inquire for more information.
