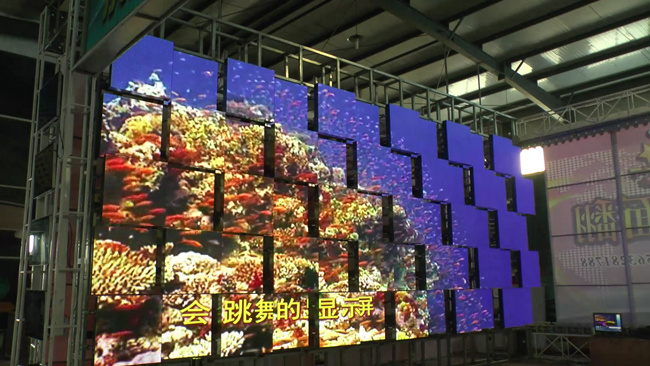

Full Color High Light LED Dancing Screen Display

Product Specifications

Prod Model:	HHGD-122
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	10mm
Pixel Configuration:	1R,1G,1B
Pixel Density:	10,000 dots / m²
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP60
Certification:	CE

Product Description

led screen,moving led screen,led video wall,building surface glass window led video wall, led wall screen, led light decoration video wall,
LED video ceiling,LED disco ceiling,indoor LED video ceiling,outdoor LED video ceiling,shopping mall LED video ceiling,shopping mall LED video wall,2015 revolutionary LED video oled screen wall price

LED Ceiling or LED Canopy is a huge full color led display installed in the ceiling of indoor commercial street,integrating sound, light and electricity technology.

Pixel Pitch: P10, P18, P25, P32, P45, P80

P80 Specifications							sample size	77.1m(L)x22.6m(W)=1742.46m²
Pixel Pitch(mm)	80mm			pixel density (pixel/m² )			156 pixels/ m2
average power consumption(W/m2)		30 W/m2				maximum power consumption(W/m2)			50W/m2
Horizontal Viewing Angle			140°(+70/-70)
Vertical Viewing Angle			60°(+30/-30)
Working Humidity			10%-90% RH
Working Temperature			-30°C~+50°C
Minimum Viewing Distance			10m
Color Gamut			1.7billion
Gray Scale Level			4096 levels
Brightness adjustment			100levels
Frame Rate			>60HZ
Refresh Rate			>300HZ
Power Supply			AC220V/50HZ
Blind spot rate			<0.0001
Earth leakage current			<2mA
Scanning			static
Control			Synchronous with computer monitor
Signal Connection			CAT5 UTP cable transmission
Operating System			WINDOWS(98,2000,XP,Vista)
Signal Format(with video processor)			VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV
Control Distance			GB(National Standard) cable transmission distance:100m
			Multimode fiber transmission distance:500m
			Singlemode fiber transmission distance:10km
